T-Motor AM480 combo/ kv600 brushless motor set

T-Motor Combo include AM480+AM66A+AM link+T13x6.5x2,s
specialized for 3D 45-52” planes

Reign Over 6S 3D Performance: T-Motor AM480 600KV Power Combo

Step up to the uncompromising efficiency and raw authority of a 6S setup. The T-Motor AM480 600KV Power Combo is the definitive, high-voltage power system engineered specifically for 48" to 52" 3D aerobatic aircraft (typically 1130mm–1320mm wingspan). By dropping the KV and raising the cell count, this combo delivers ballistic vertical punch, vastly improved thermal efficiency, and longer flight times without sacrificing an ounce of torque.

This plug-and-play system pairs T-Motor's premium 600KV brushless motor with a perfectly tuned, high-voltage BLHeli_32 ESC, a telemetry module, and matching carbon-polymer props—giving you a fully synchronized, worry-free installation.

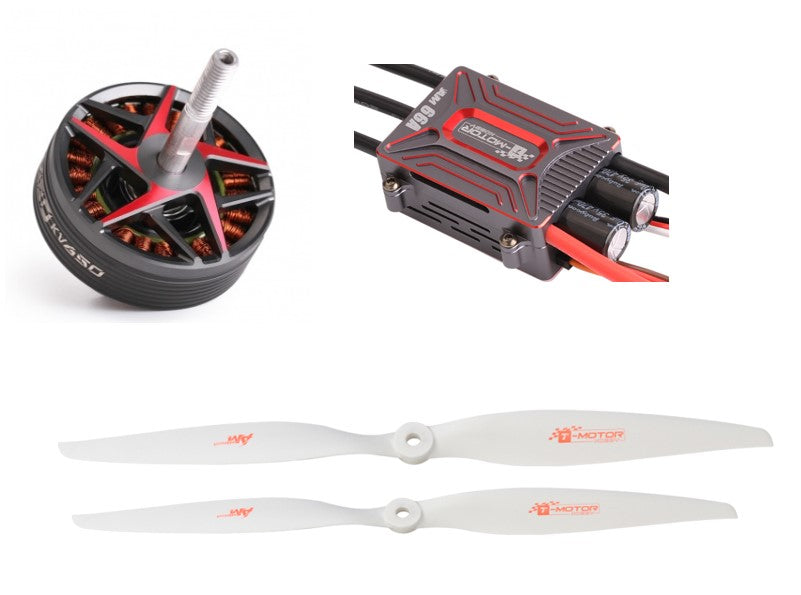

What’s in the Box?

• AM480 (600KV) Brushless Motor: Optimized for high-voltage, high-efficiency 6S operation.

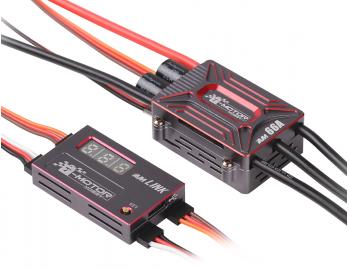

• AM66A 3D ESC: Multi-cell compatible speed controller with an adjustable, high-output BEC.

• AM Link Module: Your real-time flight telemetry bridge.

• T13x6.5 Carbon-Polymer Propeller: Rigid, quiet, and perfectly loaded for 6S power.

Key Performance Features

The 6S Efficiency Advantage

By shifting from a traditional 4S setup to a 6S LiPo configuration, this 600KV combo unlocks a massive jump in electrical efficiency. Because it operates at a higher voltage, it pulls significantly less current (amps) to produce the same jaw-dropping wattage. Less current means cooler batteries, reduced sag under heavy load, and noticeably longer 3D flight times on the same capacity.

Uncompromising Torque & Vertical Punch

Don't let the lower KV fool you. When backed by 6S voltage, the AM480 600KV motor delivers exceptional torque-to-weight performance. It handles heavy-load 3D maneuvers—like low-altitude harriers, torque rolls, and aggressive pop-tops—with an iron-clad grip and instantaneous recovery power.

Superior Thermal Engineering

Aggressive 3D flight generates heat, but the AM480 is built to beat it. Featuring a unique rippled outer bell that acts as a highly efficient heat sink, it sheds thermal energy rapidly. Weighing just 145g, its lightweight frame and hollow steel shaft ensure you aren't carrying an ounce of dead weight through your snaps and tumbles.

Ultra-Responsive BLHeli_32 Control

The included AM66A ESC utilizes a powerful 32-bit MCU to track and execute your throttle movements instantly. Pre-tuned with Damped Light Mode (regenerative braking), the motor decelerates as crisply as it accelerates, providing that ultra-precise, locked-in throttle feel necessary for technical, down-on-the-deck 3D piloting.

Beastly High-Voltage BEC

High-performance 3D planes demand fast, power-hungry servos. The ESC's integrated 10A continuous / 20A burst BEC easily handles the load, allowing you to select between 5.8V, 7.4V, or 8.2V to feed your high-voltage micro servos all the clean, uninterrupted power they need.

Live Flight Data via AM Link

Never fly blind again. The included AM Link module taps directly into the ESC's brain, transmitting critical telemetry—including real-time pack voltage, current draw, ESC temperatures, and motor RPM—straight to your compatible radio transmitter.

Rigid, Anti-Flex T13x6.5 Propeller

Engineered to handle high-voltage torque, the T13x6.5 propeller combines polymer with carbon fiber for maximum stiffness. The hub features anti-slip teeth to prevent slipping during sudden throttle punches, while the advanced blade profile minimizes loud propeller drone, converting raw motor power into pure, silent thrust.
