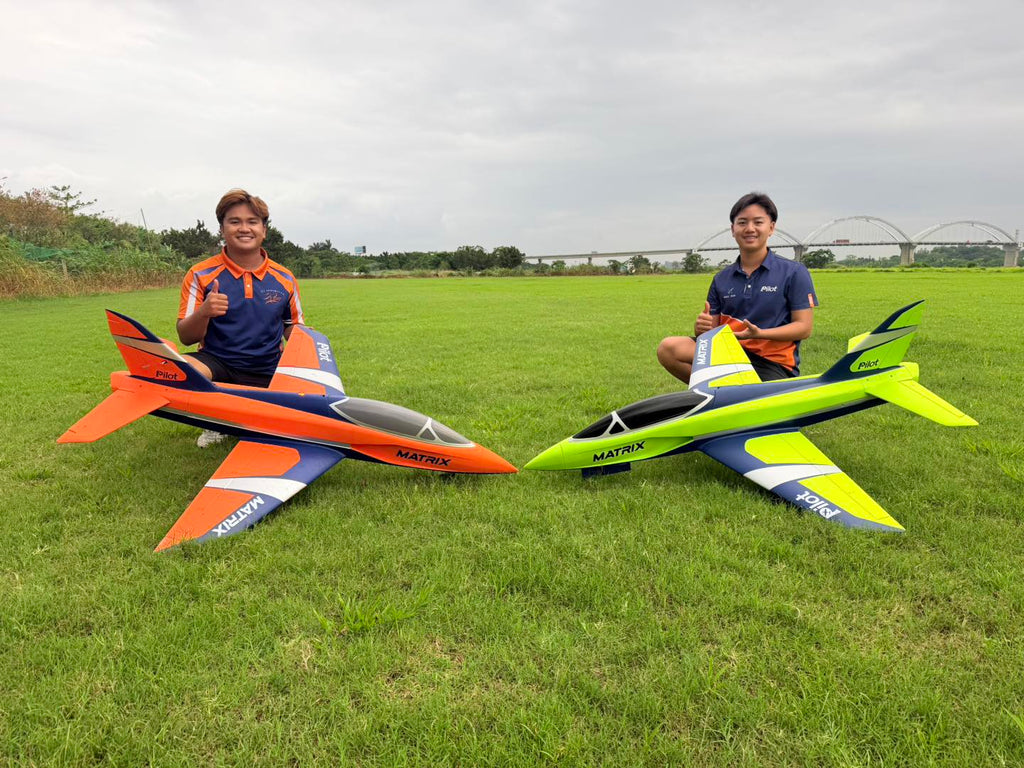

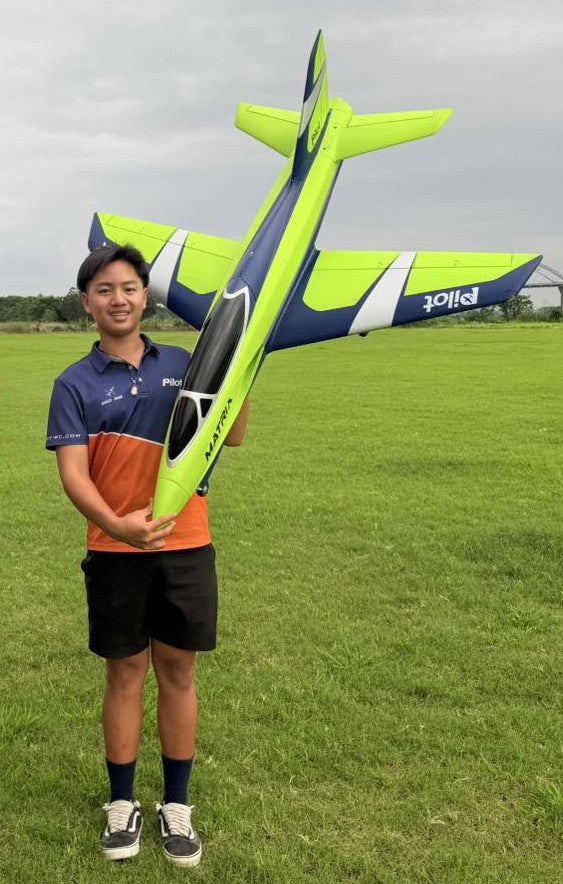

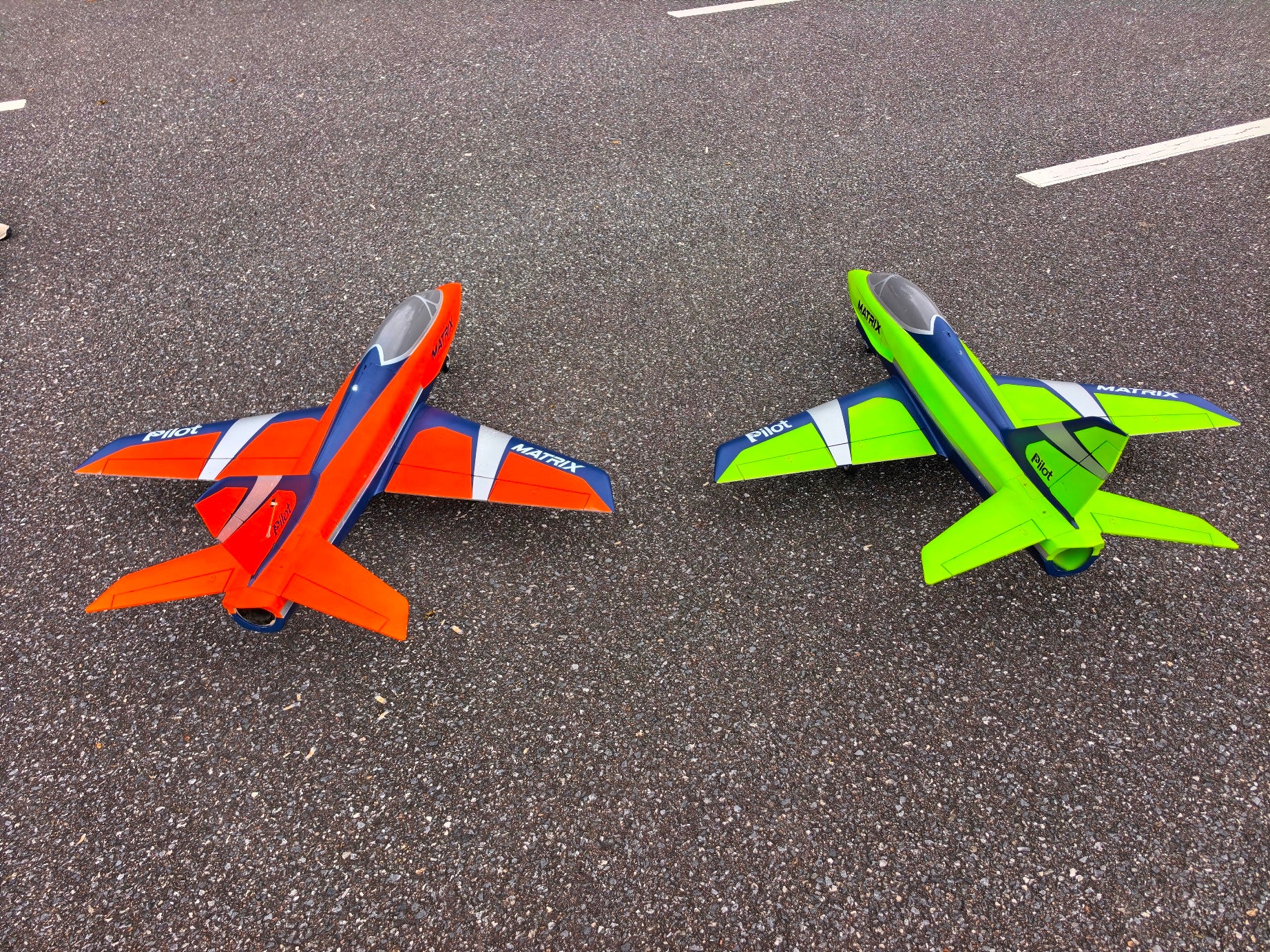

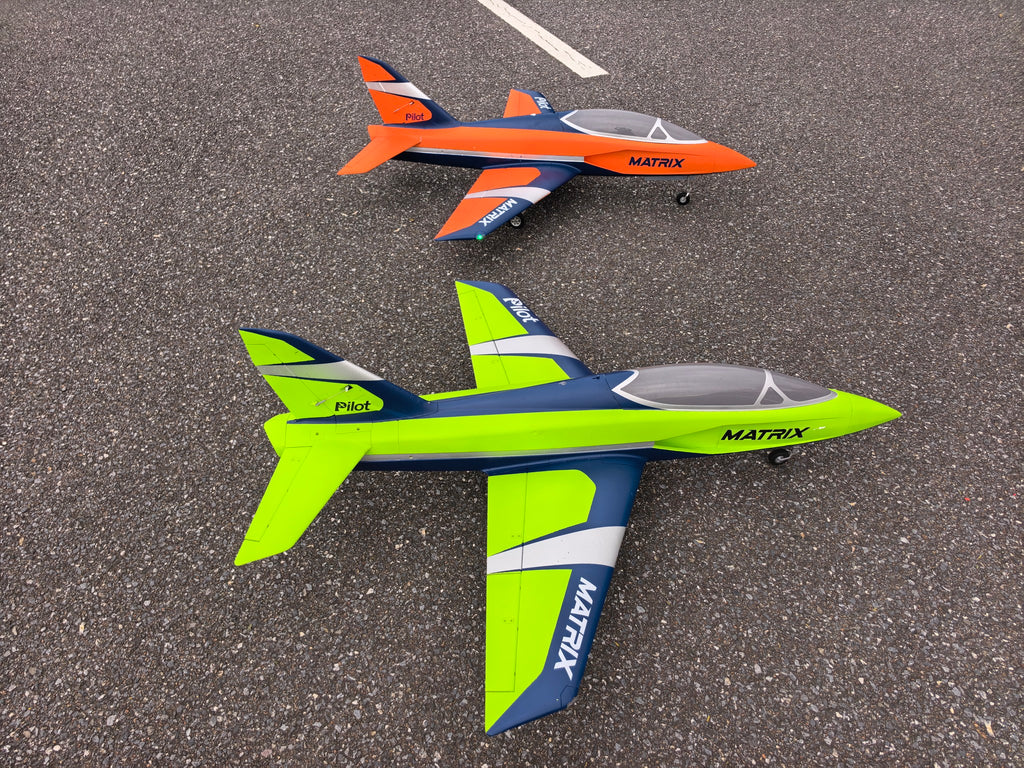

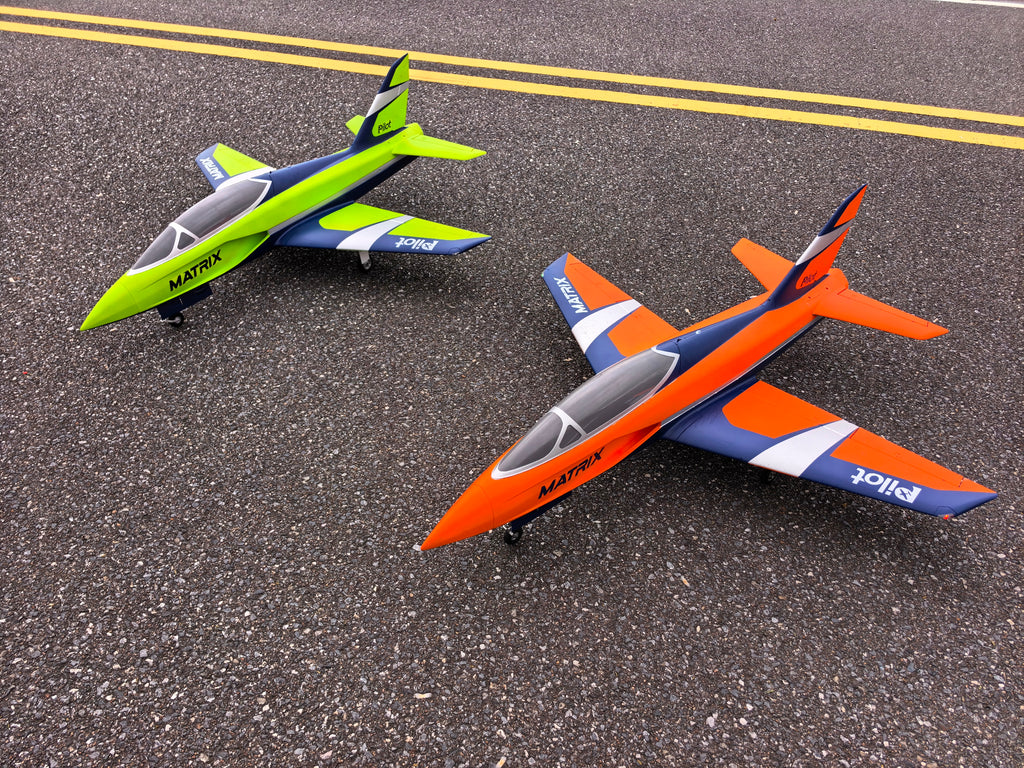

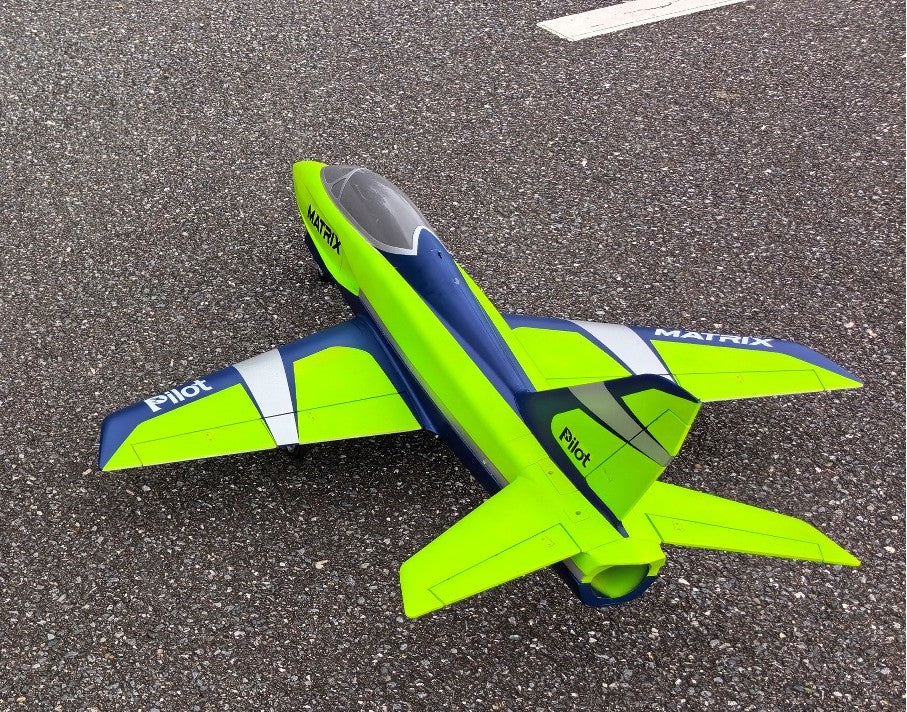

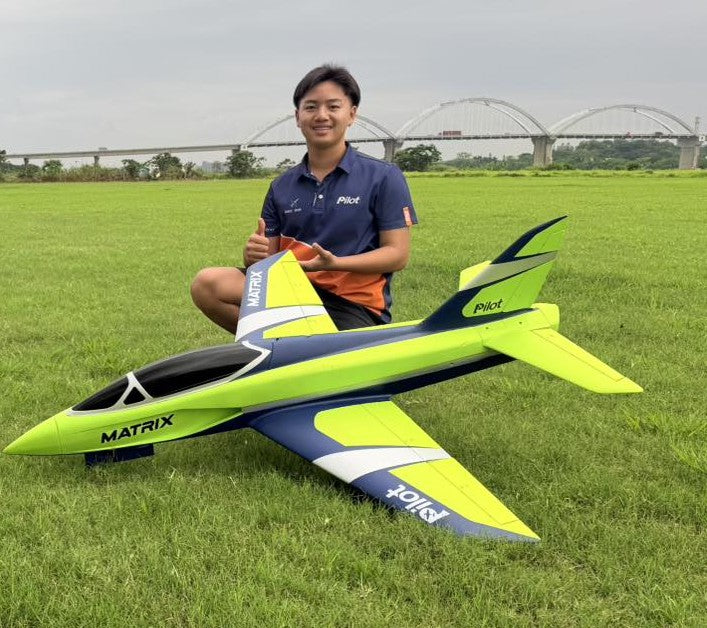

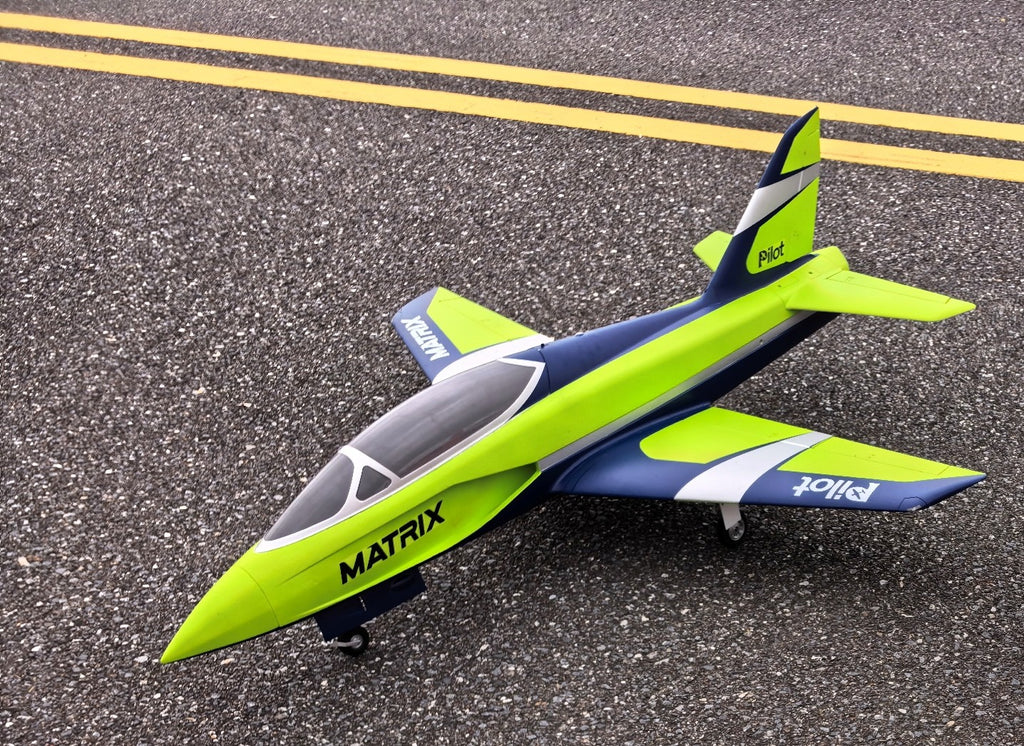

Pilot-RC Matrix 90mm Foam Jet – The Ultimate Versatile Performer

Experience the cutting-edge of foam jet technology with the new Pilot-RC Matrix 90mm. Designed for unparalleled flight characteristics and incredible versatility, this jet is engineered to satisfy everyone from the sport flyer to the extreme aerobatic enthusiast. Whether you prefer the simplicity of EDF or the raw power of a Turbine, the Matrix is ready for you.

Dimensions

• Wingspan: 1.30 m (1300 mm)
• Fuselage Length: 1.45 m (1450 mm)

Weight

EDF Configuration

• Flying Weight (with 6S 5200 mAh battery): approx. 3300–3500 g

Turbine Configuration

• Recommended Turbine: X45 class turbine
• Dry Weight (without fuel): approx. 3.5 kg

Turbine Setup

• Designed for:
  • X45 turbine installation
  • Fuel-powered jet configuration

Recommended Applications

• Sport jet flying
• High-speed aerobatics
• EDF and turbine conversion projects

Construction Features

• Compact high-performance jet platform
• Turbine-ready fuselage layout
• Optimized size for transport and field assembly

Estimated Flight Class

• Mid-size RC jet category
• Suitable for experienced EDF and turbine pilots

Key Performance Features

The Matrix is built to perform brilliantly regardless of your chosen setup. Choose the way you want to fly:

• EDF PNP (6S): The standard high-performance electric setup.

• 8S Upgrade: Available for those seeking extra speed and vertical punch.

• Vector Thrust: Optional upgrade for jaw-dropping 3D maneuvers.

• Turbine Ready: A dedicated conversion kit allows you to transform this foam jet into a true kerosene-burning powerhouse.

Version Options

1. PNP (Plug-and-Play) 6S Version

The complete package for the electric pilot. Just add your receiver and battery.

• Pre-installed: High-quality servos and retractable landing gear.

• Power System: High-efficiency 90mm EDF unit.

• ESC: 130A (6S) with Reverse-Brake function and ESC forwarding programming.

• Advanced Telemetry: Supports SBUS2, EX BUS, SRXL2, and CRSF. Monitor real-time data including battery voltage, current, power consumption, ESC/Motor temperature, BEC current, and RPM.

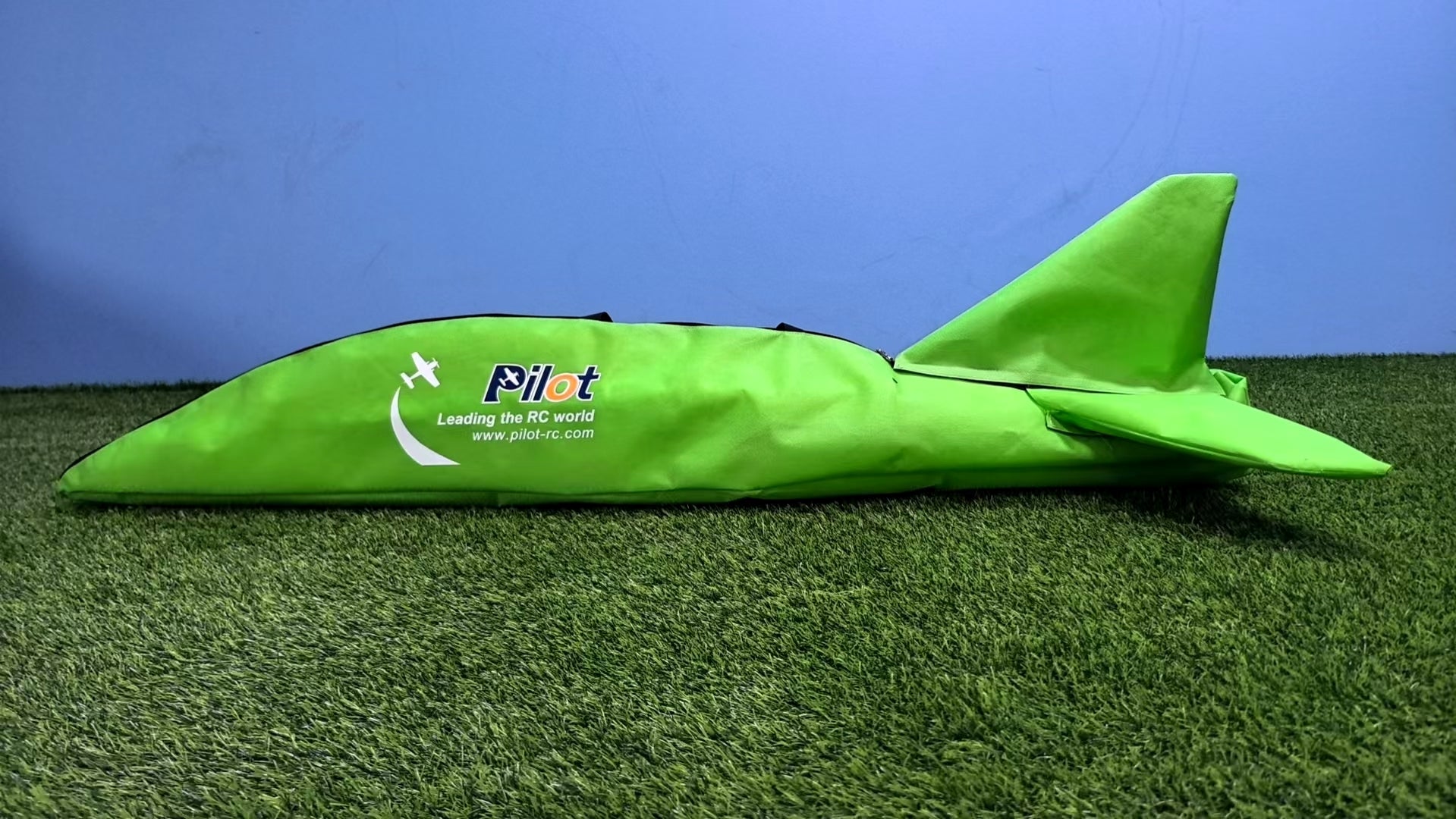

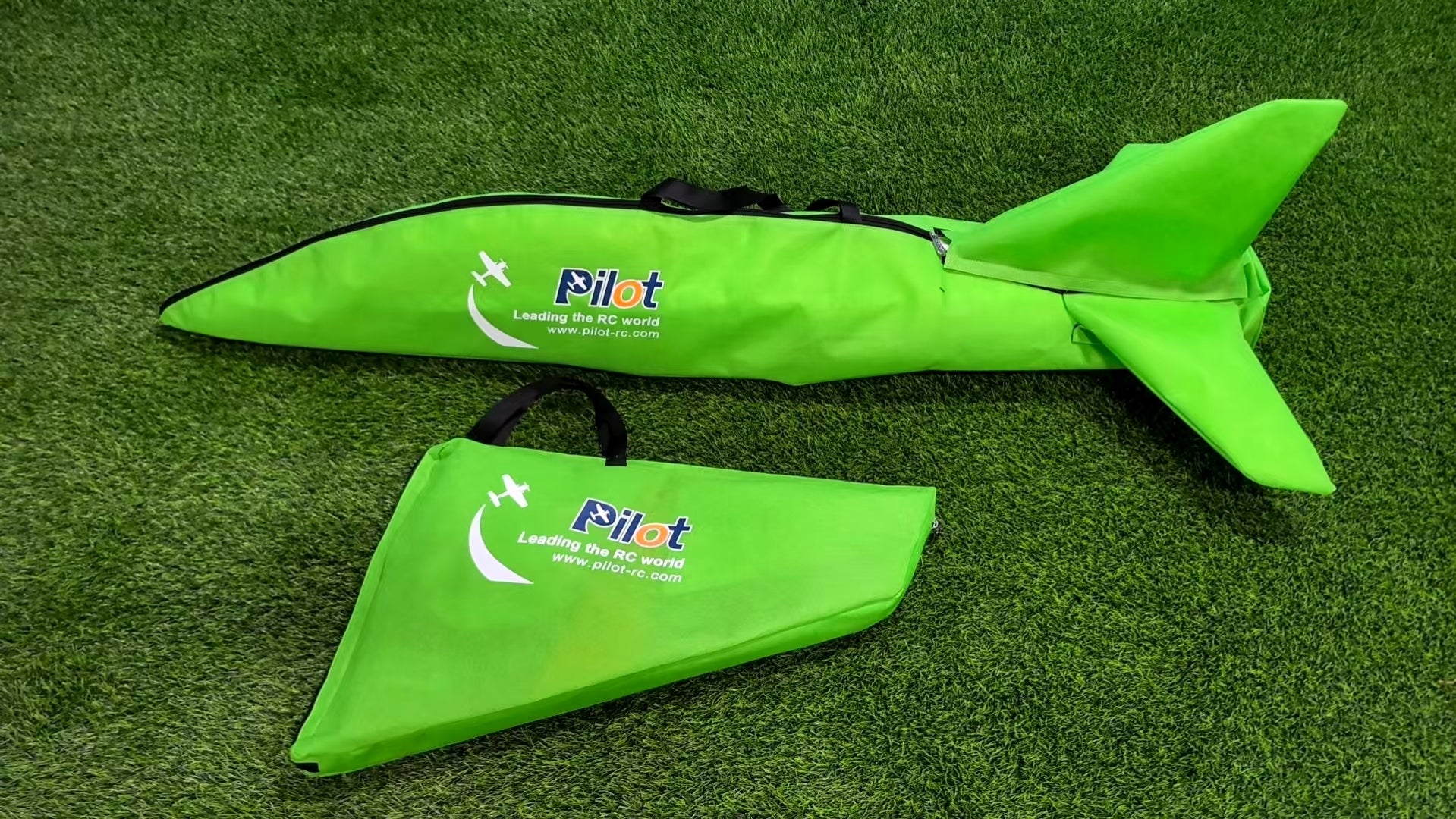

• Included Extra: High-quality wing bags for safe transport.

2. Motor Ready Version

For the pilot who wants to choose their own power system.

• Included: Pre-installed servos and retractable landing gear.

• Included Extra: High-quality wing bags.

• (Note: Does not include ESC or EDF unit).

Turbine Conversion Kits

Turn your Matrix into a foam turbine jet with our comprehensive conversion kits. Both kits include an E-brake wheel system, controller, 6V BEC, 780ml fuel bag, turbine mounting plate, and precut heat-resistant shielding.

• Normal Tail Pipe Version: Includes a high-flow standard tail pipe for traditional jet performance.

• Vector Tail Pipe Version: Includes a full vector thrust pipe for advanced aerobatics and 3D flight.

Technical Specifications at a Glance

Expert Tip: If you are planning the Turbine conversion, we recommend the Vector Tail

Pipe version to truly explore the unique flight envelope of the Matrix!

• Vector Tail Pipe for Pilot rc Matrix EDF: Includes a full vector thrust pipe for advanced aerobatics and 3D flight. order HERE
