3D/Hover Performance Package for 90mm EDF Matrix

Transform your 90mm EDF Matrix into a high-performance 3D and hovering machine with this official upgrade package. Combining extreme thrust from an 8S-capable metal EDF unit with 2-axis thrust vectoring, this kit gives you the power and control needed for hovers, flat spins, and high-alpha maneuvers.

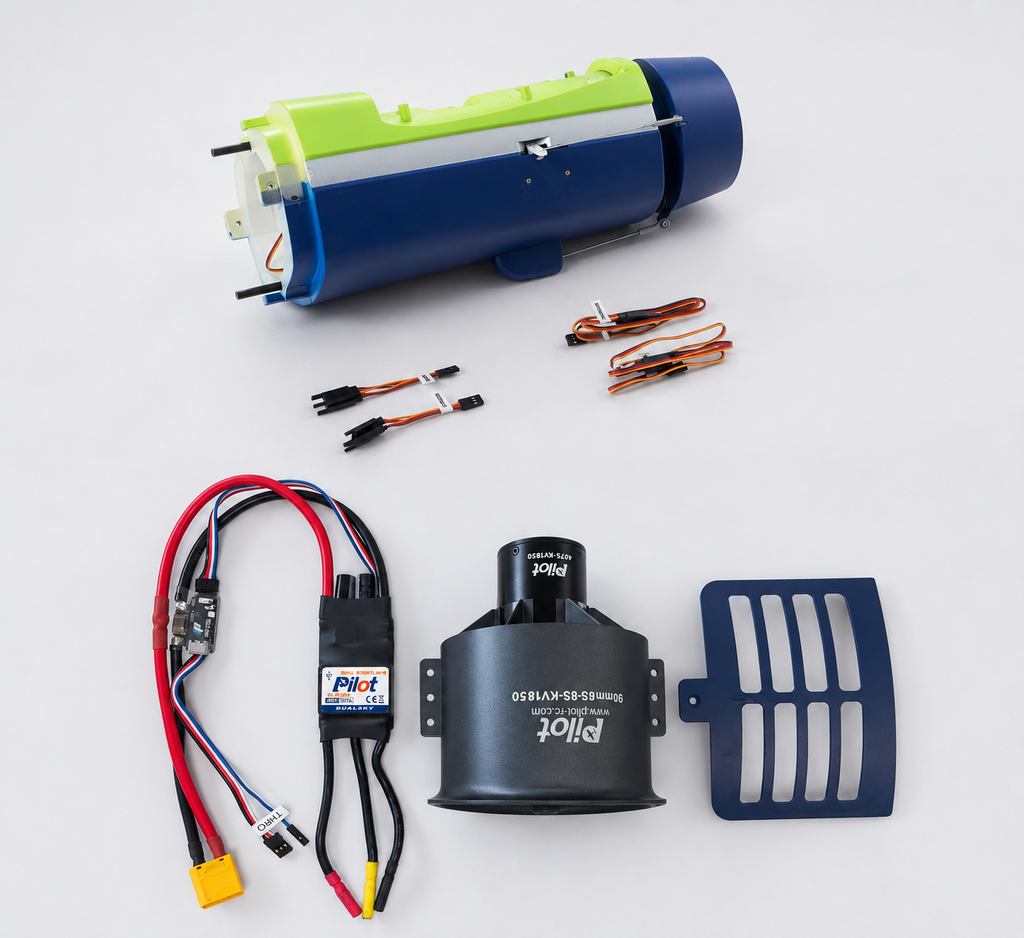

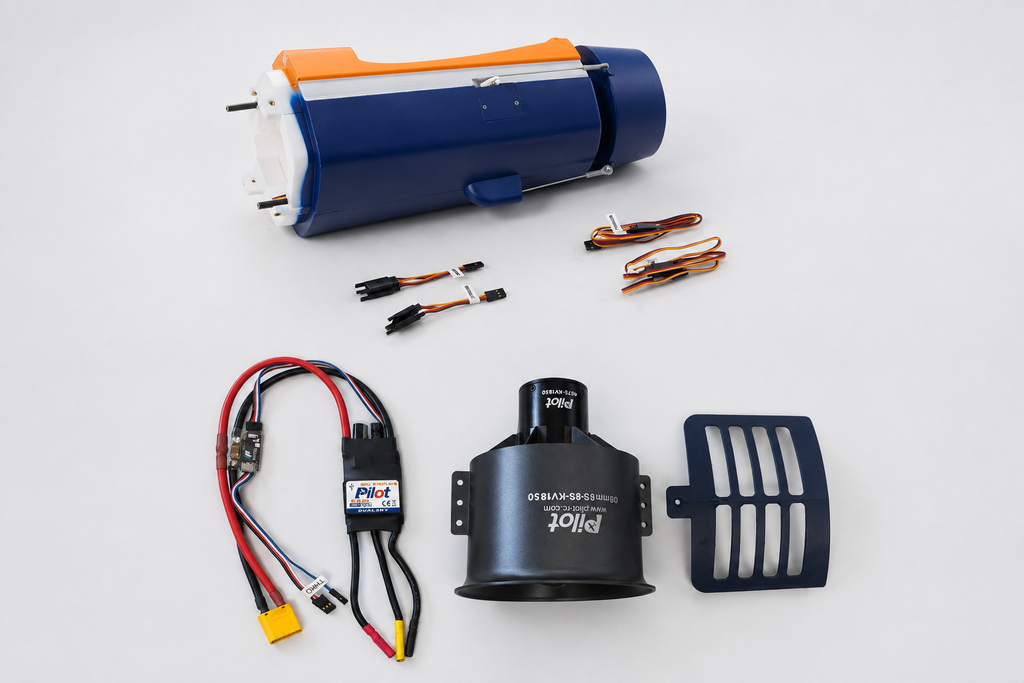

What's Included in the Package:

• Vector Thrust Rear Fuselage: Complete rear fuselage section featuring a 2-axis vector tail nozzle and pre-installed vector servos.

• High-Power 90mm Metal EDF: 12-blade aluminum ducted fan paired with a powerful 4075-KV1850 inrunner motor (6S–8S compatible).

• 130A Telemetry ESC: P13OTLM-8 130A brushless ESC (up to 8S) with real-time telemetry output.

• High-Flow Air Intake Bottom Cover: Custom painted bottom intake cover designed to maximize airflow to the EDF and cooling for the electronics.

Critical Operational Note & Warranty Disclaimer:

When installed in a "Motor-Ready" version airframe to enable full 3D/Hover capabilities, real-time telemetry monitoring is mandatory:

WARNING: You must set an active telemetry temperature alarm on your transmitter for the ESC. Maintain ESC operating temperatures below 140°C at all times during flight to prevent thermal overload, motor damage, or ESC failure.

Due to the extreme thermal demands of high-alpha and 3D hovering, this performance package is supplied without warranty when installed in Motor-Ready airframes.
