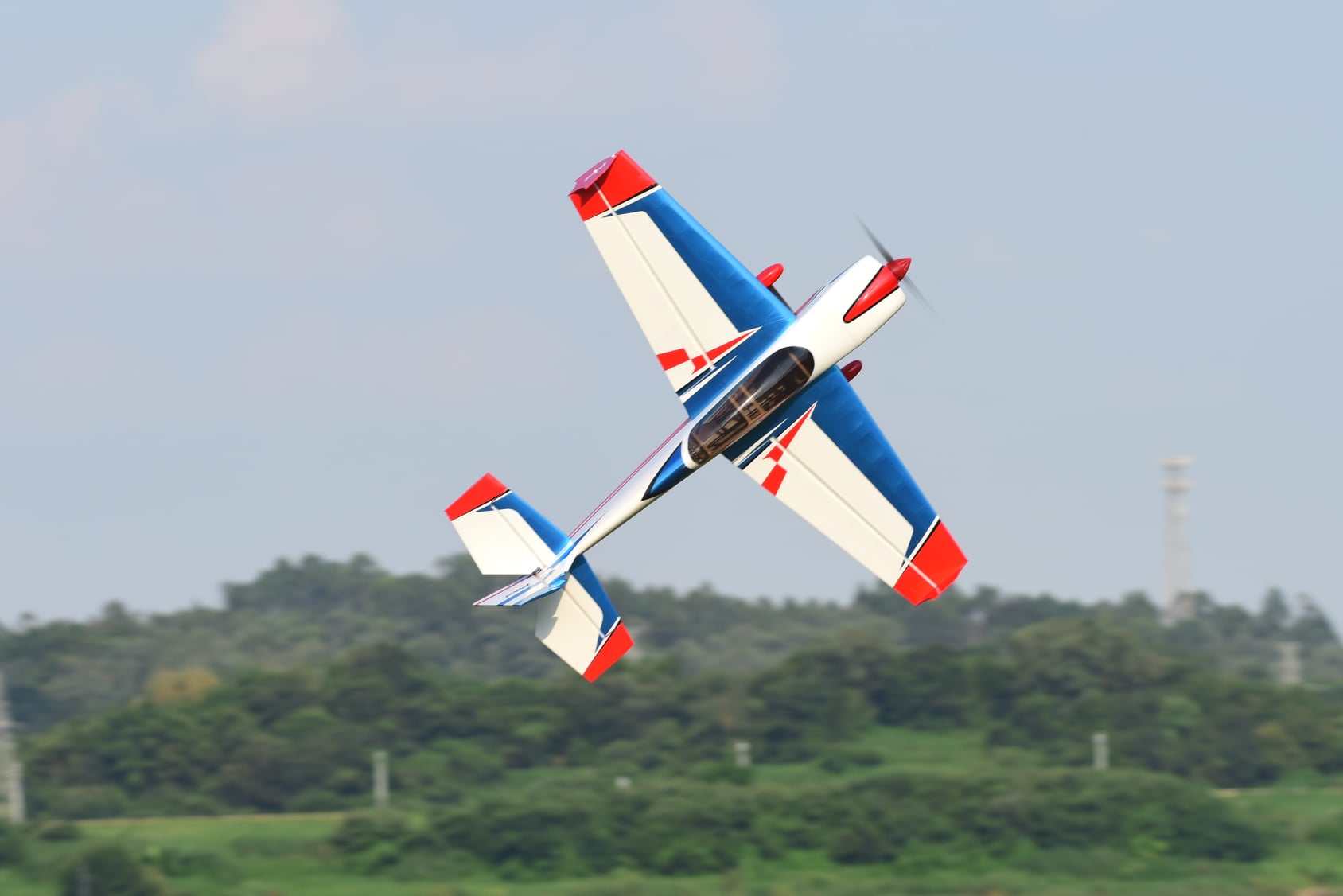

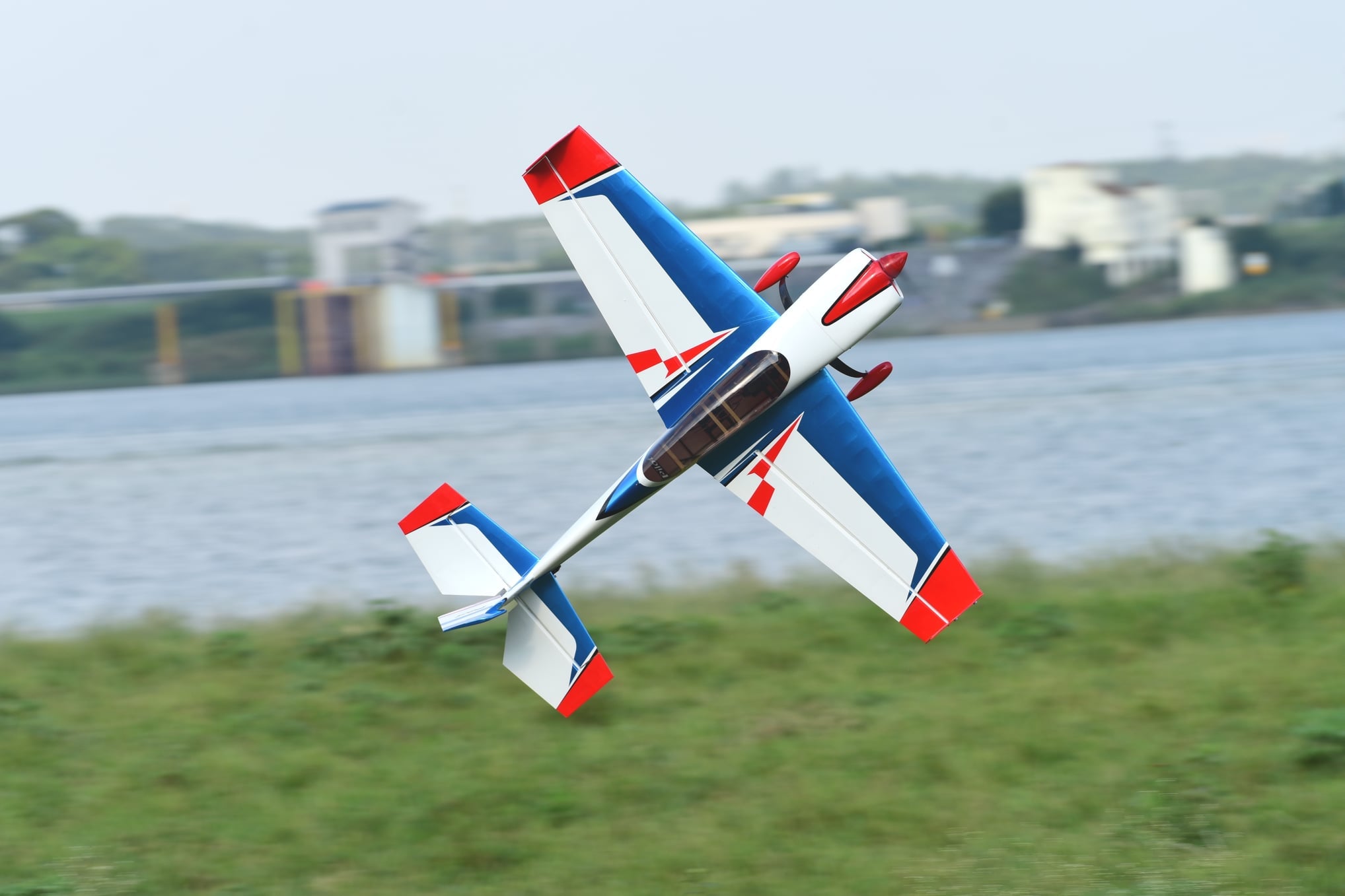

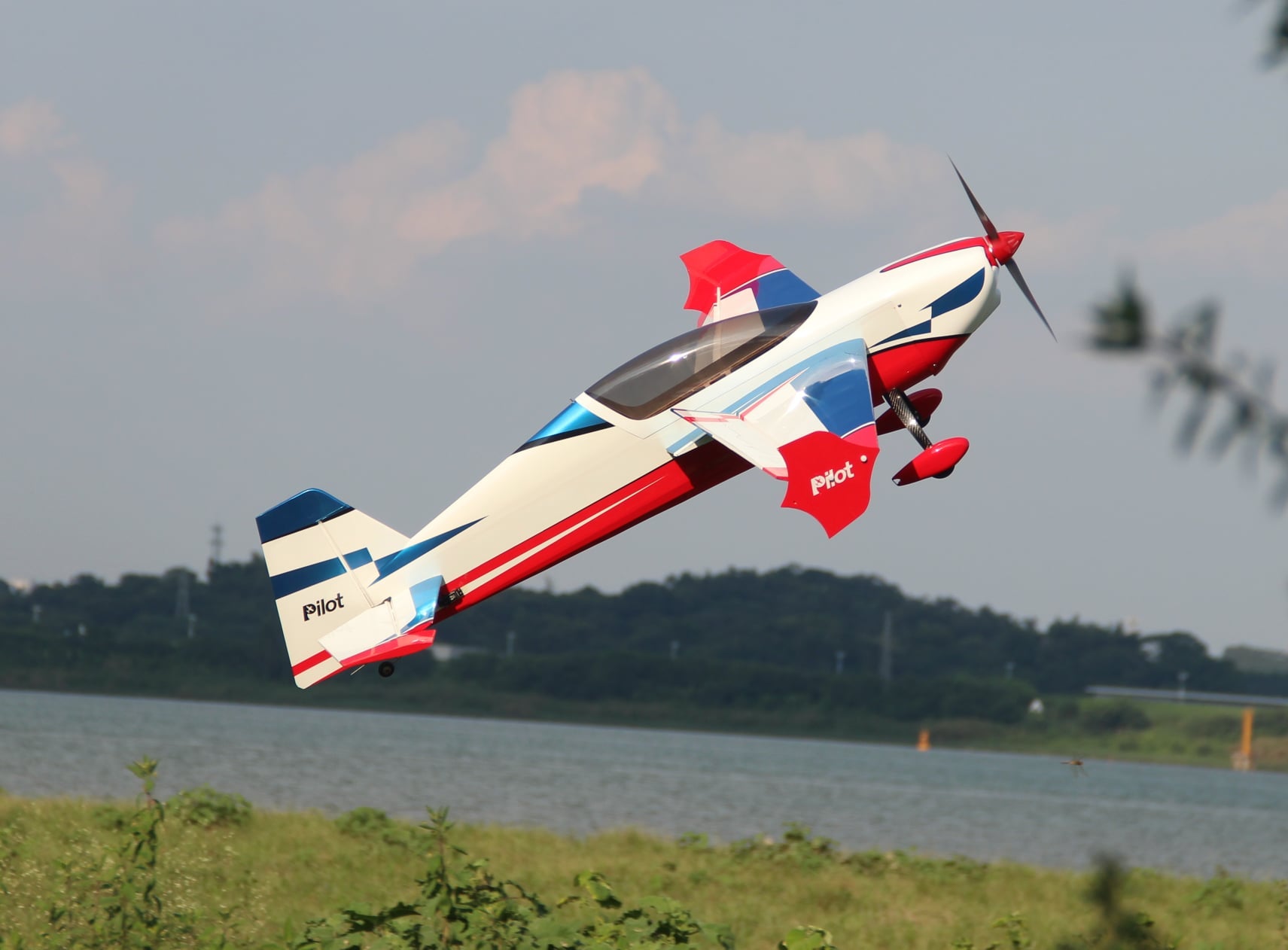

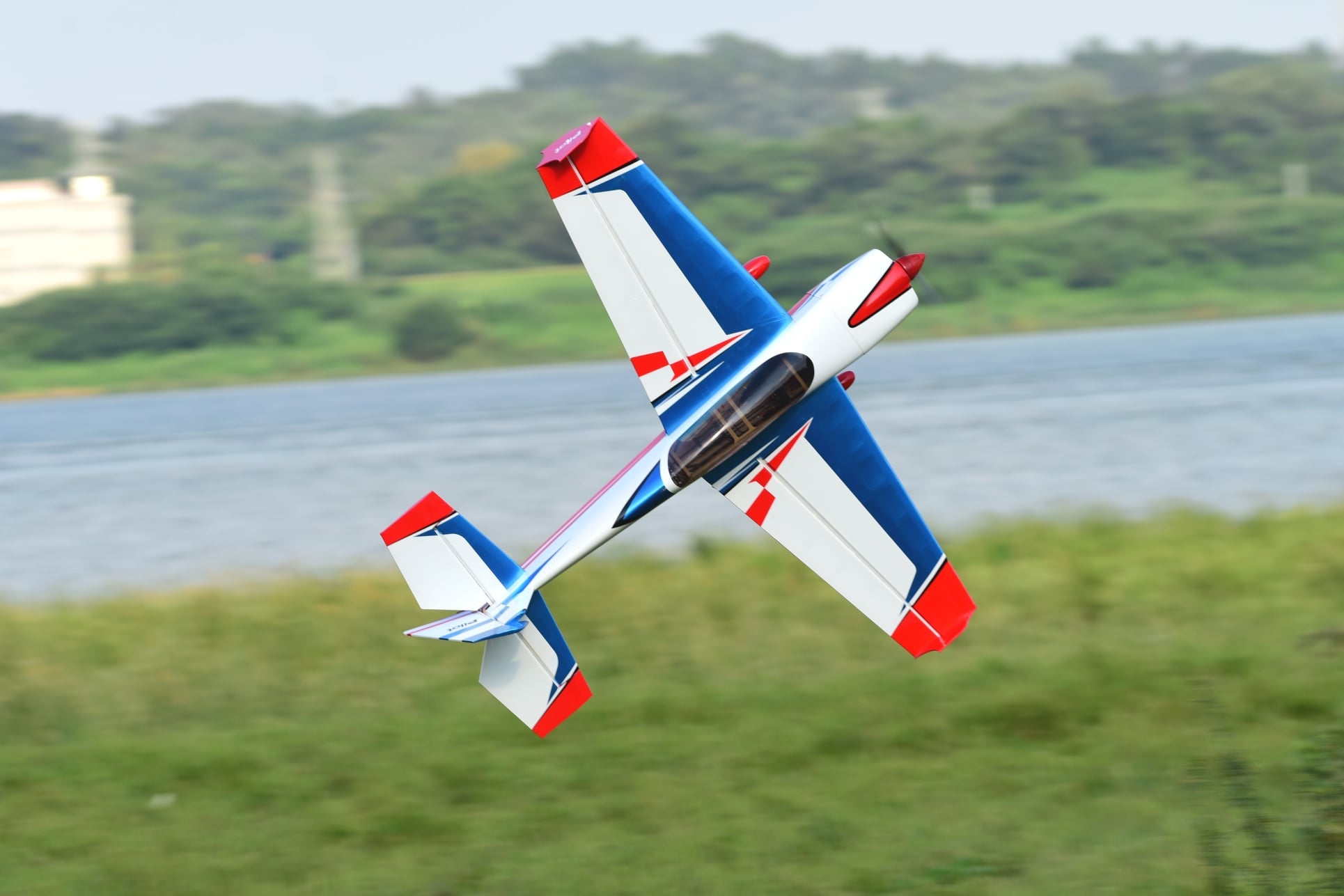

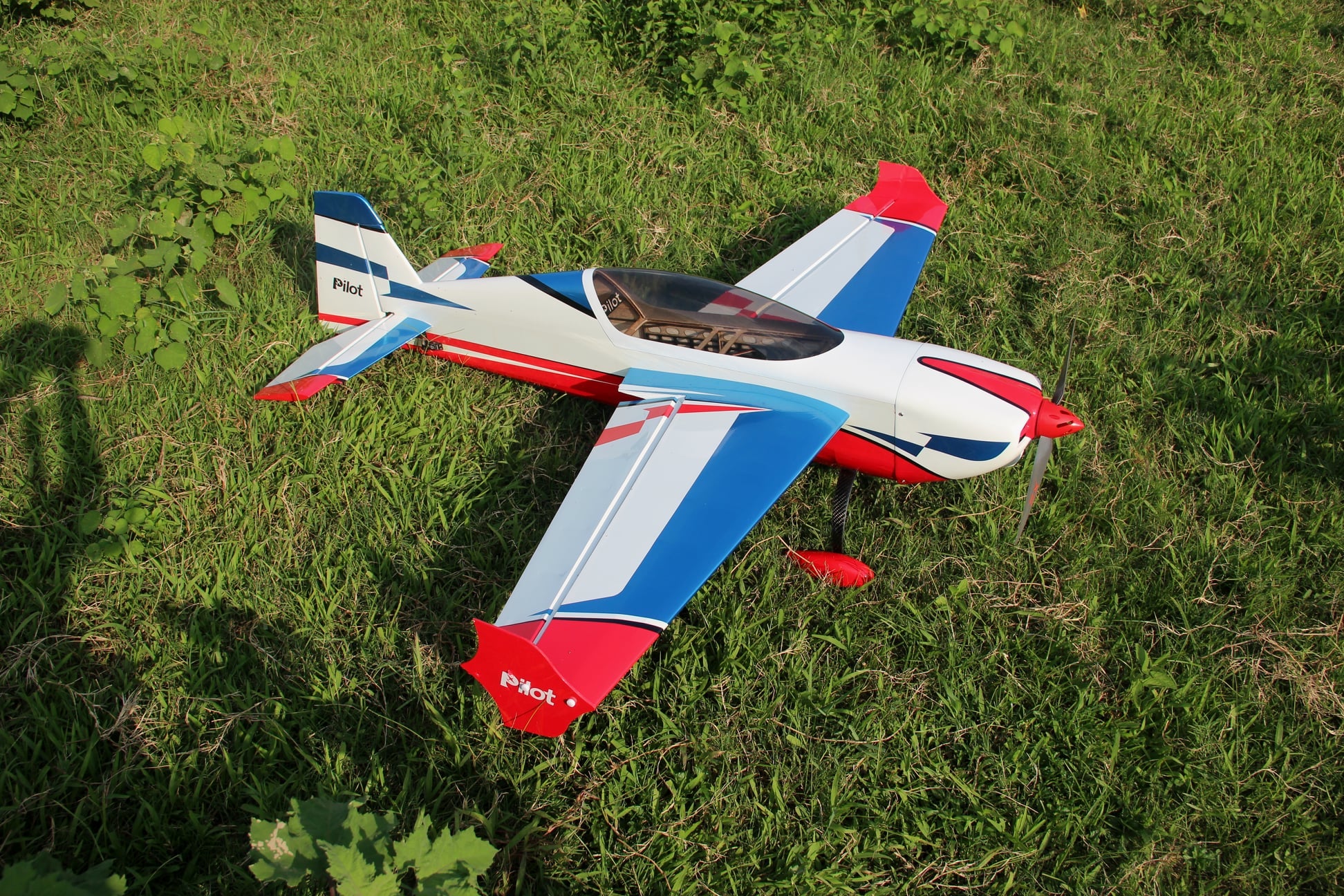

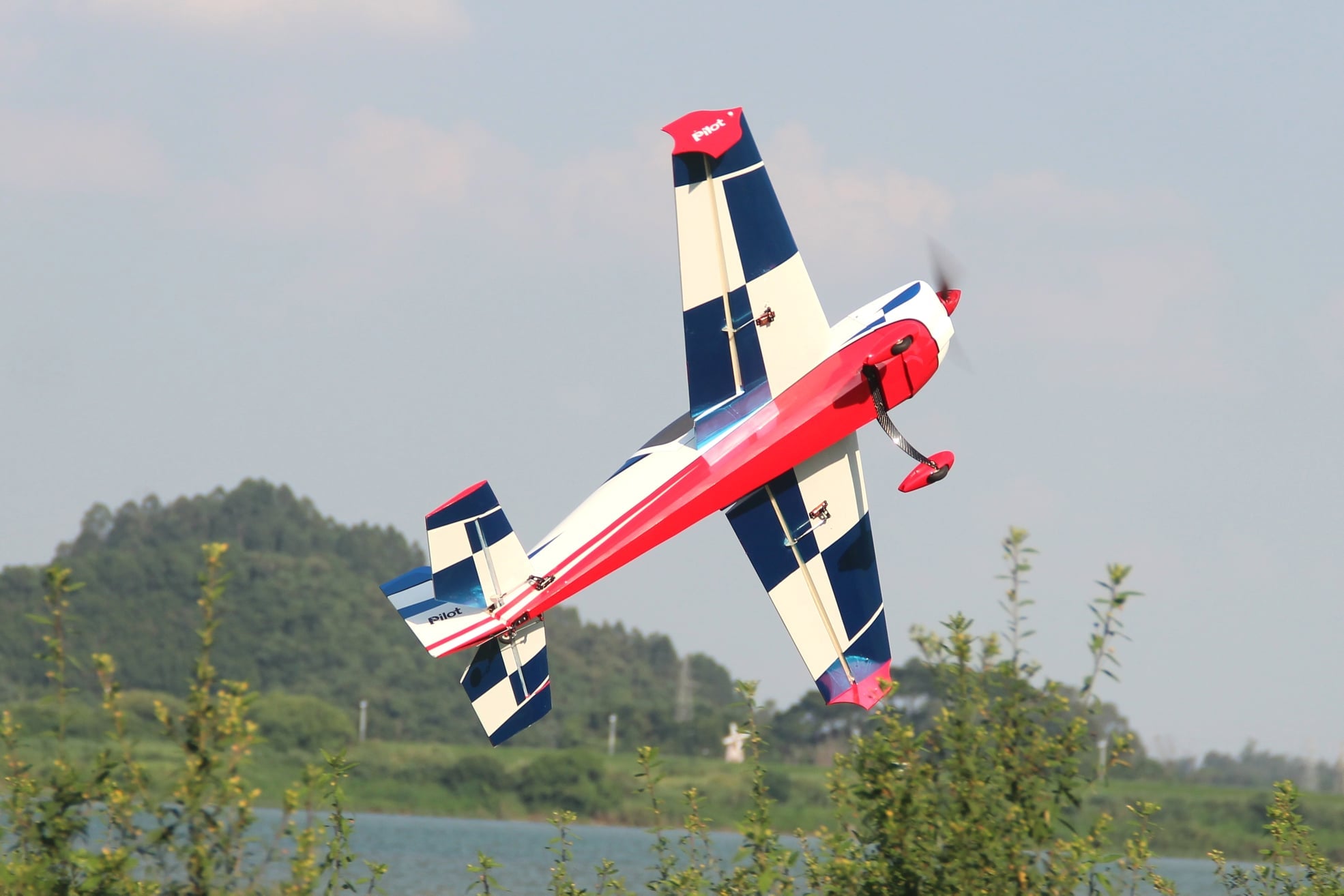

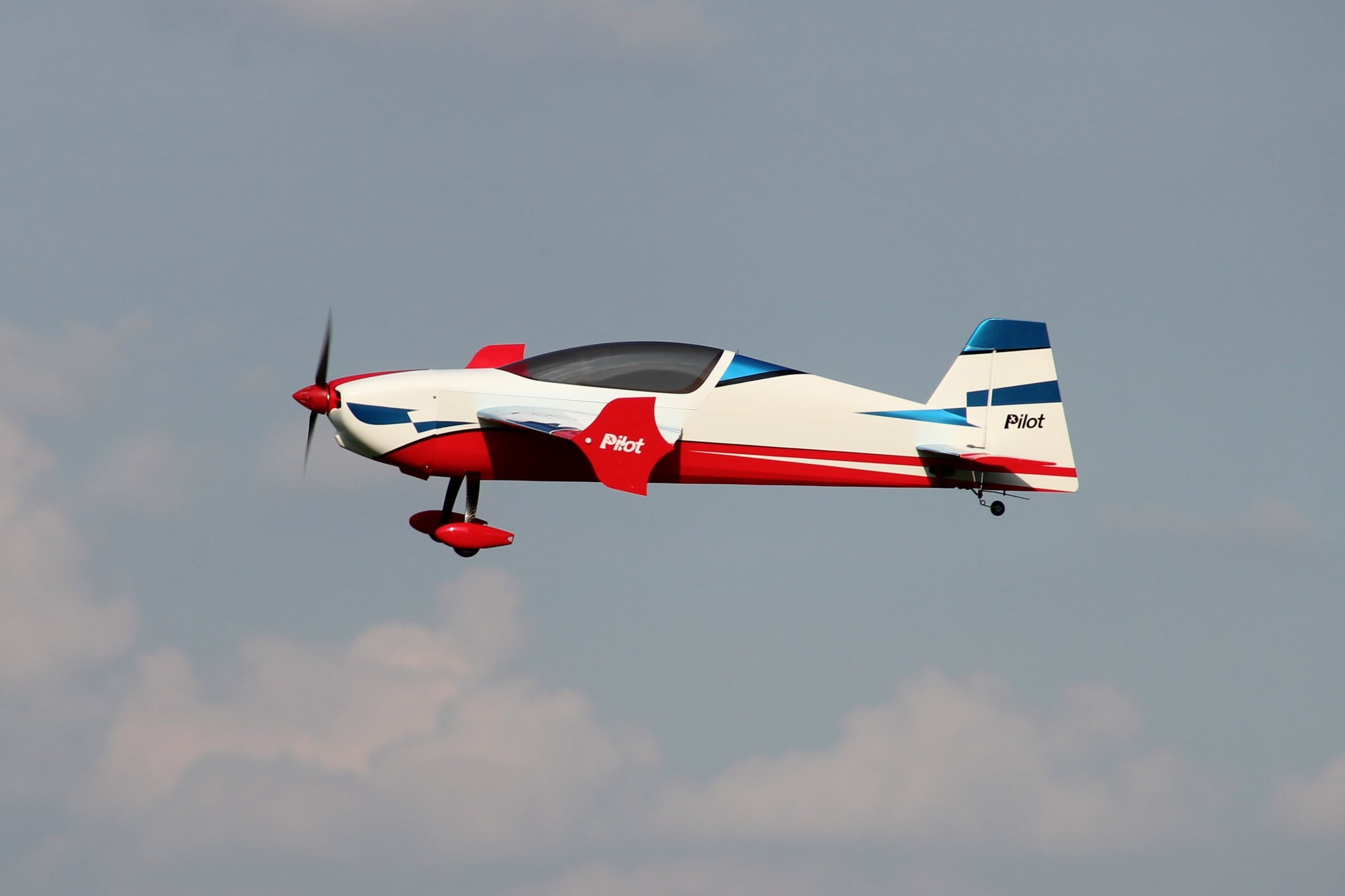

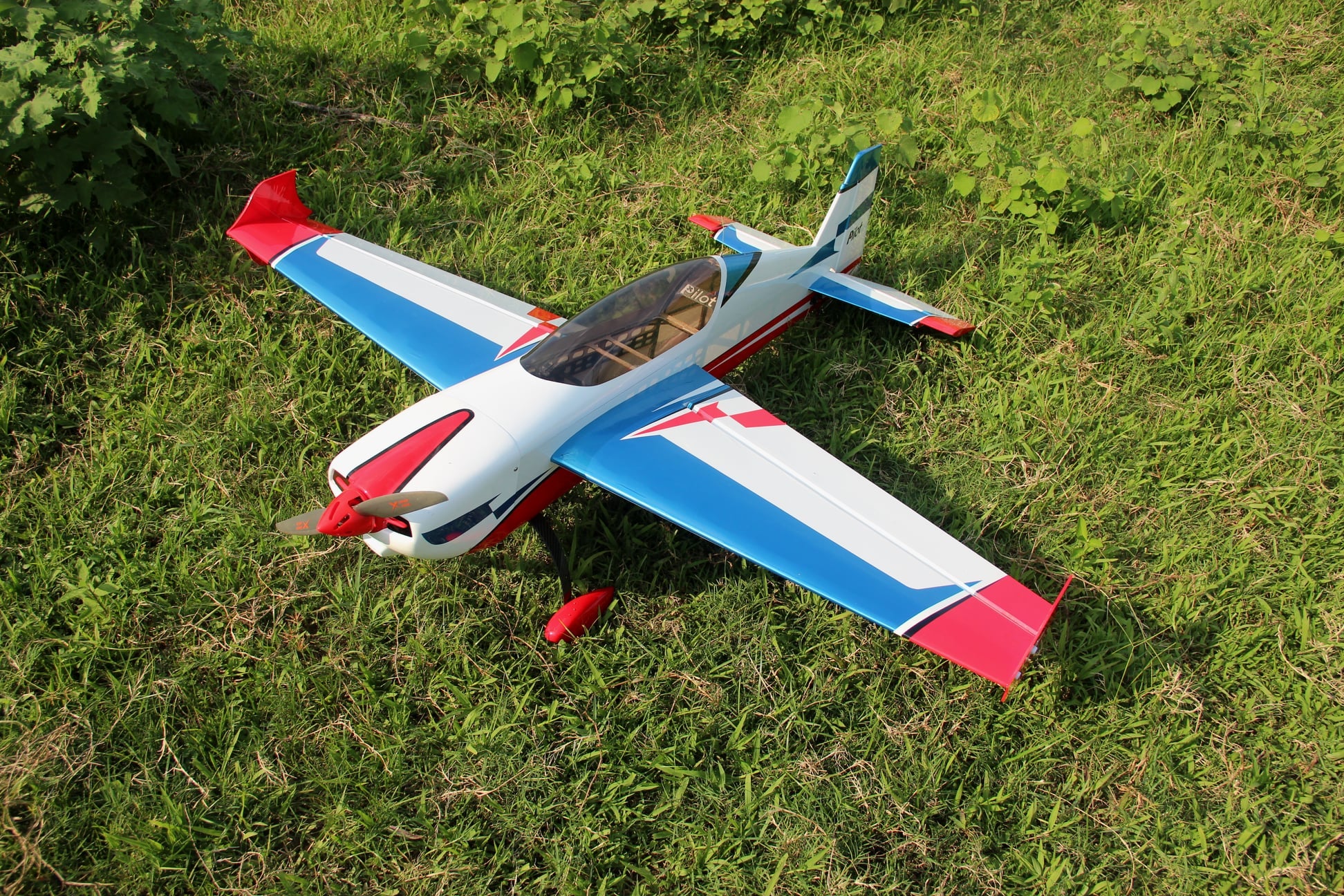

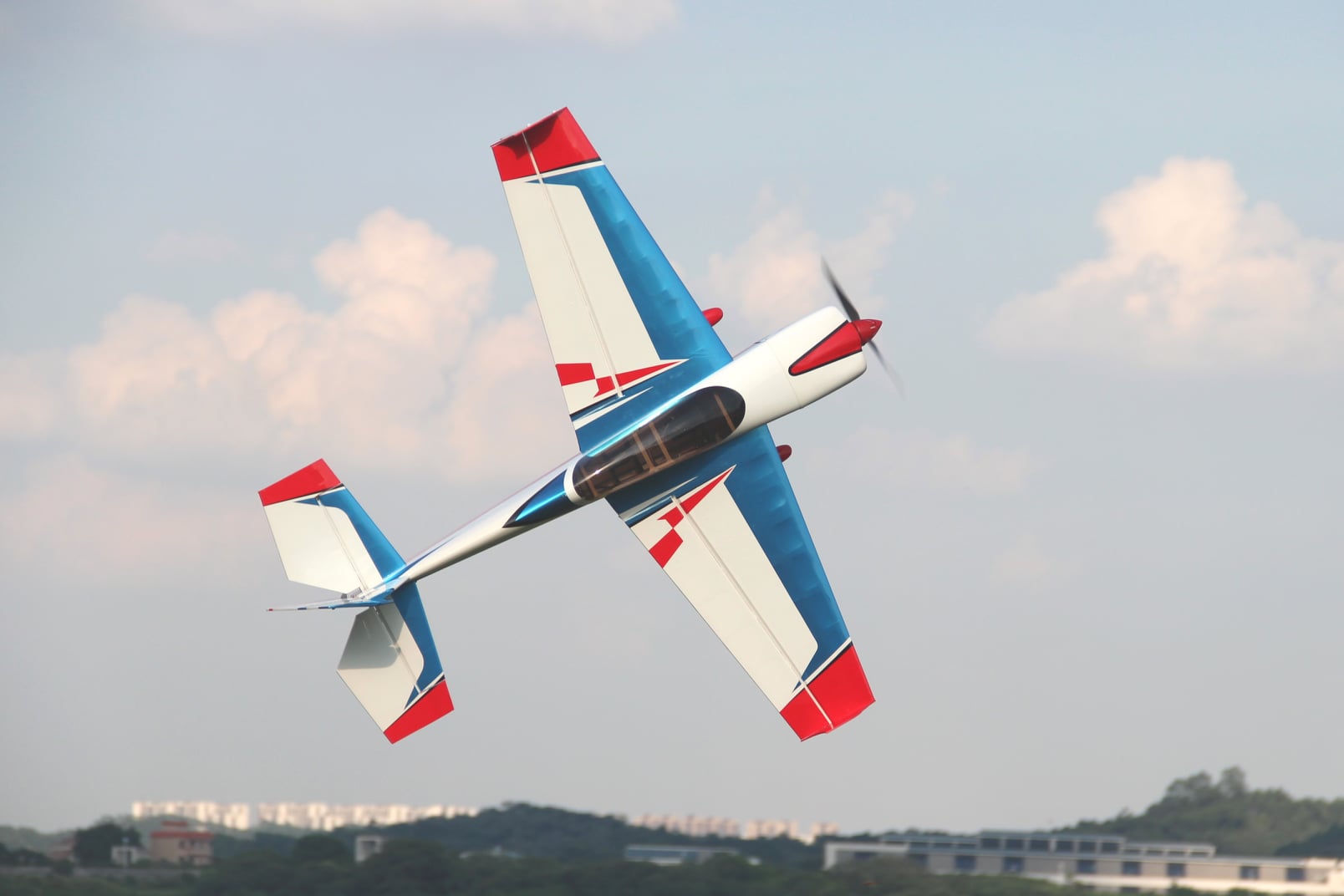

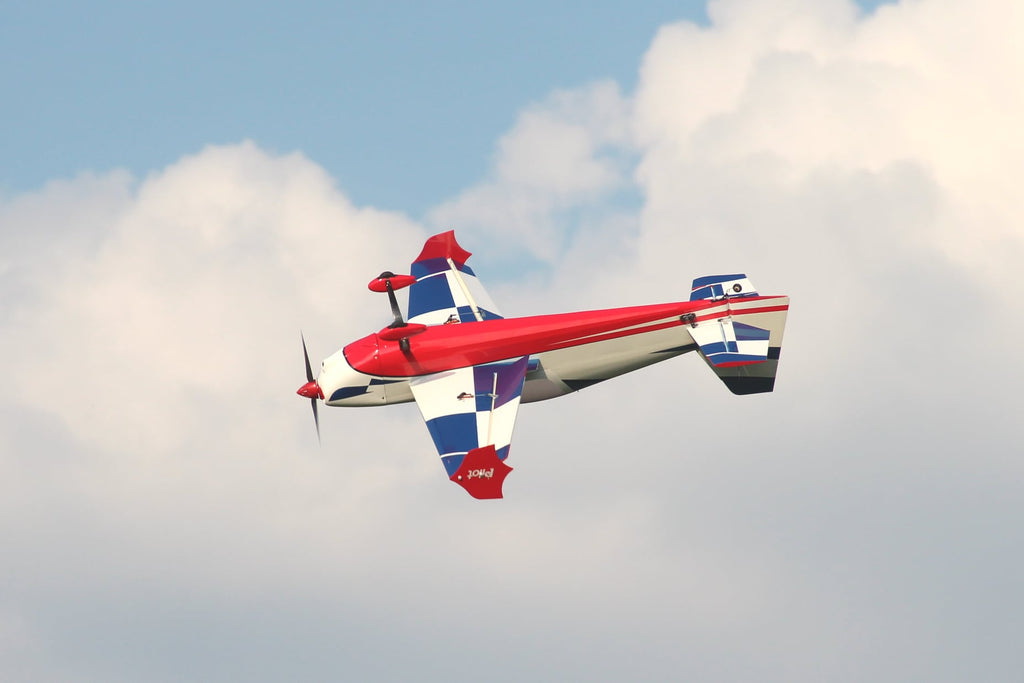

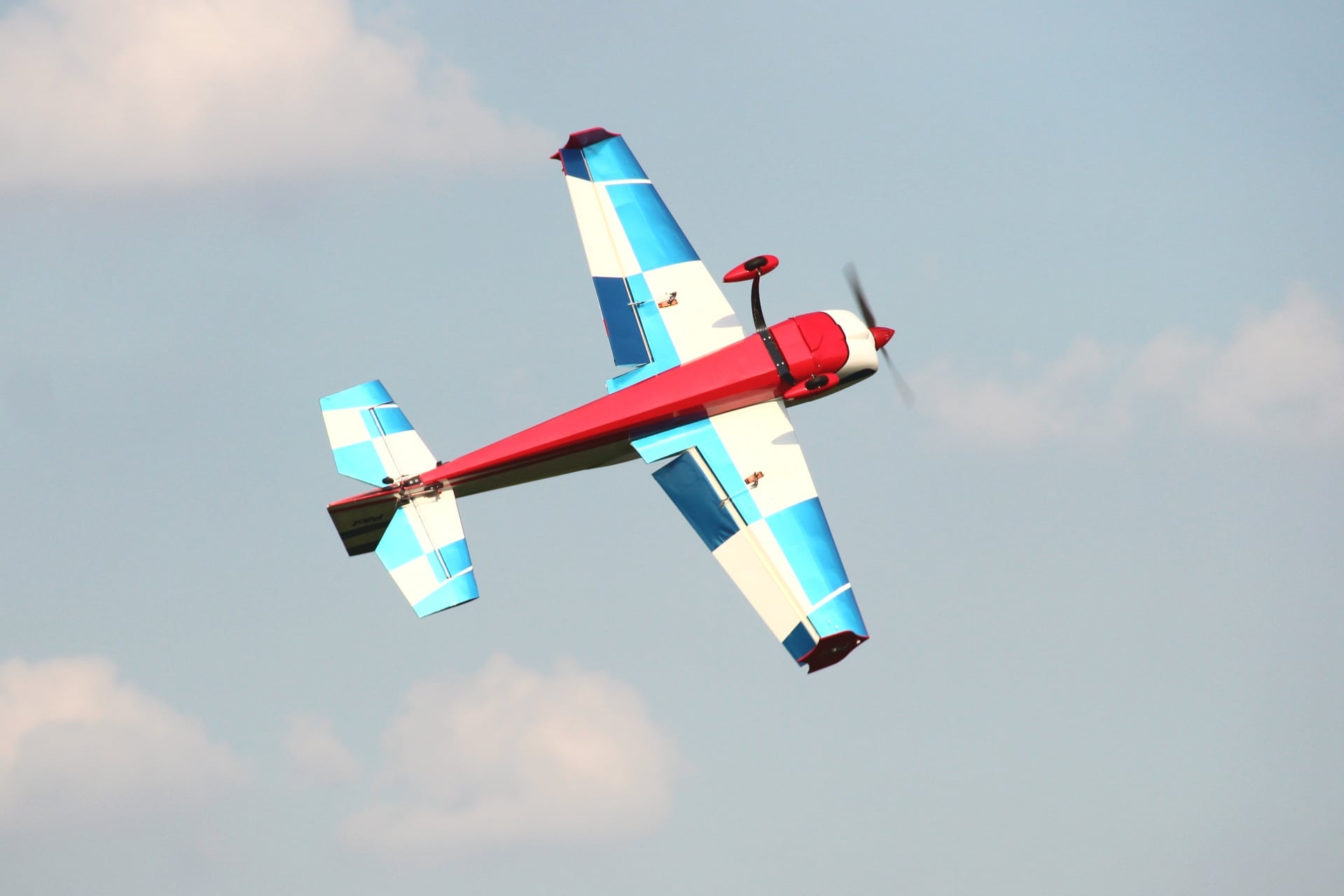

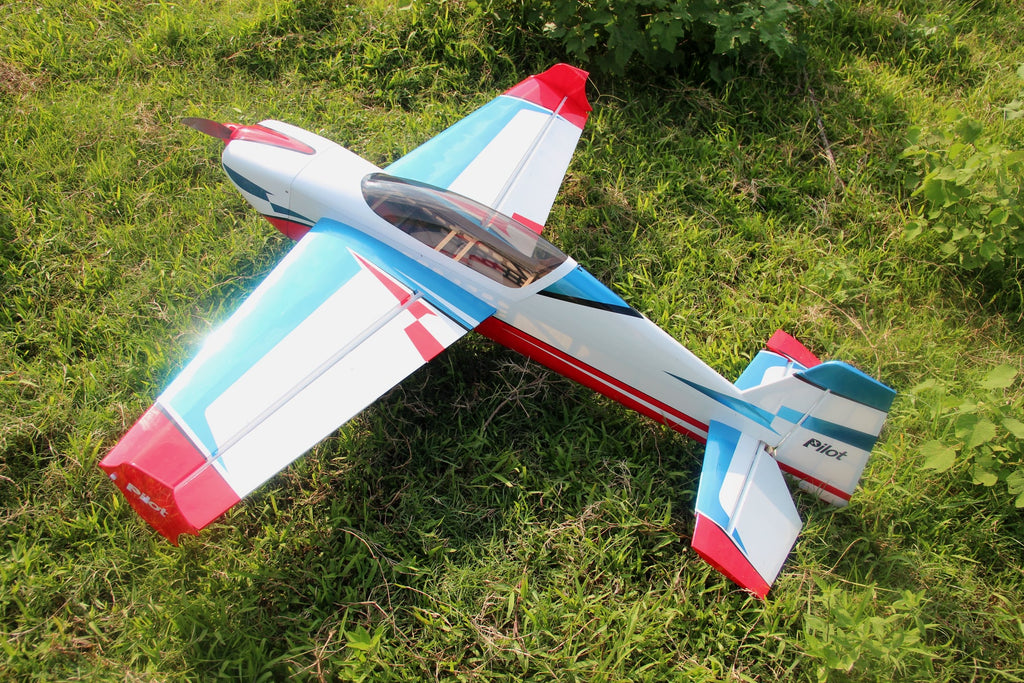

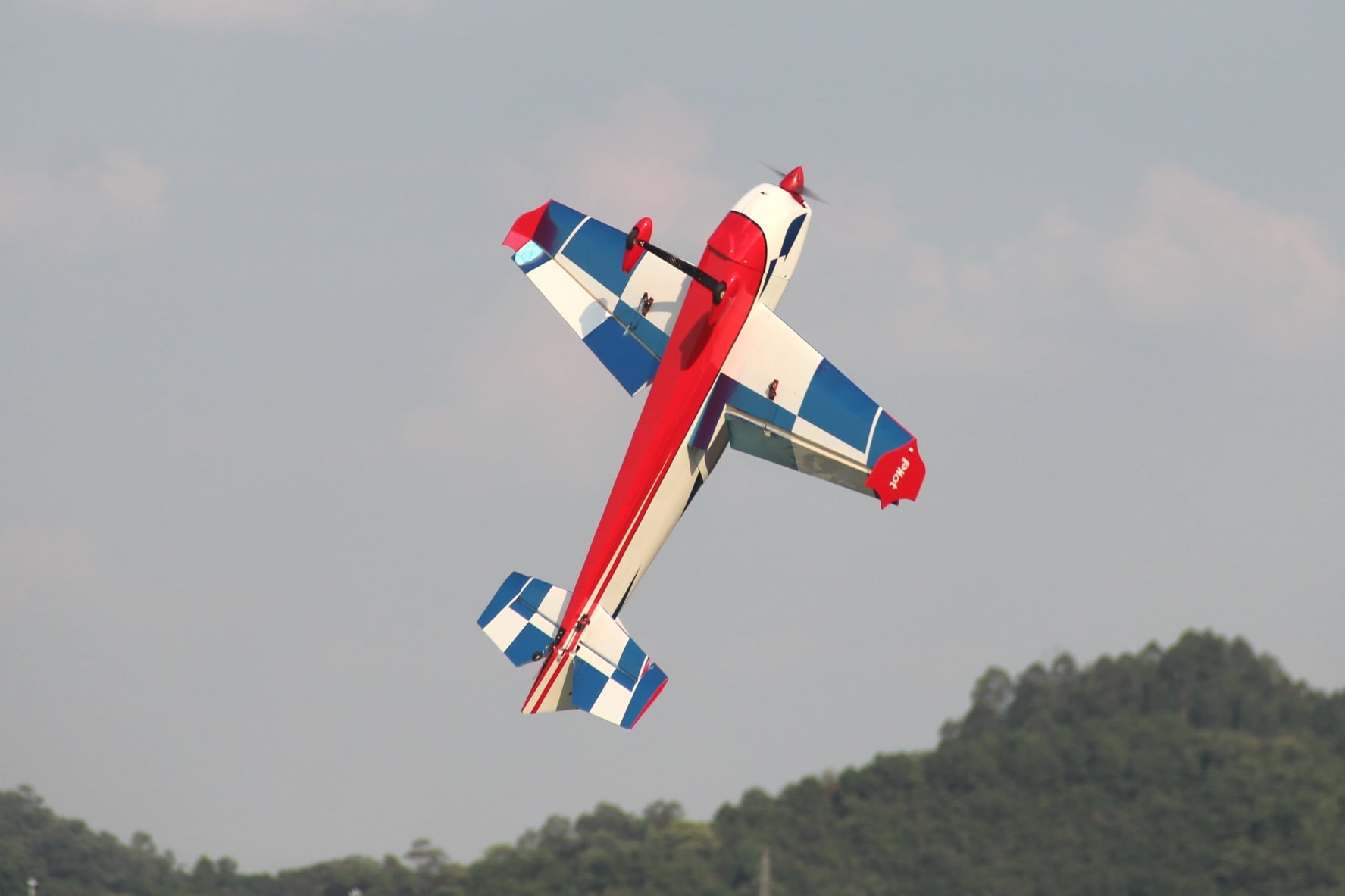

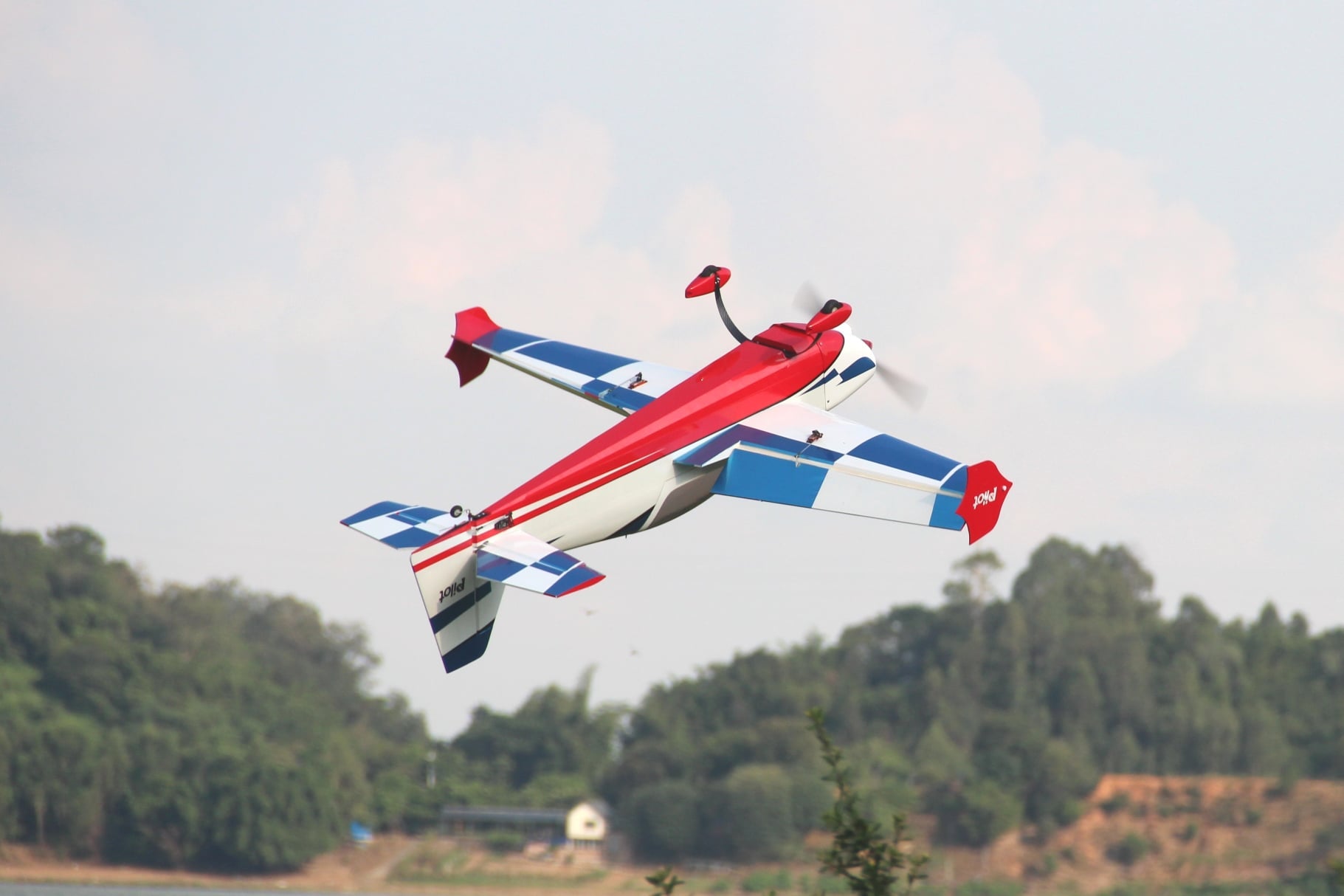

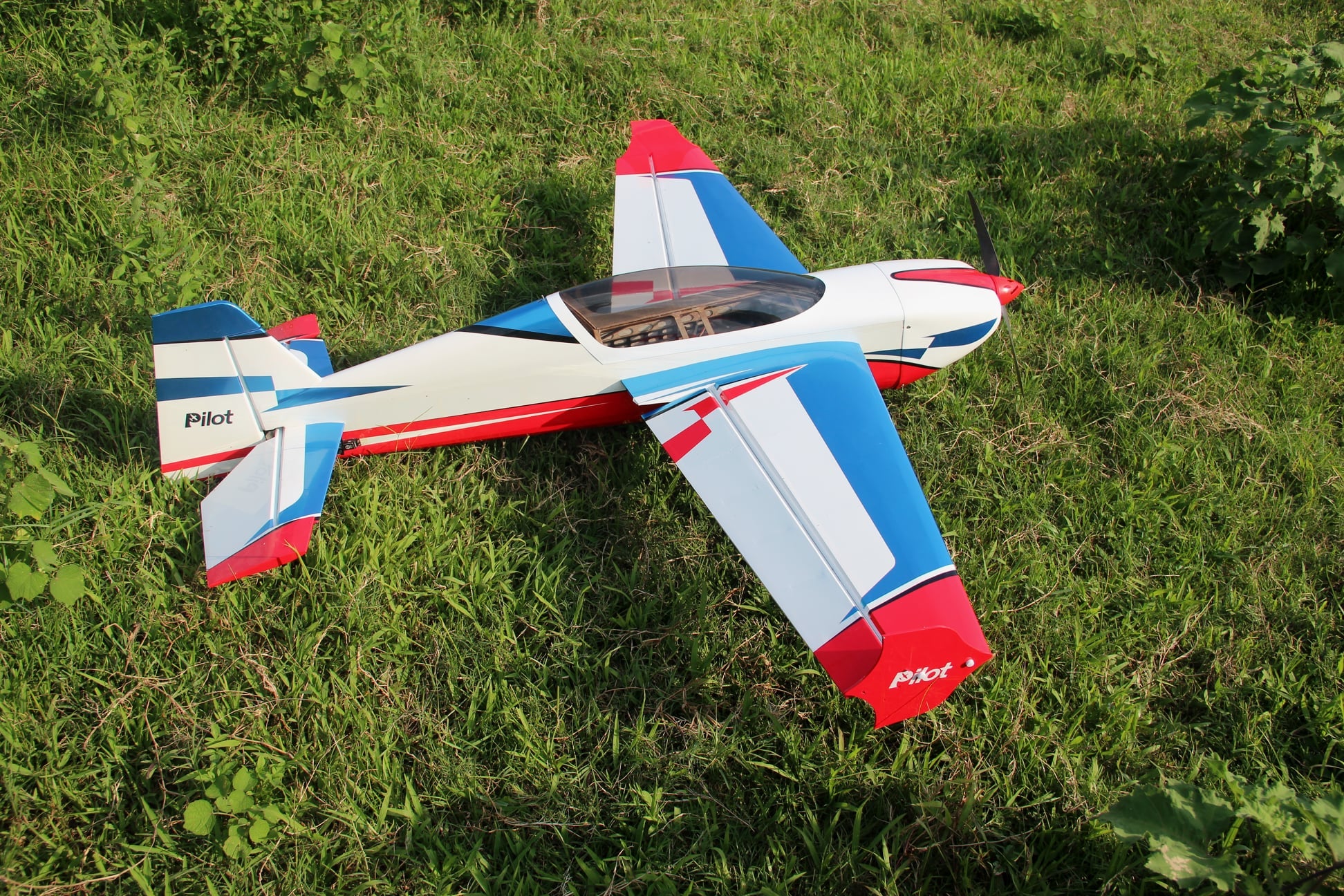

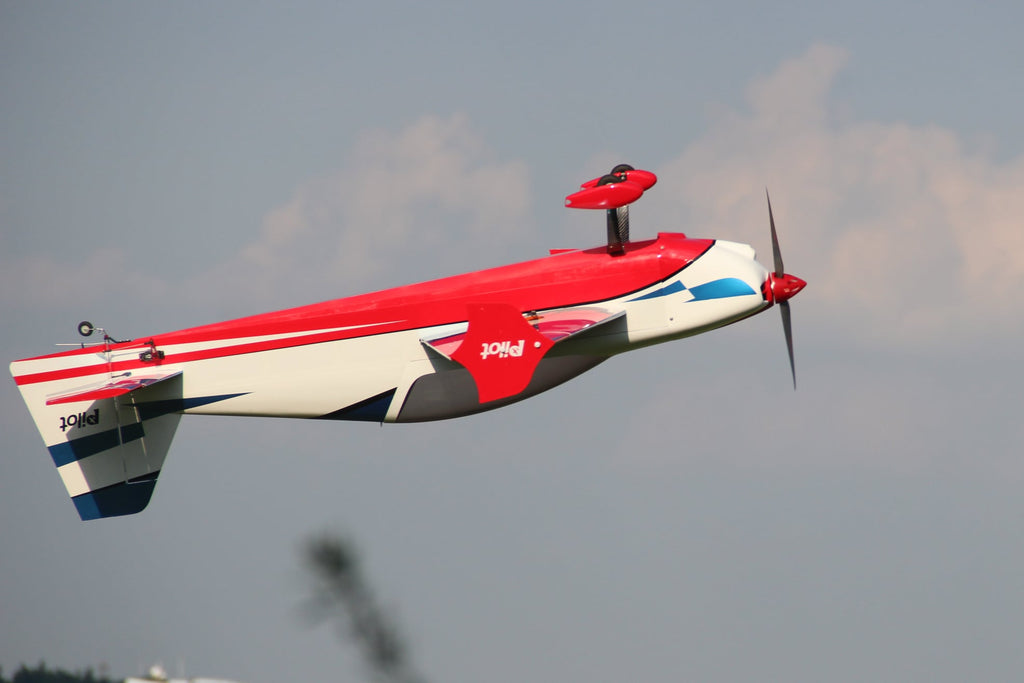

Pilot rc Extra NG 01  60" 1.52m


The Extra NG is the latest iteration of the Extra family, each version becoming more precise and more agile than ever before, and this feeds down all the way through our models.

This new design, combined with all of Pilot-RC’s latest build innovations and methods provide a high quality kit that can be built within minutes upon arrival at the flying field and relied upon for strength, agility and all round fun.

SPECIFICATIONS:

FEATURES:

• NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
• NEW! Patented quick assembly system for wings.
• NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
• NEW! Patented quick assembly system for SFG.
• Strong yet light weight design, especially developed for precision aerobatic and extreme 3D flying
• Highly prefabricated, experienced builders can have air ready in under a day
• Removable wings
• Laser engraved motor mounting position
• Designed for electric motor
• Included servo extension wires and wing bags
• Push pull rudder link for more precise and direct response

INCLUDED HARDWARE:

• Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
• Included wing bags
• Included extension wires
• Pre-prepared hinges ready to be installed and pre-mounted canopy
• Wheels, axels and wheel pants
• Included spinner

REQUIRED HARDWARE:

Powerplant: Dualsky GA1500 or Dualsky XM5050EA-14 or similar electric motor

Servos: 4 high torque medium size // Uses x1 per aileron, x1 for elevator and x1 for rudder
Battery: 6S 22.2v 3000-4000mah

*Please note that the servo slots are designed to accept a medium size servo (35mm x 15mm)

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

PILOT-RC RECOMMENDED HARDWARE:

• Servos: AGF B26CLM 26g HV 10.5KG mini servo
• Servo arms: Pilot-Rc 1,2″ Aluminium arms (included with Pilot-Rc servos)
• Electric Motor Combo: Pilot-RC Power Pack for 60″ plane (3D acrobatic)
• Electric Motor & Servos Combo: Pilot-RC Power Pack for 60″ plane WITH servos (3D acrobatic

Build information

COWL SIZE:

A: 203mm, B: 177mm, C: 210mm, D: 180mm

EXTENSION WIRE LENGTHS:

Throttle:
No extension required

Each aileron:
10cm
(to reach receiver direct)

Elevator:
70cm

Rudder:
70cm

*All these extension leads are included with the kit

CENTER OF GRAVITY:

142mm
Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.

FULL BUILD MANUAL:HERE
