Pilot-RC already surprised everyone with a new level of precision and with our extremely popular ,ExtraNG ,Slick . We have now taken all these great features and grown them into our new EDGE V3.

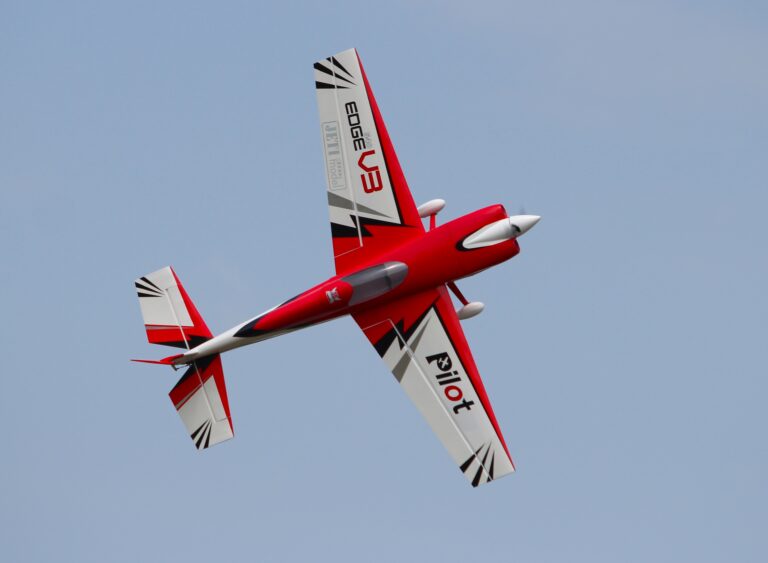

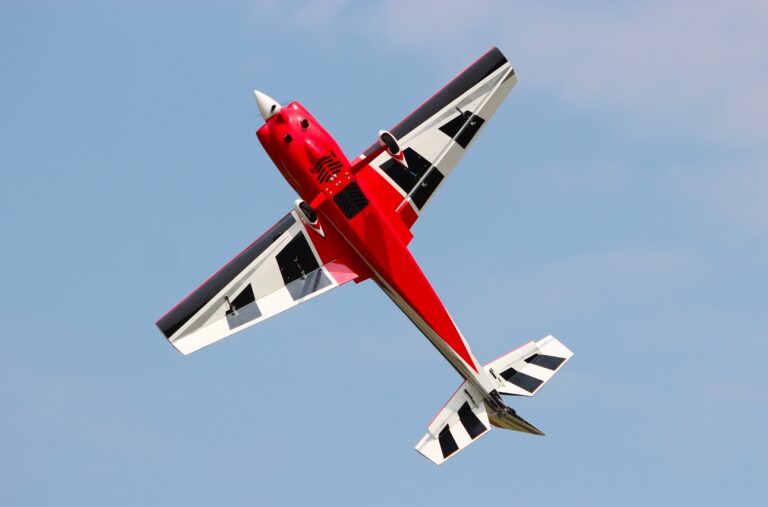

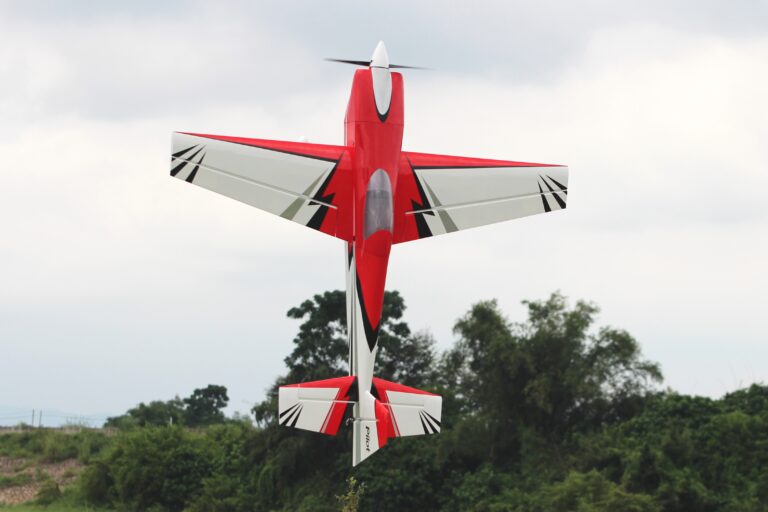

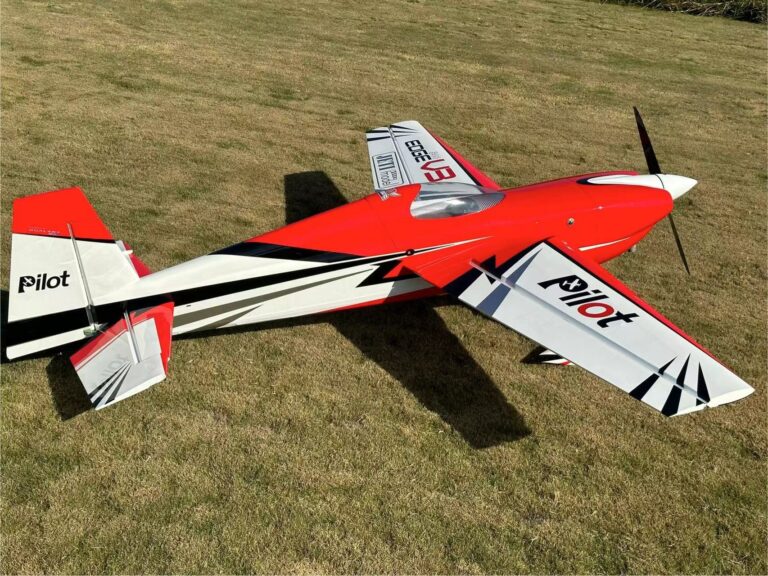

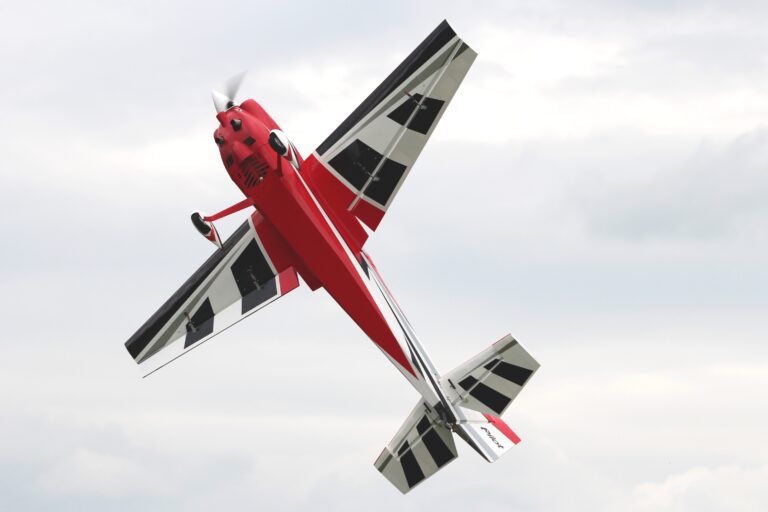

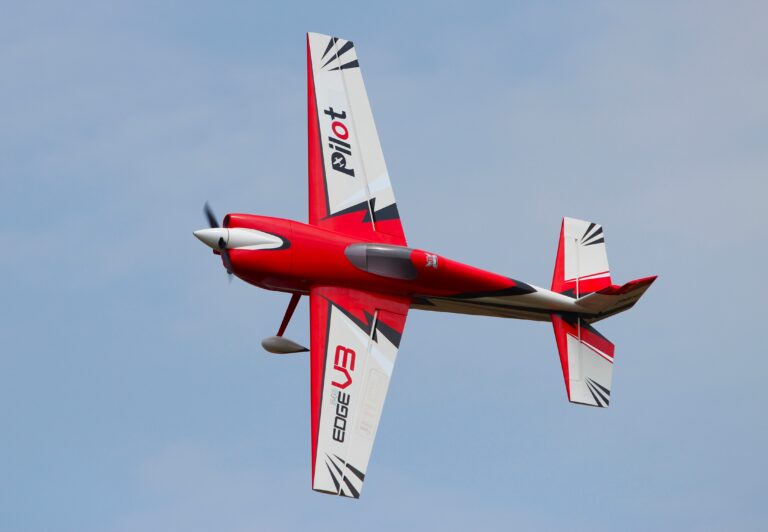

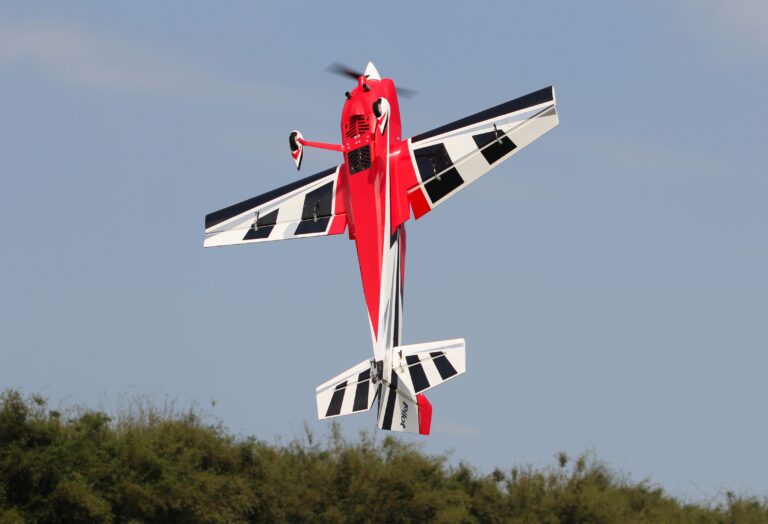

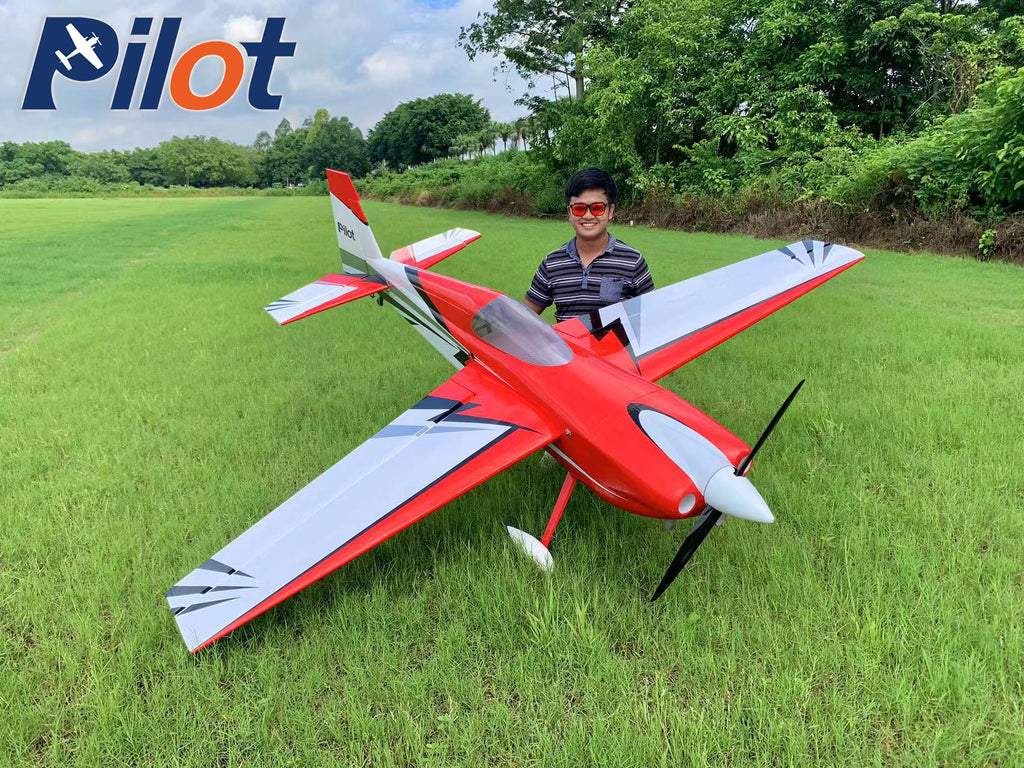

The Pilot-RC EDGE 540 V3 , as well as looking great and offering color schemes designed by legendary Italian designer Mirco Pecorari at Aircraft Studio Design in 01 color scheme and Ryu Sintuphrom signature 02 color scheme both are great design color look great as usual
Pilot-RC Edge 540 V3 30-40cc Designed by the design team of Pilot-RC with high experience with rc airframe , the Edge 540 V3 has the modern aesthetics of a full-size V3 EDGE. outstanding performance capabilities. The design is a full base on the Edge 540 V3 which has a back of fueslage unique design and one of the best shape EDGE 540 ever, not only modern looking but also has a great aerodynamic in the sky and, ensuring an authentic.
| Model: | EDGE 540 V3- 75″ |
| Wingspan: | 75″ (1.90m) |
| Length: | 74″ (1.89m) with 3.5” spinner |
| Wing area: | 1,088 “² (7,020 cm²) |
| Weight: | 12.3lbs (5.6kg) dry weight |
Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW Patented quick assembly system for wings, stabilizer(no need tools require)
NEW this airframe can provide great 3D performance on popular engine like DLE35 , DA35 , GP38.
Patented quick assembly system for canopy.
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed hinges (glued and pinned)
NEW fuel tank spot on the CG top of wing tube same as 120cc size to avoid CG change during flight.
NEW design 2 middle size servo elevator for better adjustable on elevator 21kg
Internally mounted cowling – so no visible external screws exposed
Removable wings and stabs
Laser engraved motor mounting position
Easy canister installation due to open construction
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pull-pull wires and pushrods with ball links
Matching carbon spinner,3.5″
Motor: 30-40cc or equivalent electric
Servos: 5-6 high torque (minimum 20kg) plus throttle // Uses x1 per aileron, x1 per elevator (Elevator require middle size servo)and x1 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
Each aileron:
15cm
( to reach receiver direct)
Each elevator:
65cm
Rudder:
65cm
(when using direct – if installing pull pull, no required extension)
soon
Measured back from leading edge of the wing at the fuselage.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
