The AGFRC B13DLM V2 servo is now a 2S 8.4V High Voltage programmable digital micro servo, designed with a central CNC aluminum case for good heat dissipation and enhanced servo structure. Combined with double ball bearings, titanium gear, and a DC motor, it provides 4.5 kg-cm high torque at 8.4V. Its light weight and small size make it suitable for most mini R/C models. It supports programming of servo parameters via our USB Programmer to meet different needs.

Feature

Plastic and Aluminum Case

High Precision Metal Gears

High Quality Brushed Motor

HV 2S High Voltage Compatible Micro Servo

High Performance Programmable Digital servo

Ideal for 1/14, 1/18, 1/24 Scale Crawler, Airplane, 450 Size Helicopter etc.

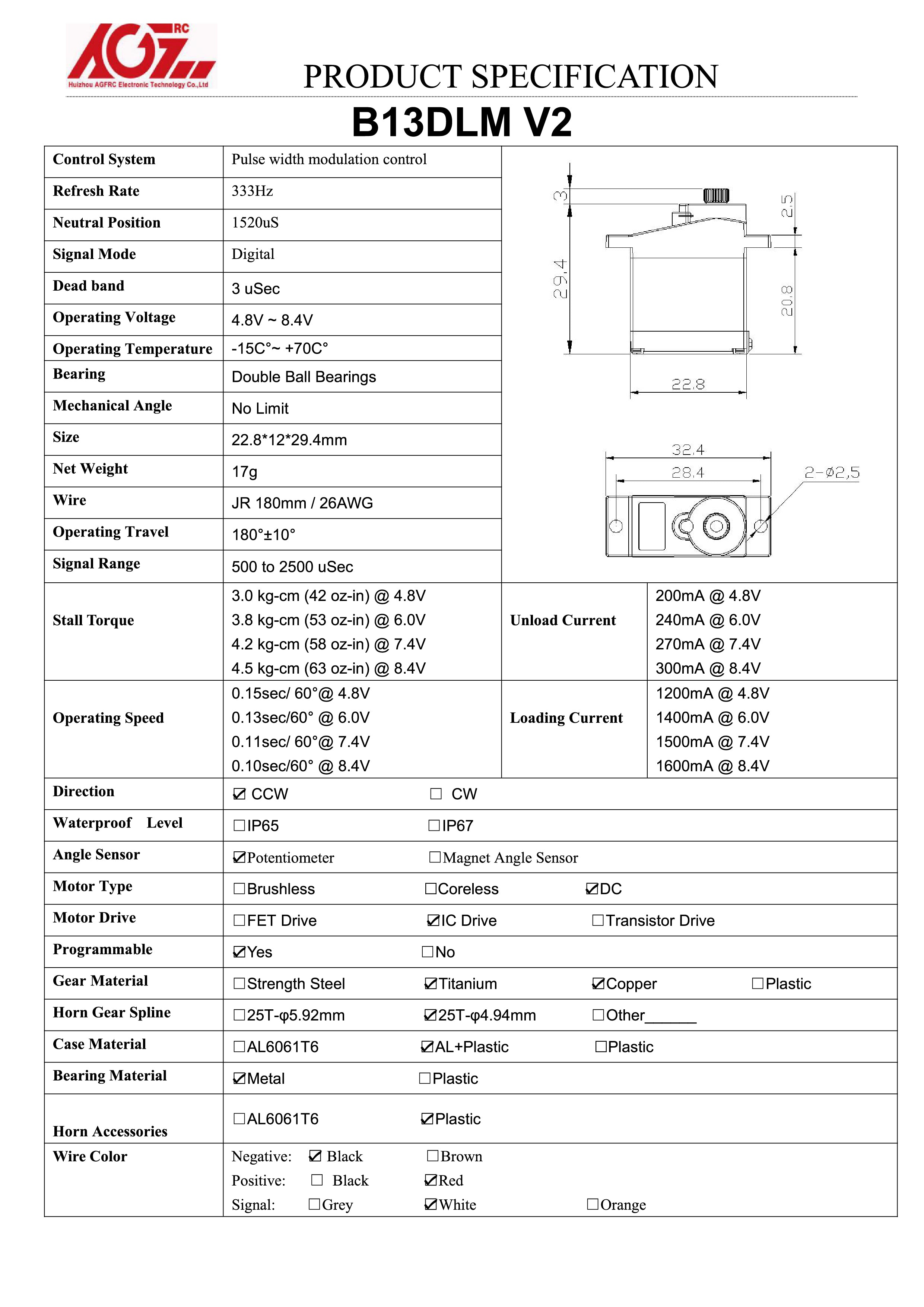

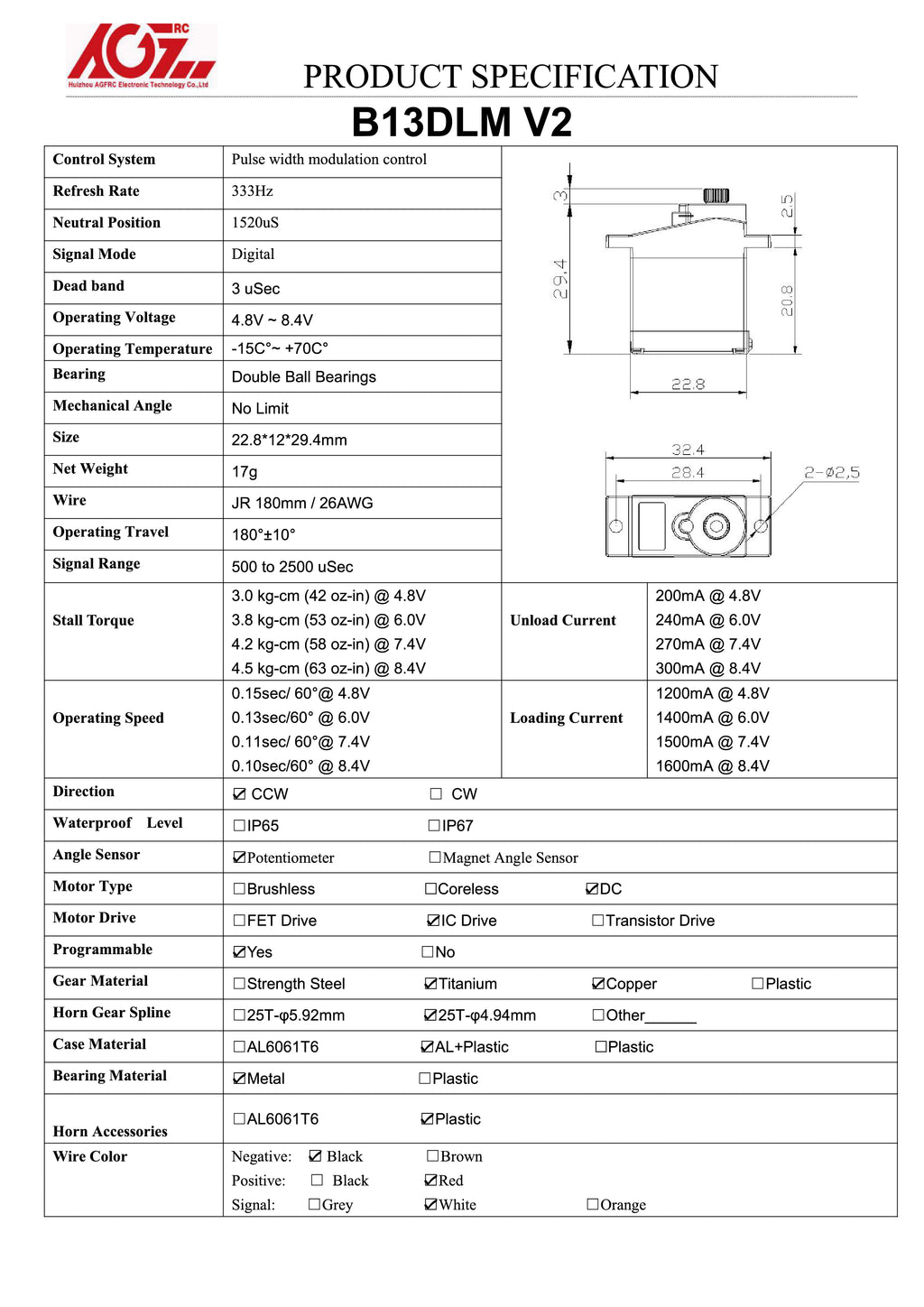

Specification

B13DLM V2

Operating Voltage: 4.8-8.4 V

Operating speed: 0.15sec/60° @ 4.8V

Operating speed: 0.13sec/60° @ 6.0V

Operating speed: 0.11sec/60° @ 7.4V

Operating speed: 0.10sec/60° @ 8.4V

Stall Torque: 3.0 kg-cm (41.66 oz-in) @ 4.8V

Stall Torque: 3.8 kg-cm (52.77 oz-in) @ 6.0V

Stall Torque: 4.2 kg-cm (58 oz-in) @ 7.4V

Stall Torque: 4.5 kg-cm (63 oz-in) @ 8.4V

Motor type: DC

Gear type: Titanium

Size: 22.8*12*29.4mm (0.89 x 0.47 x 1.15 in)

Weight: 16g

Connector Wire: JR 180mm / 26AWG
