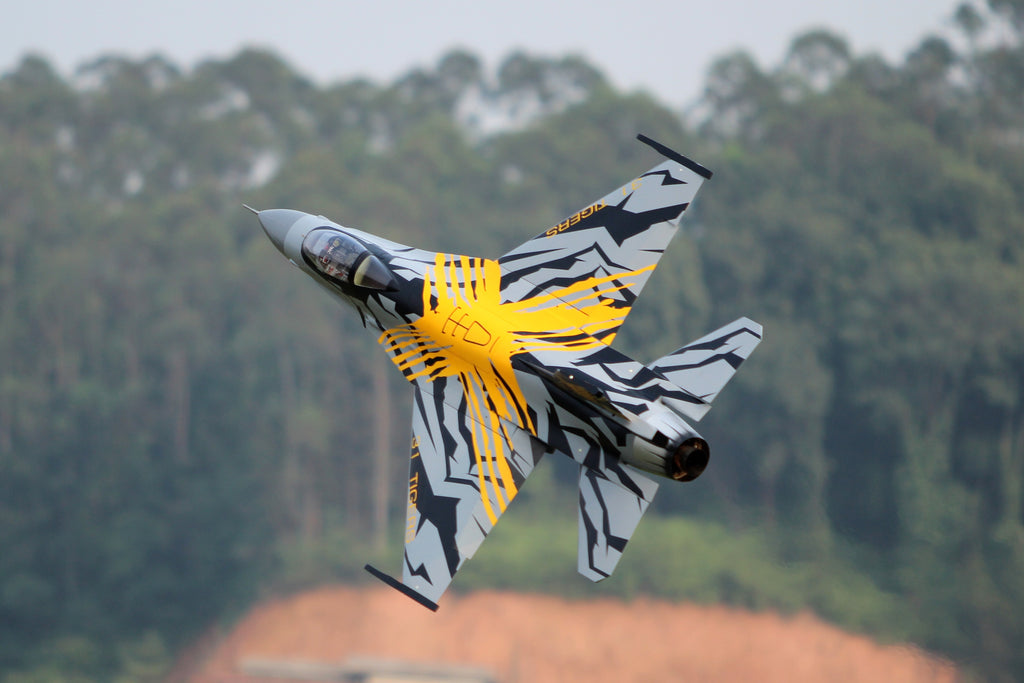

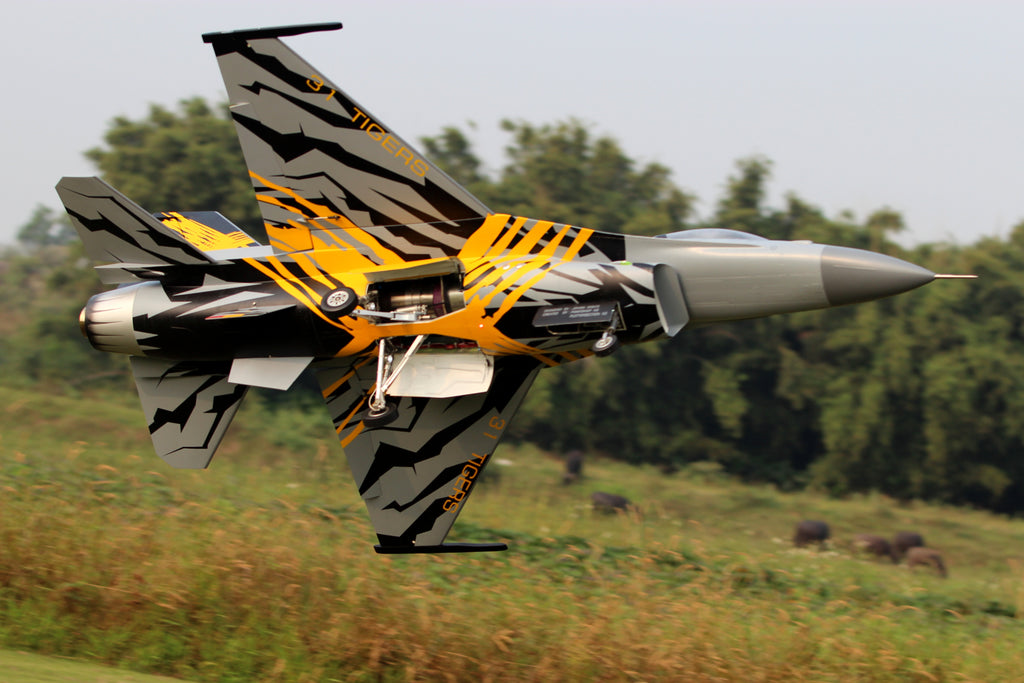

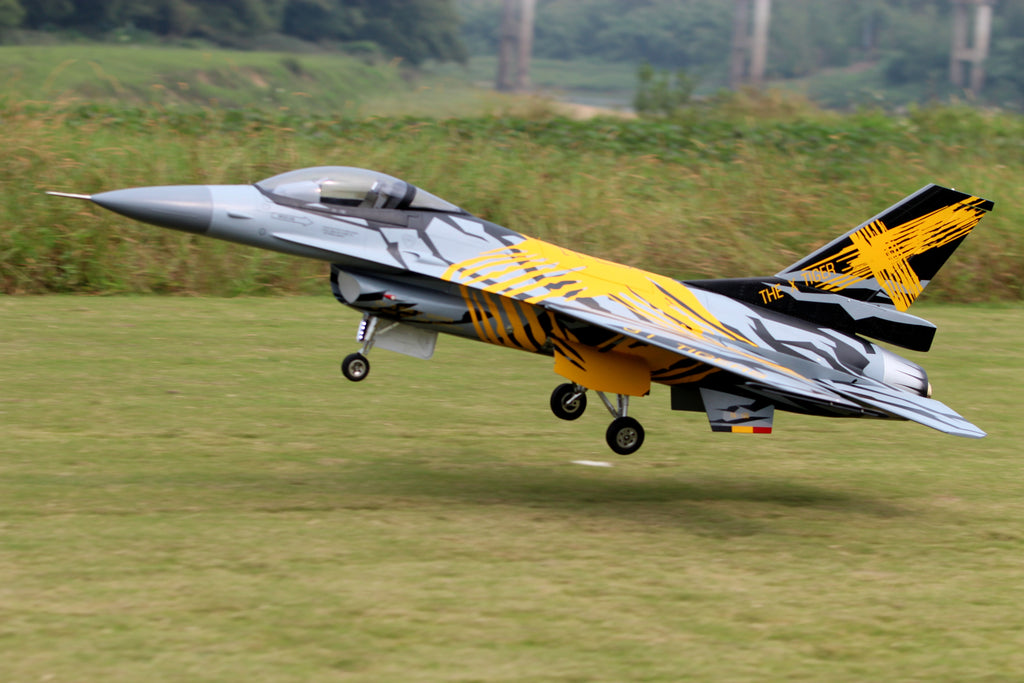

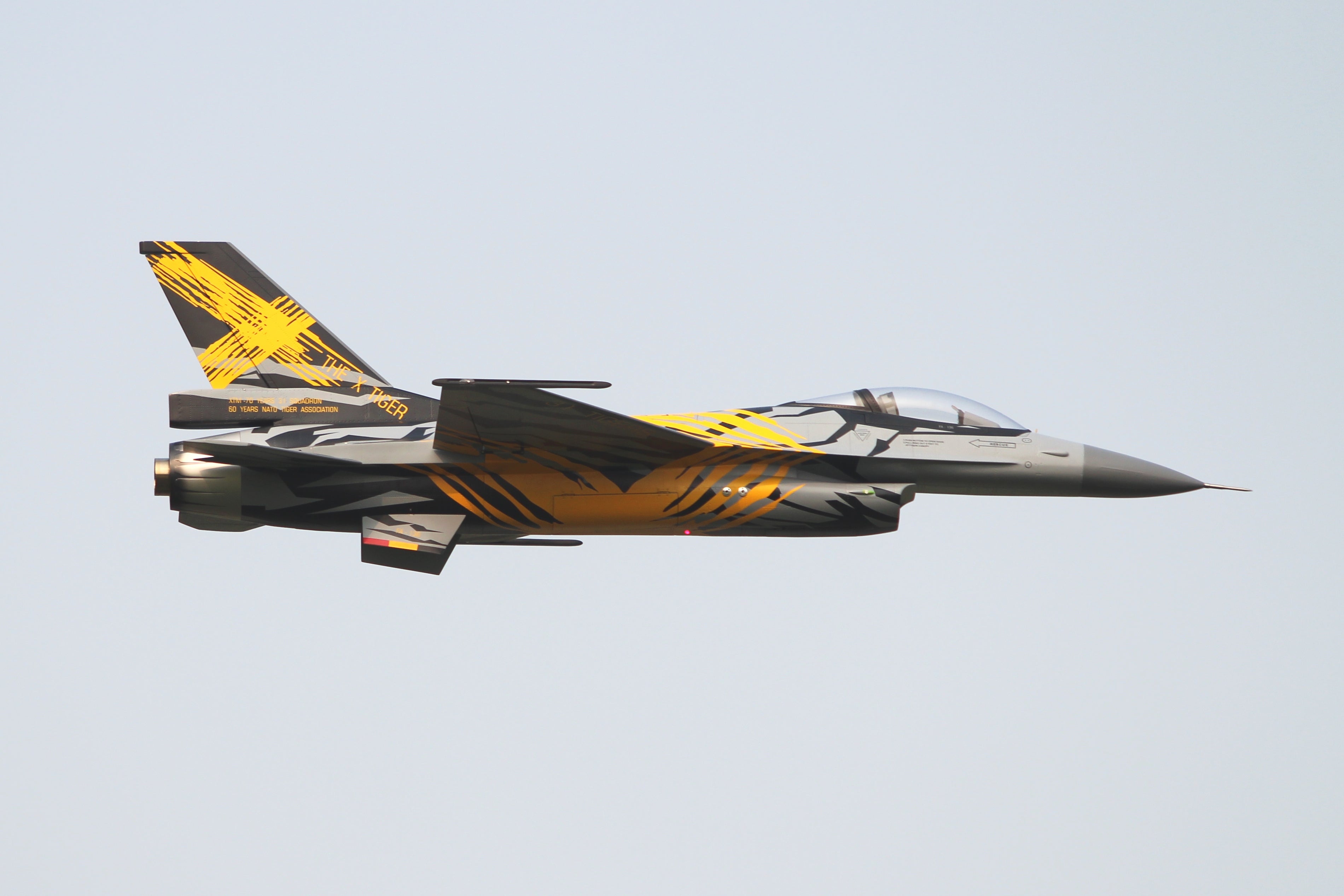

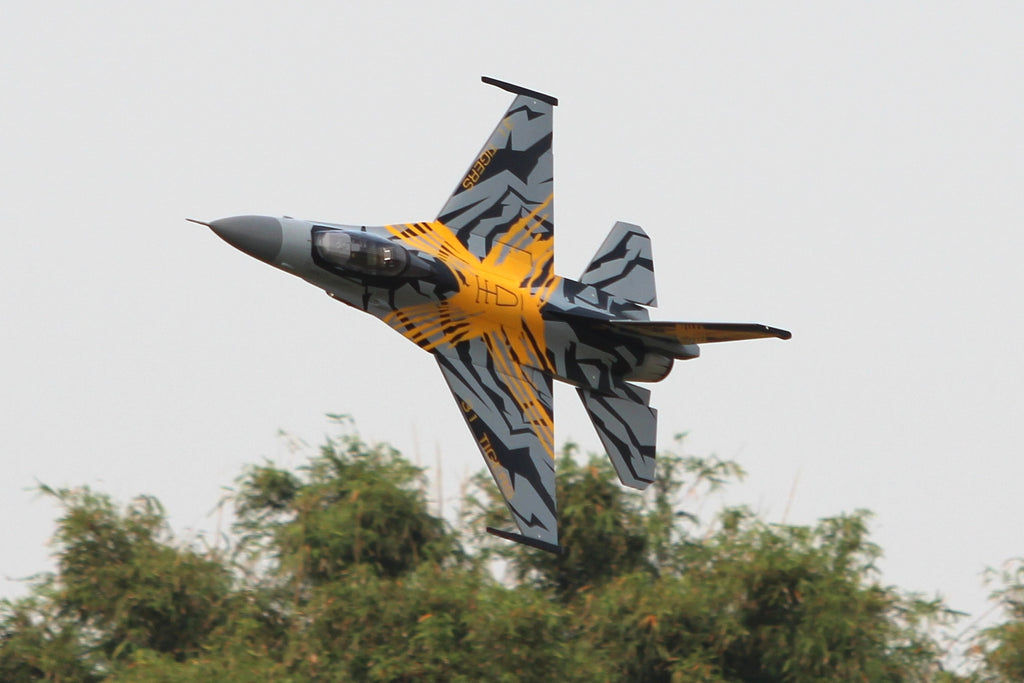

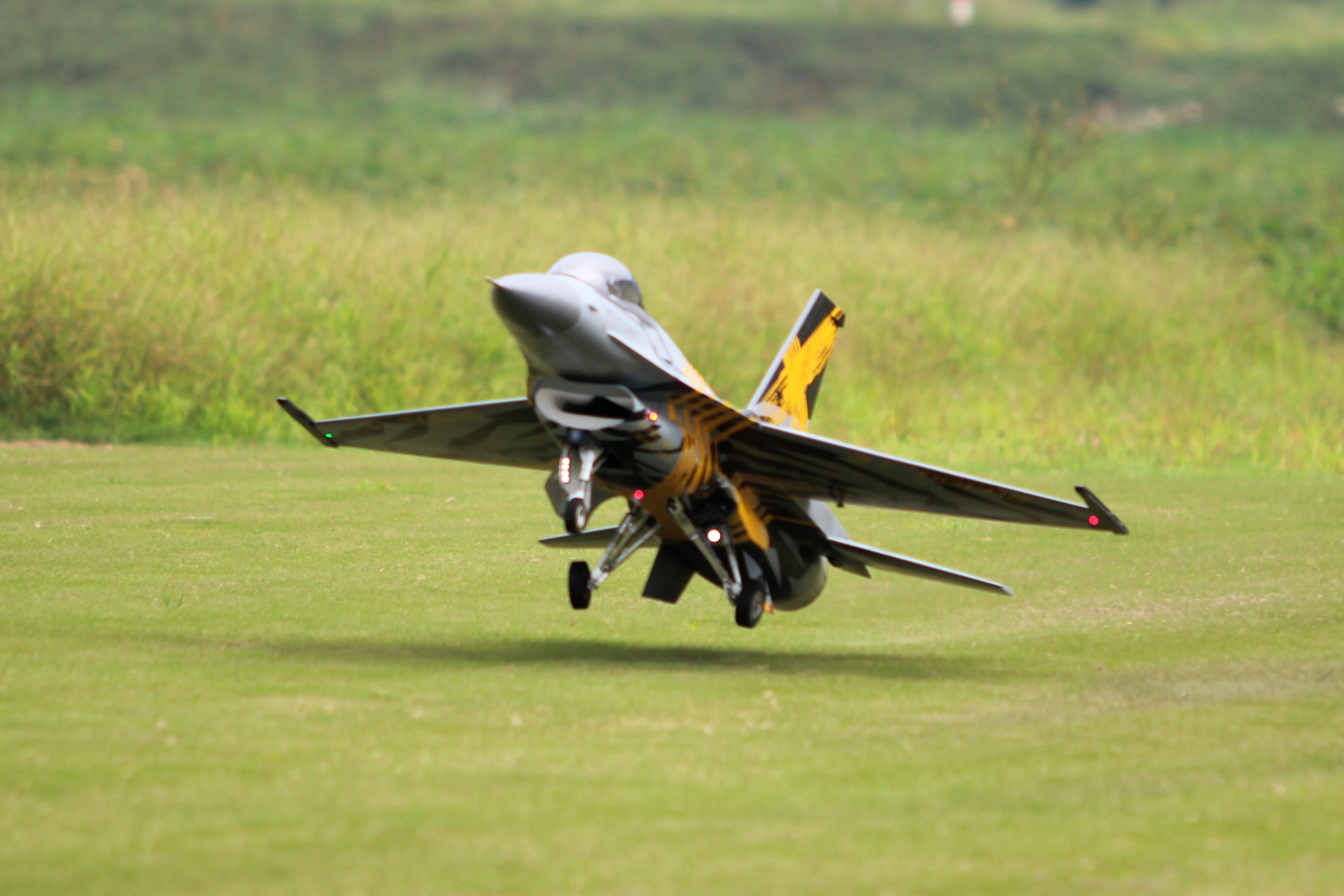

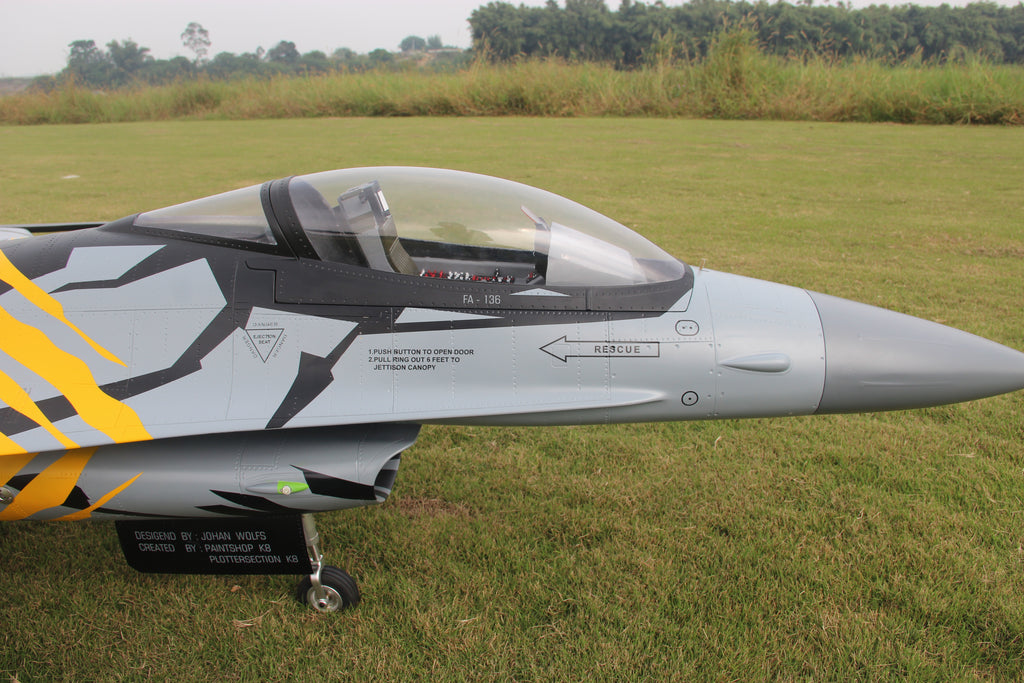

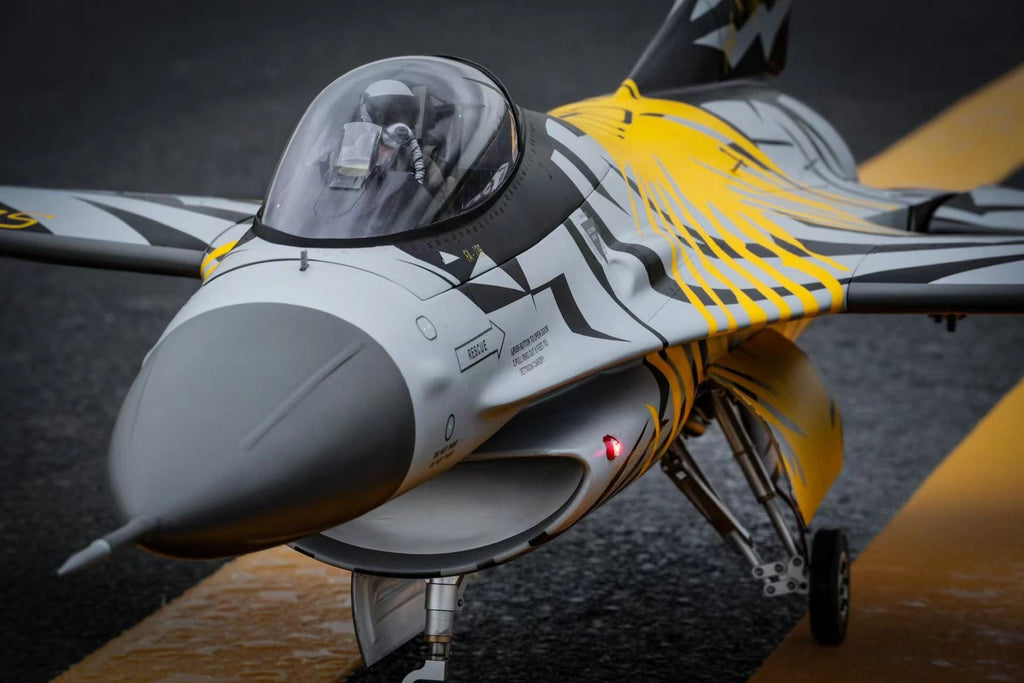

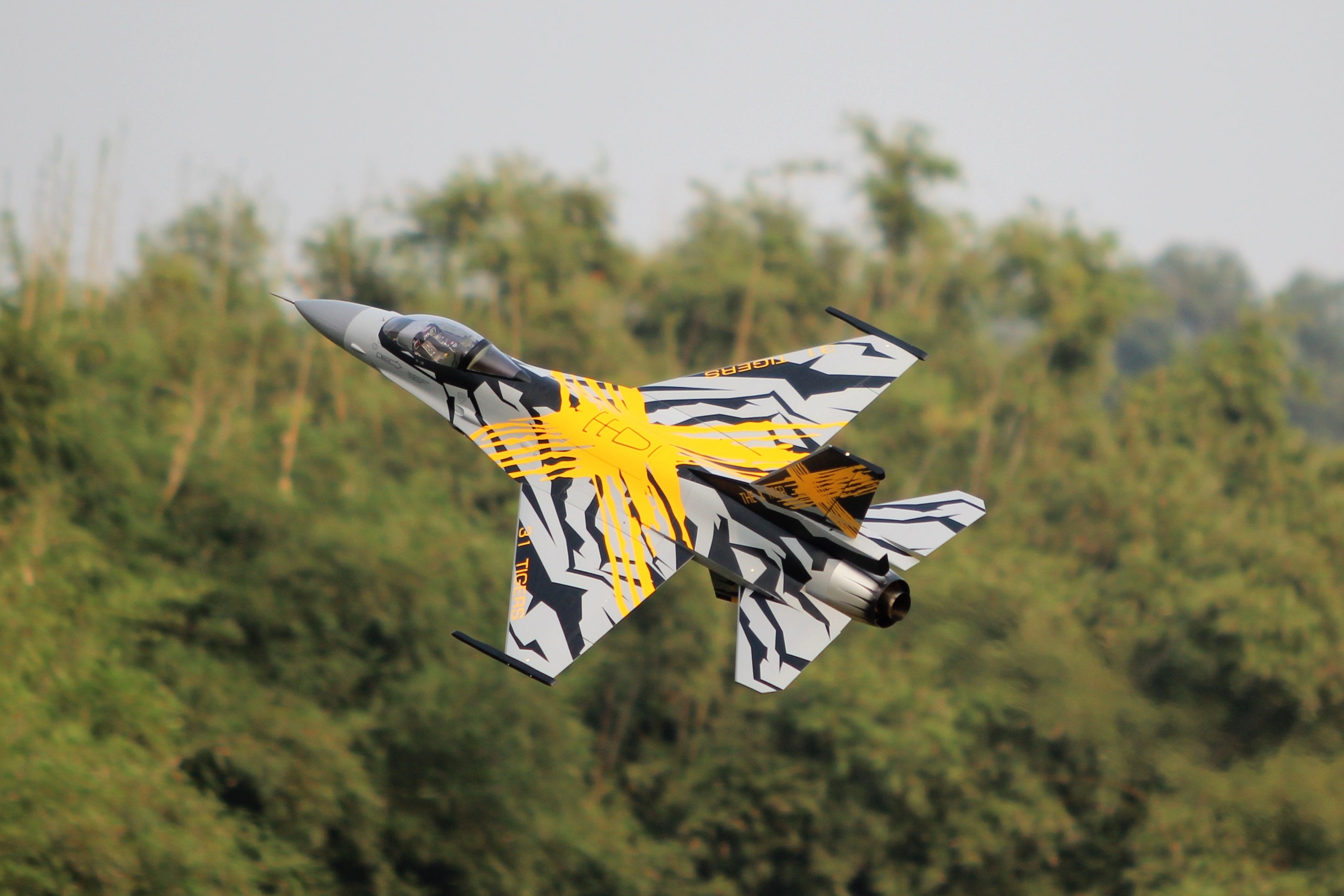

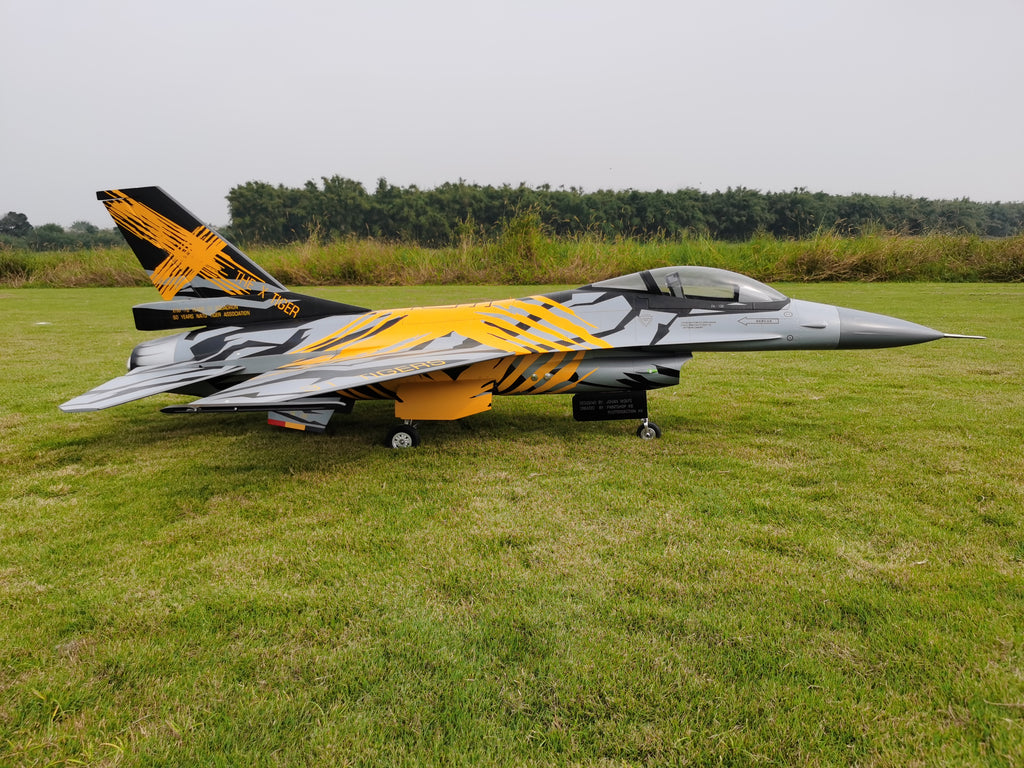

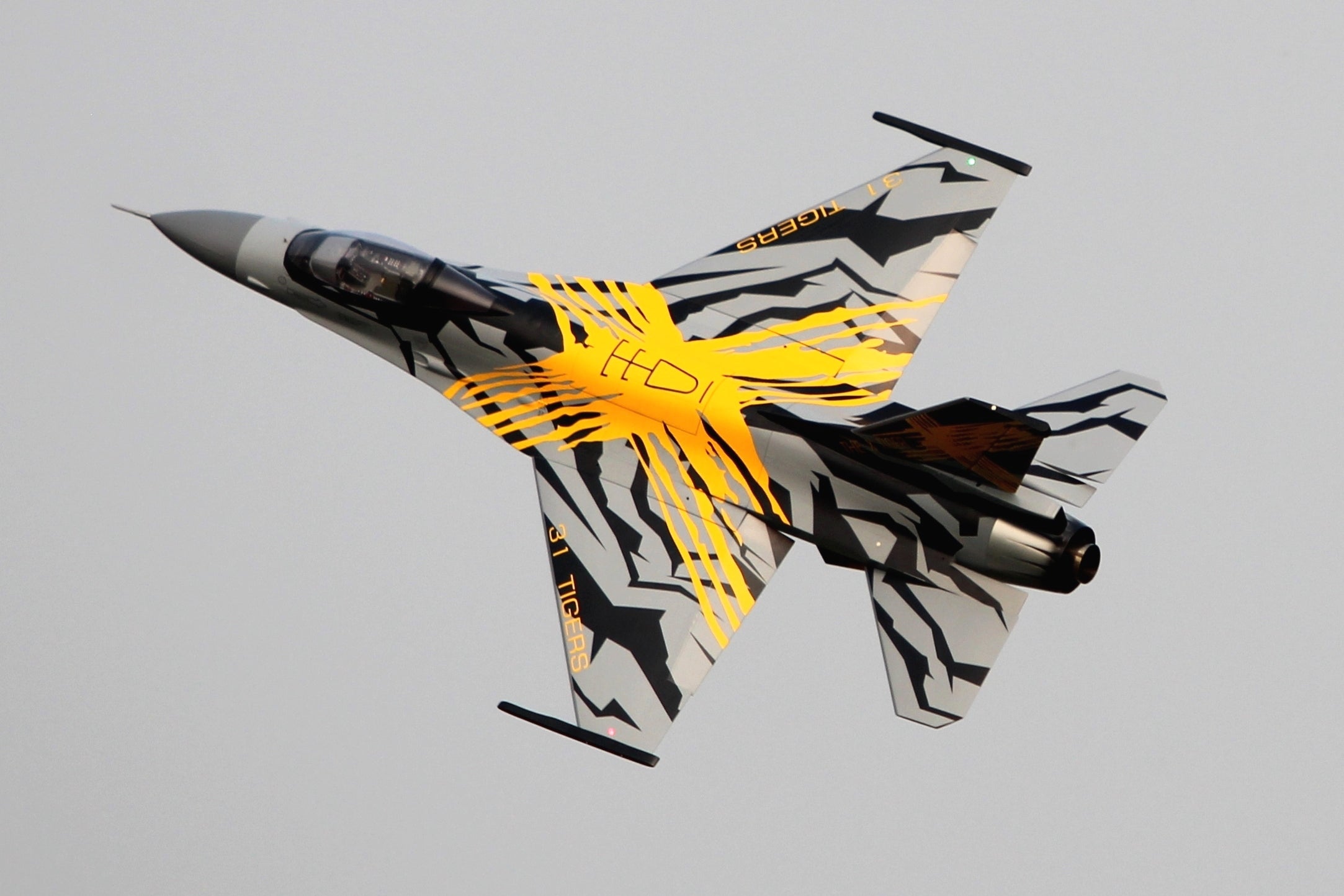

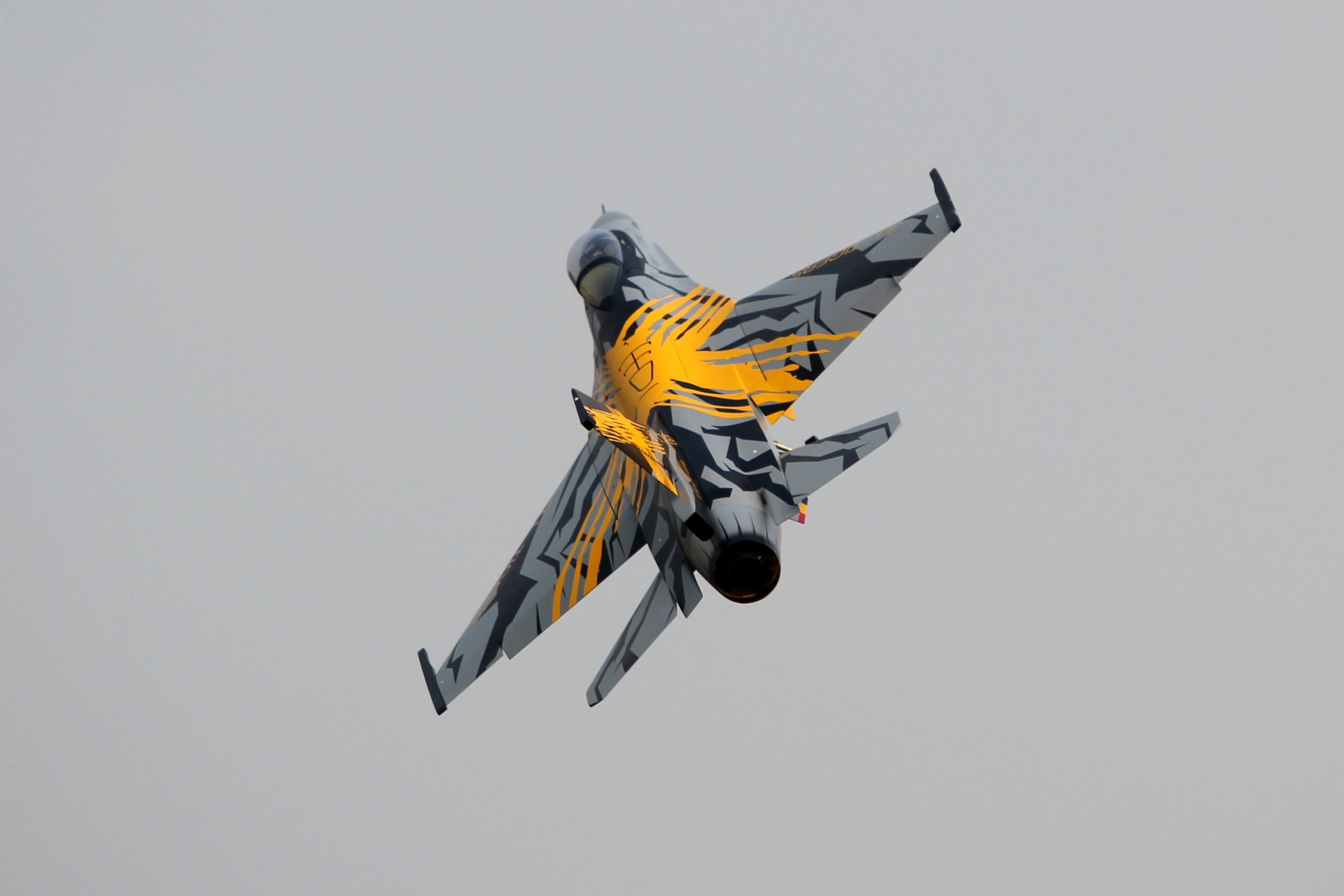

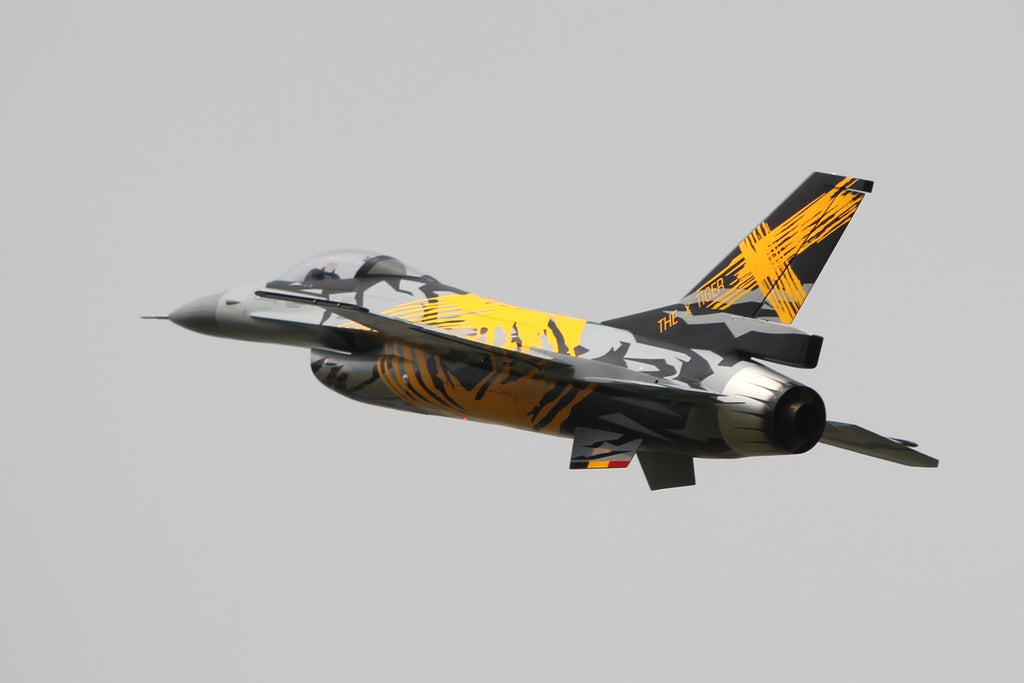

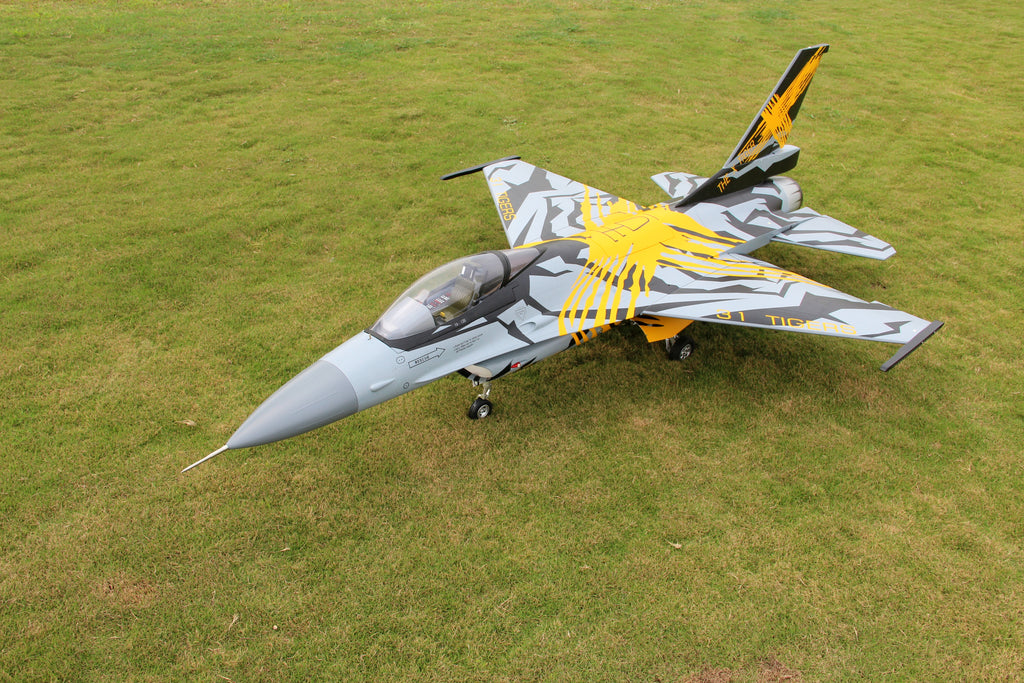

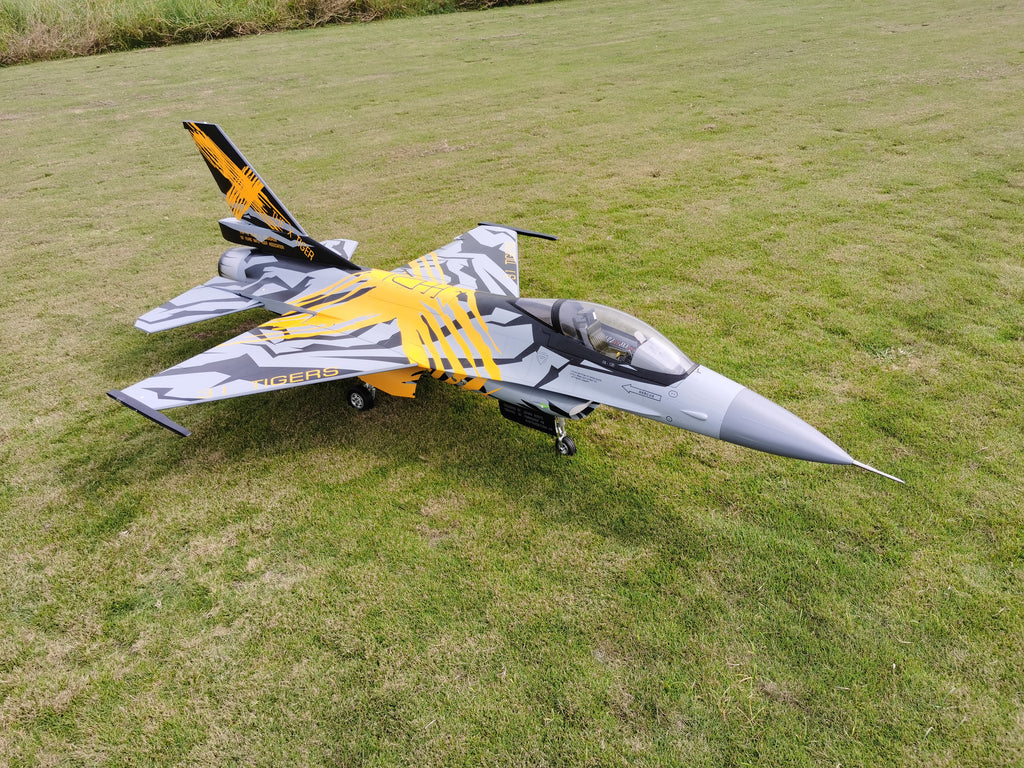

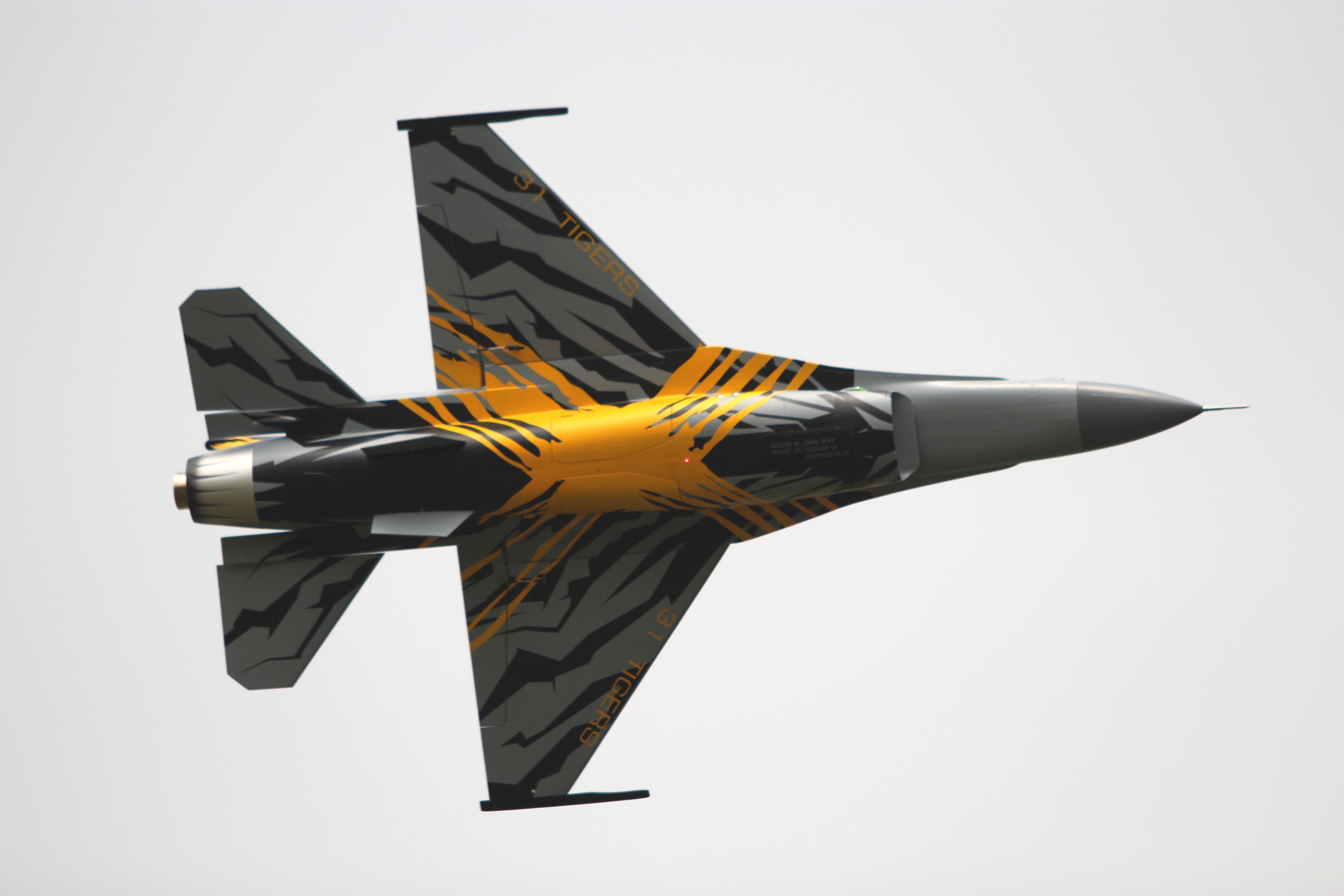

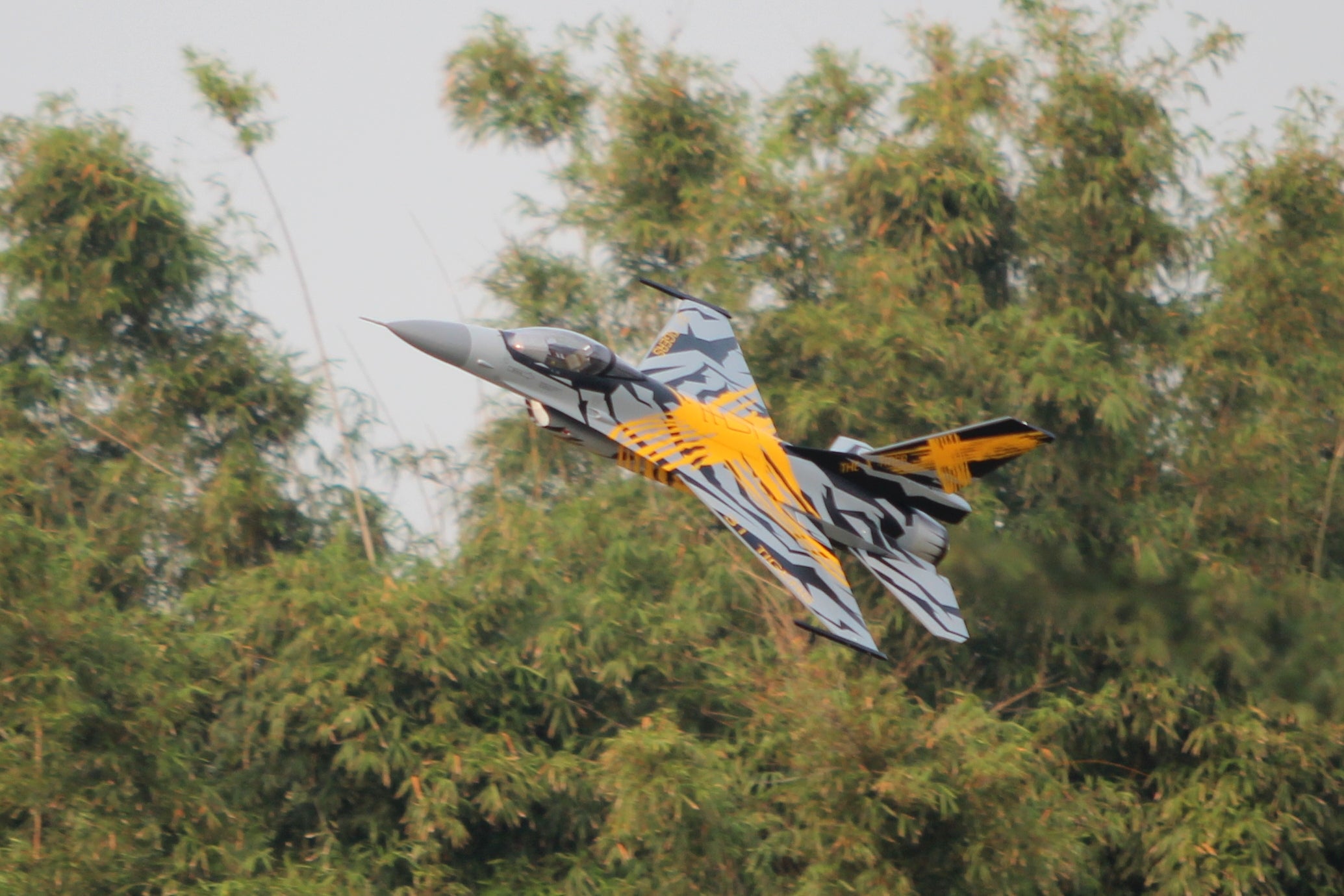

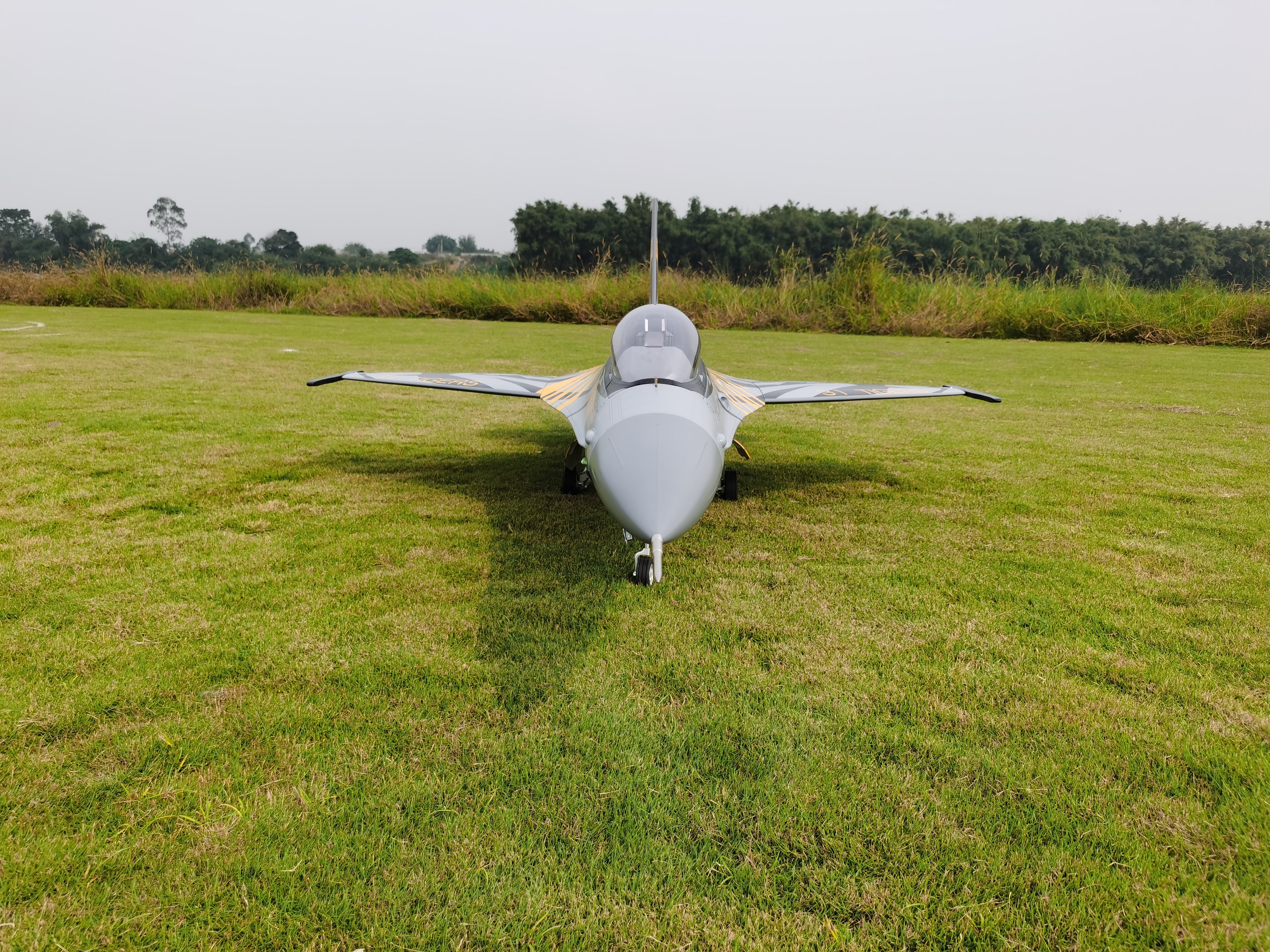

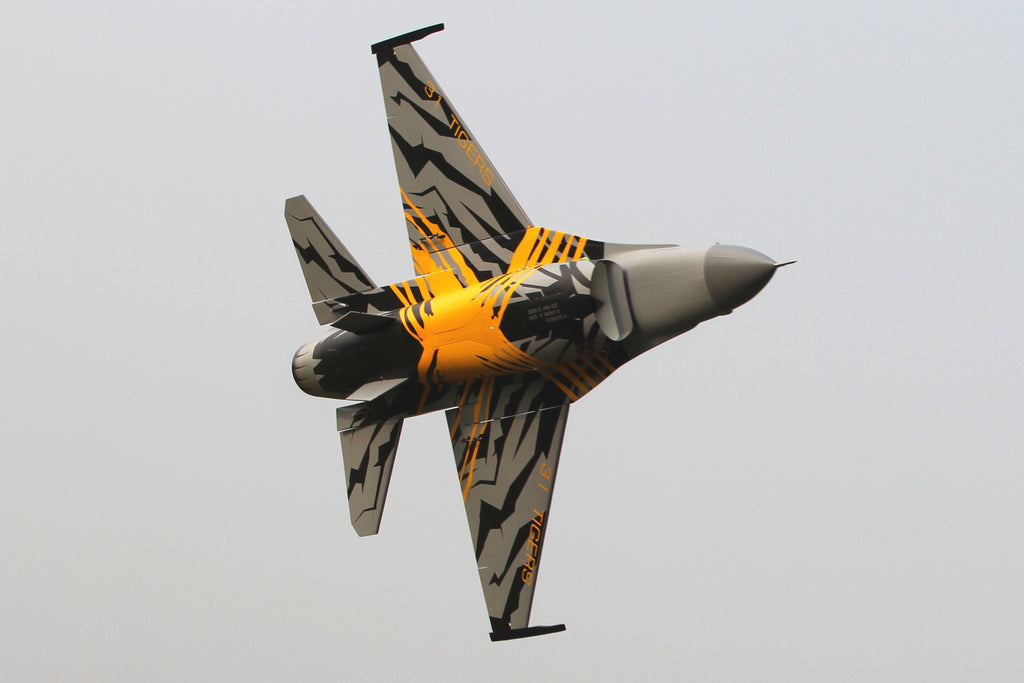

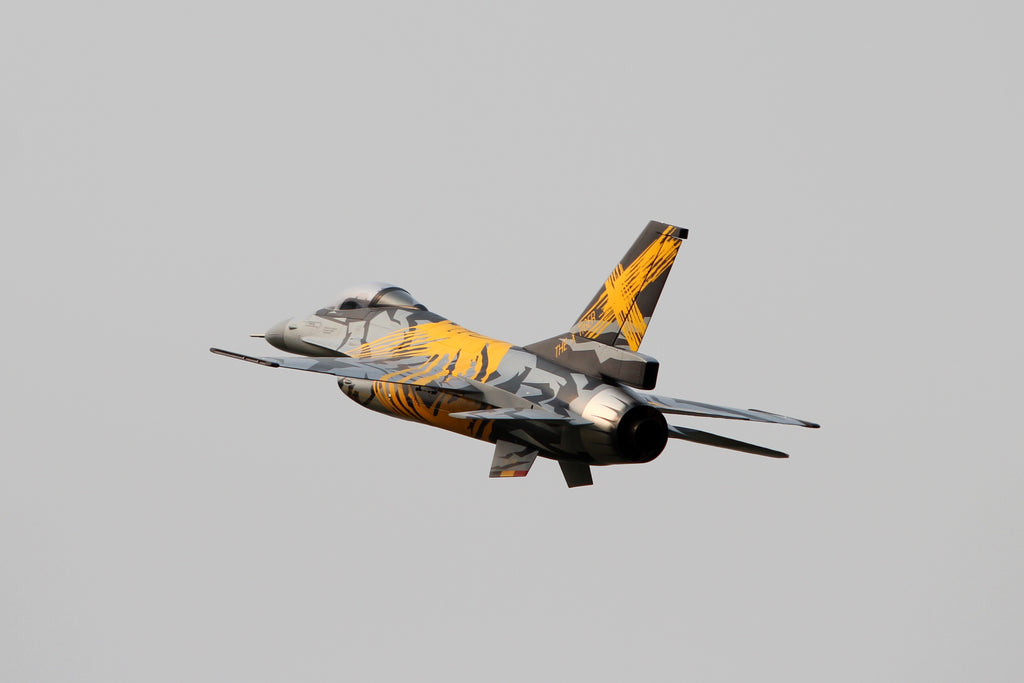

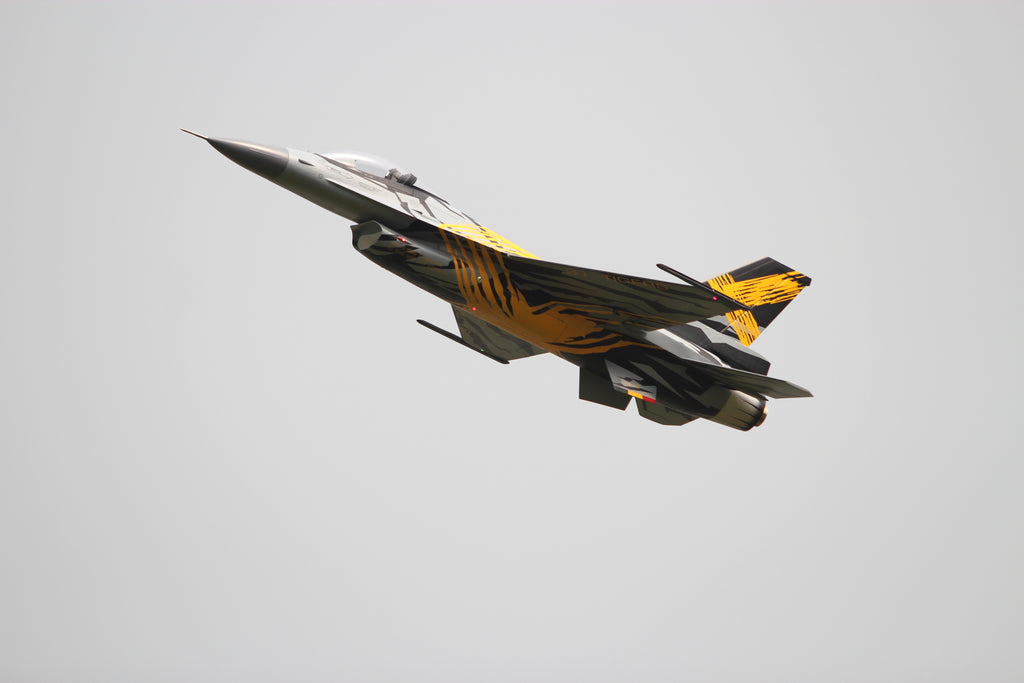

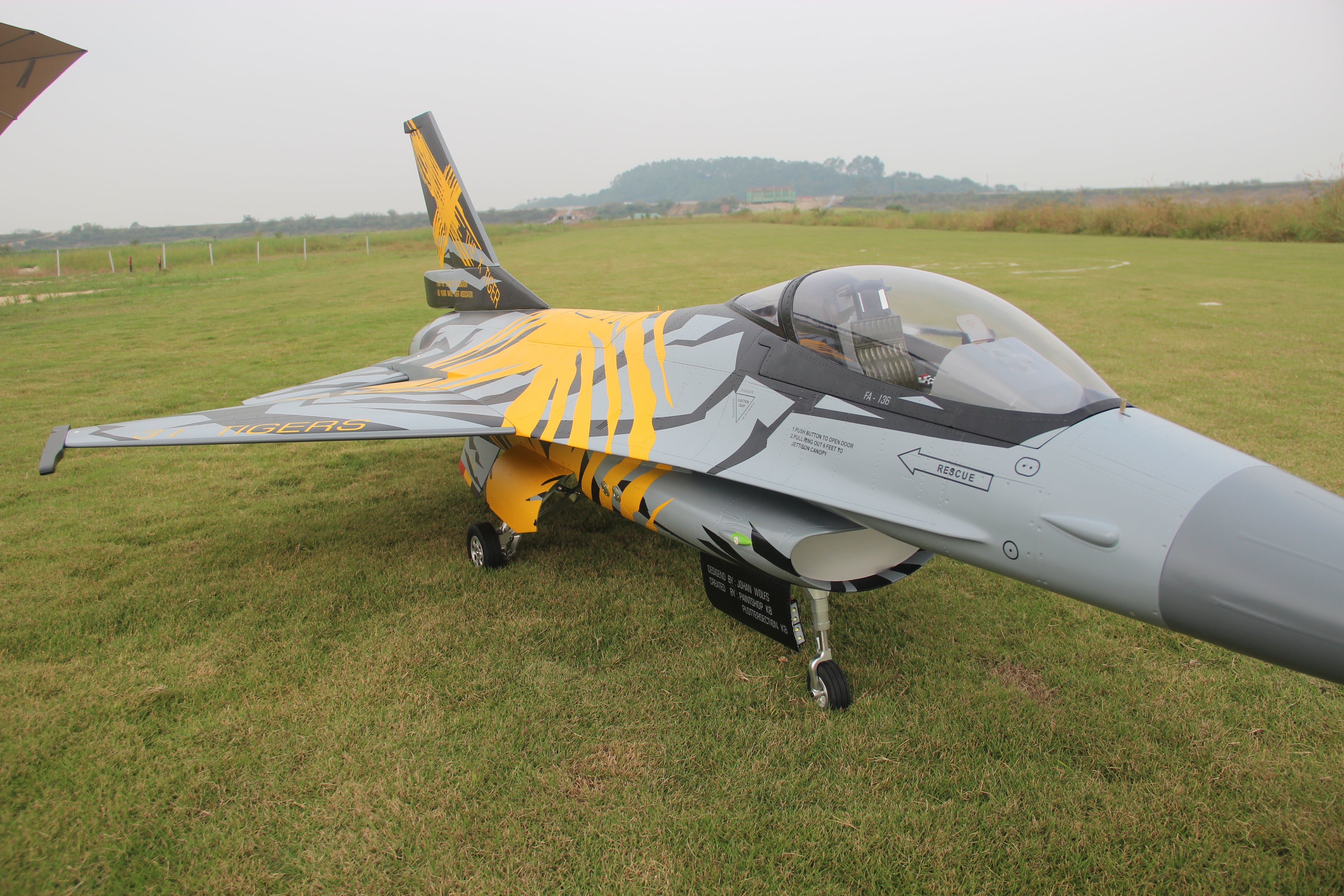

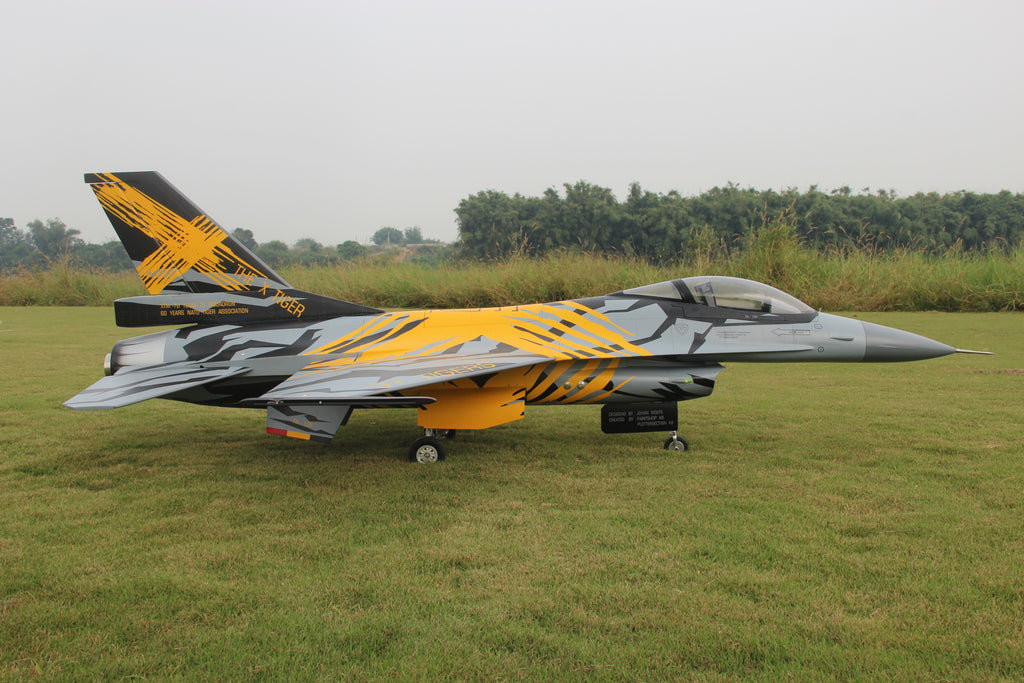

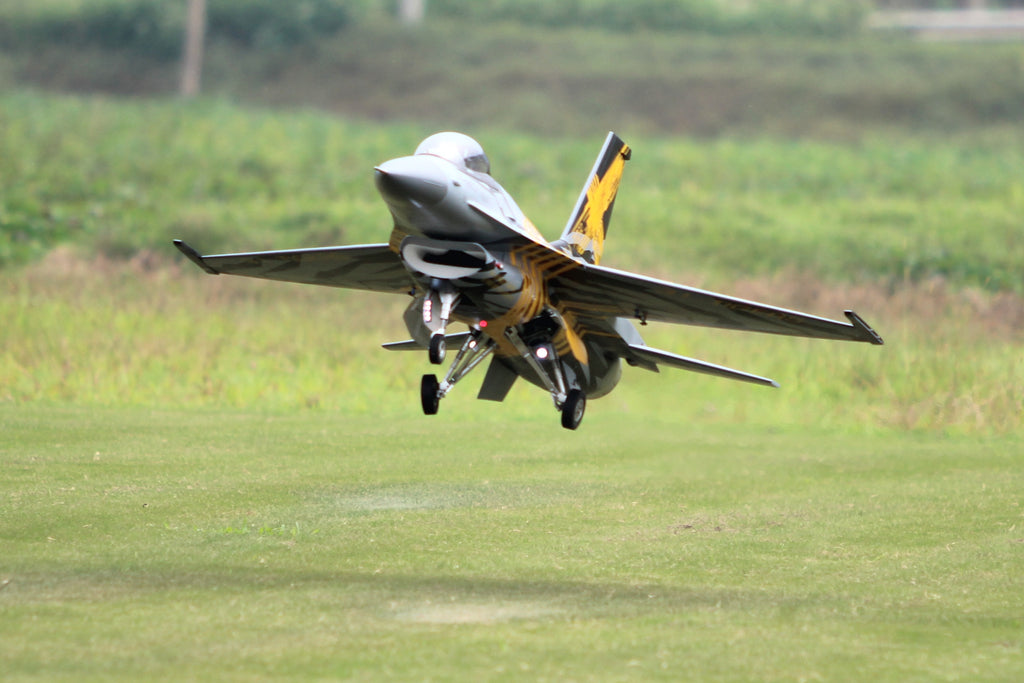

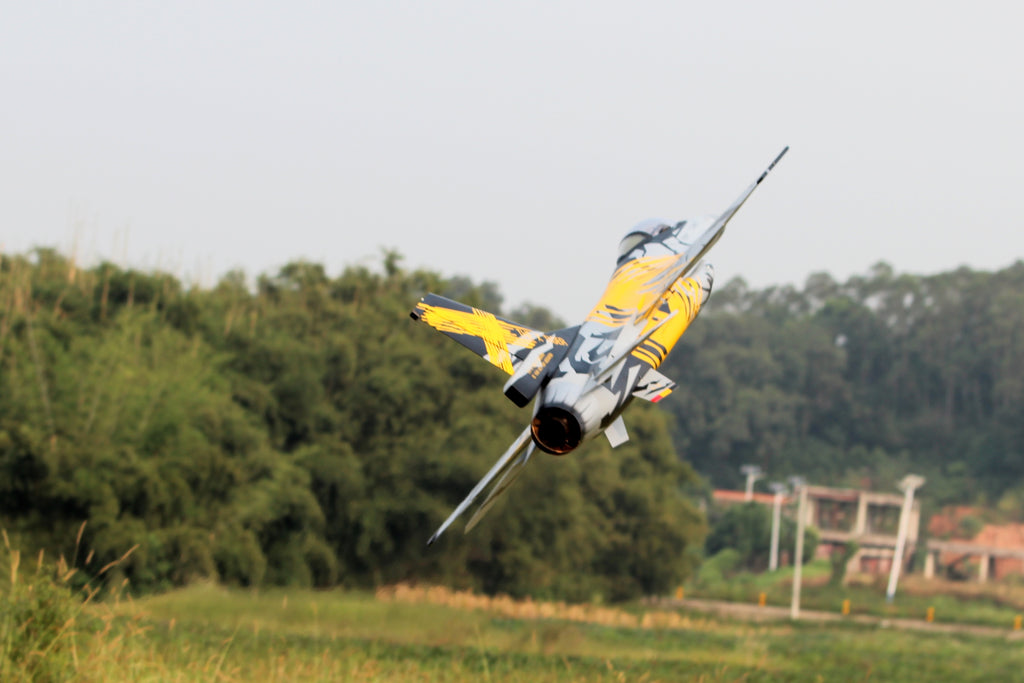

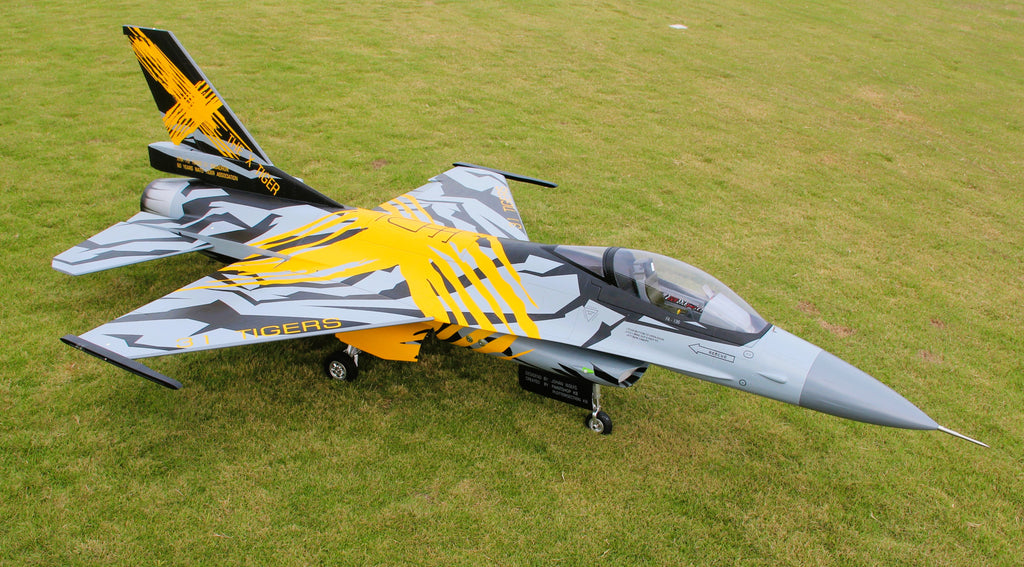

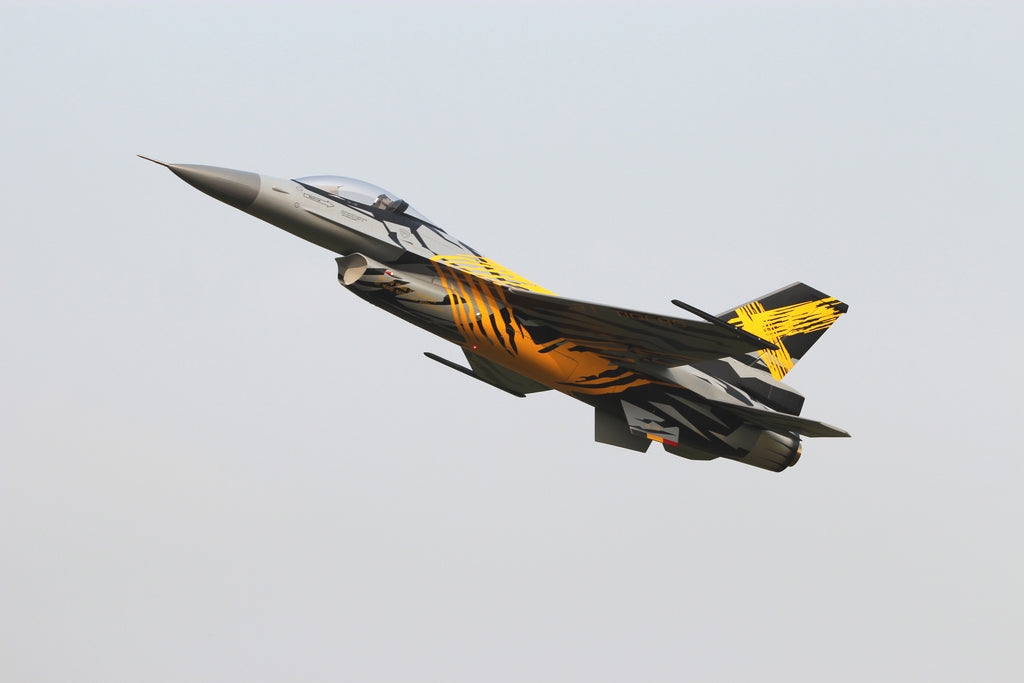

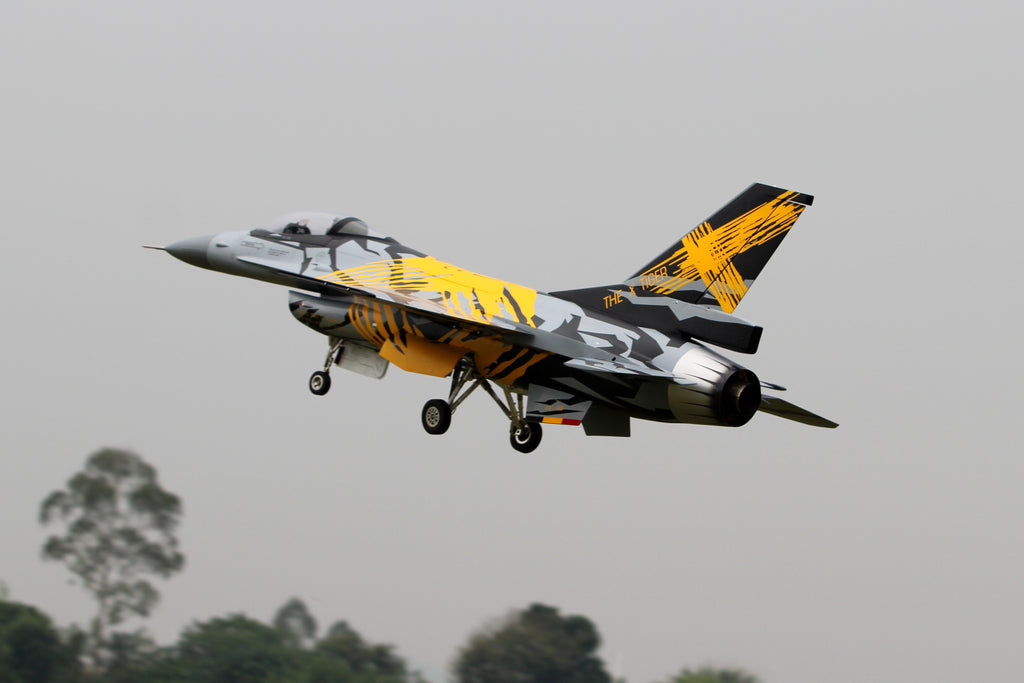

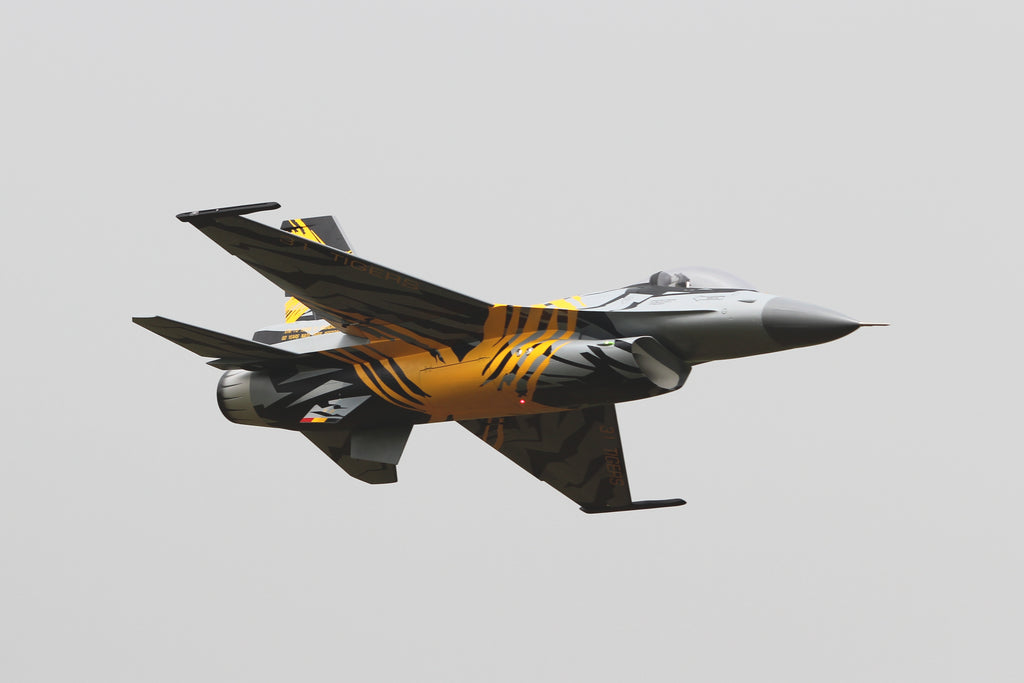

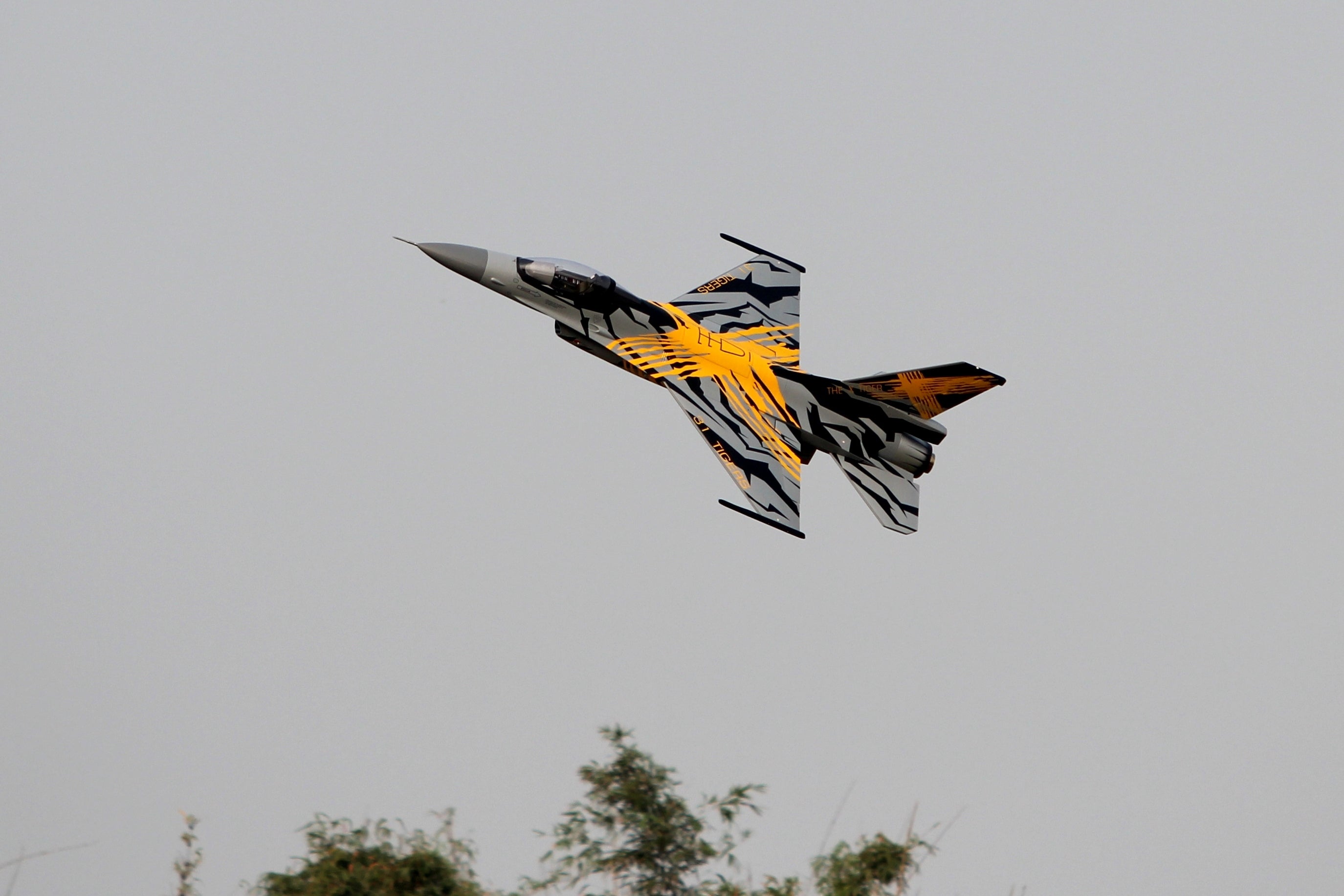

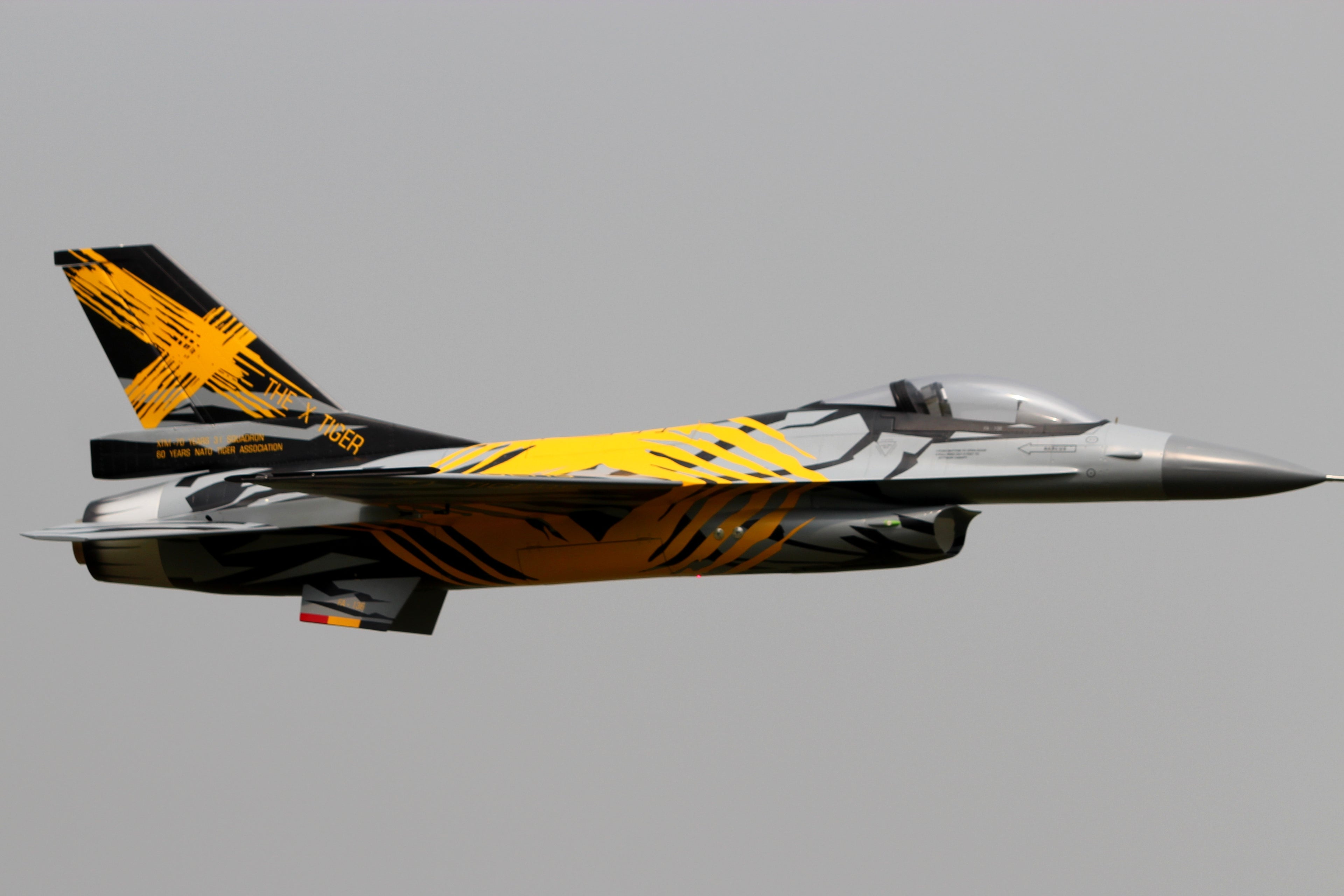

Pilot rc 1/5 F16 3.06m retract version (landing gear combo)
Comes with: normal tail pipe,UAT, fuel tank, fuel dot, fuel tank vent,

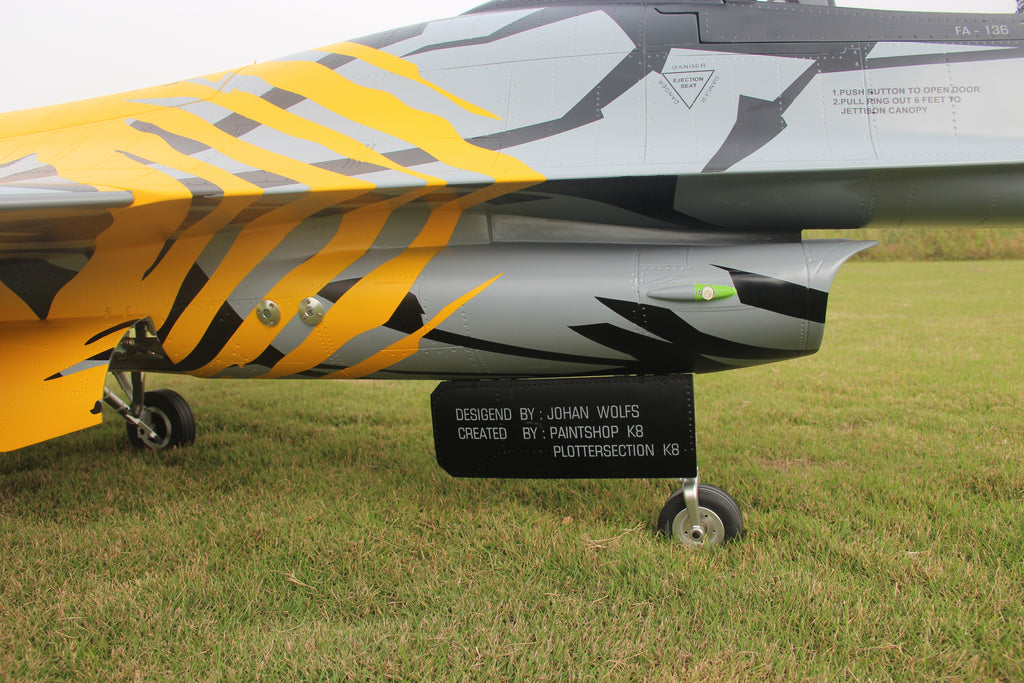

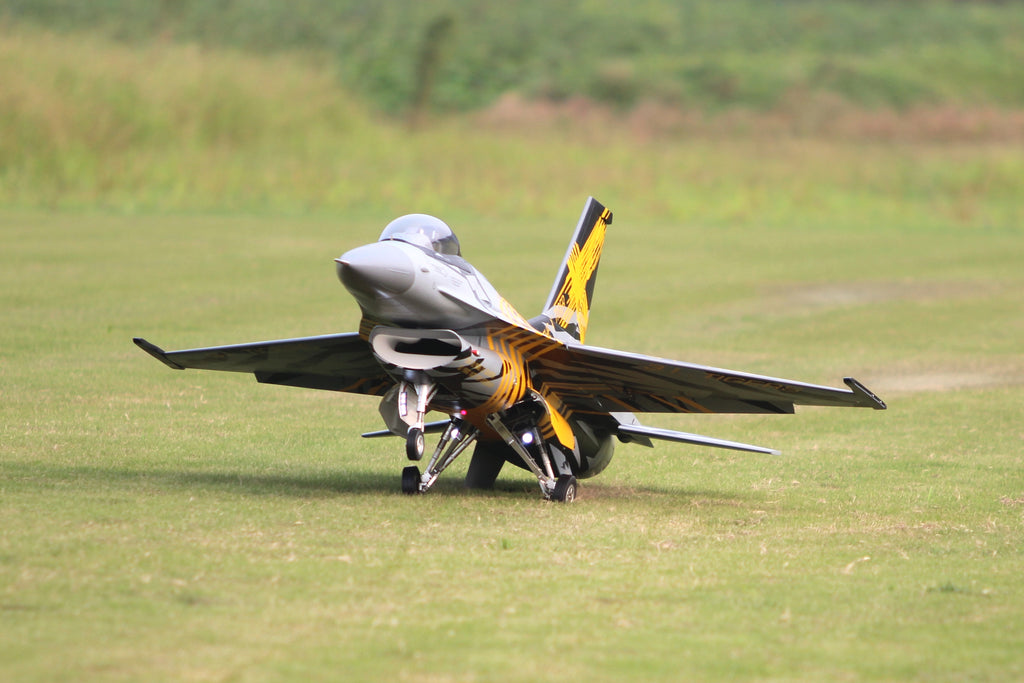

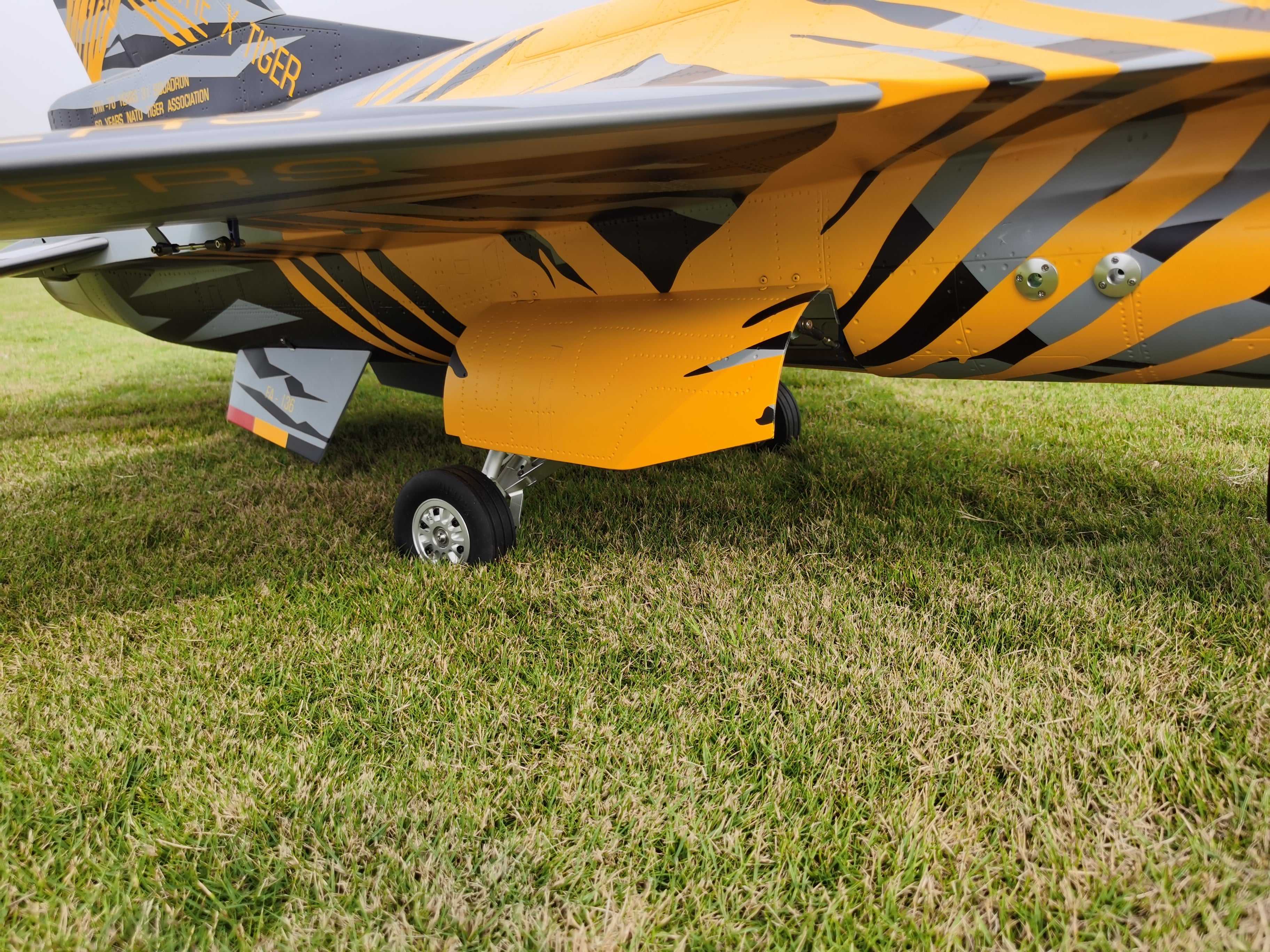

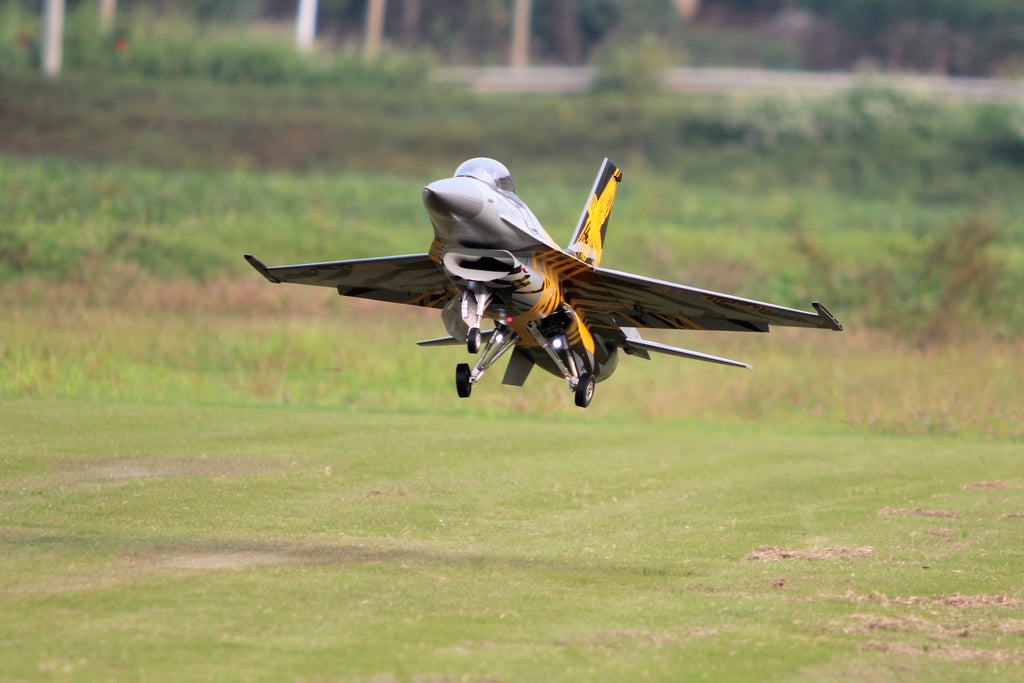

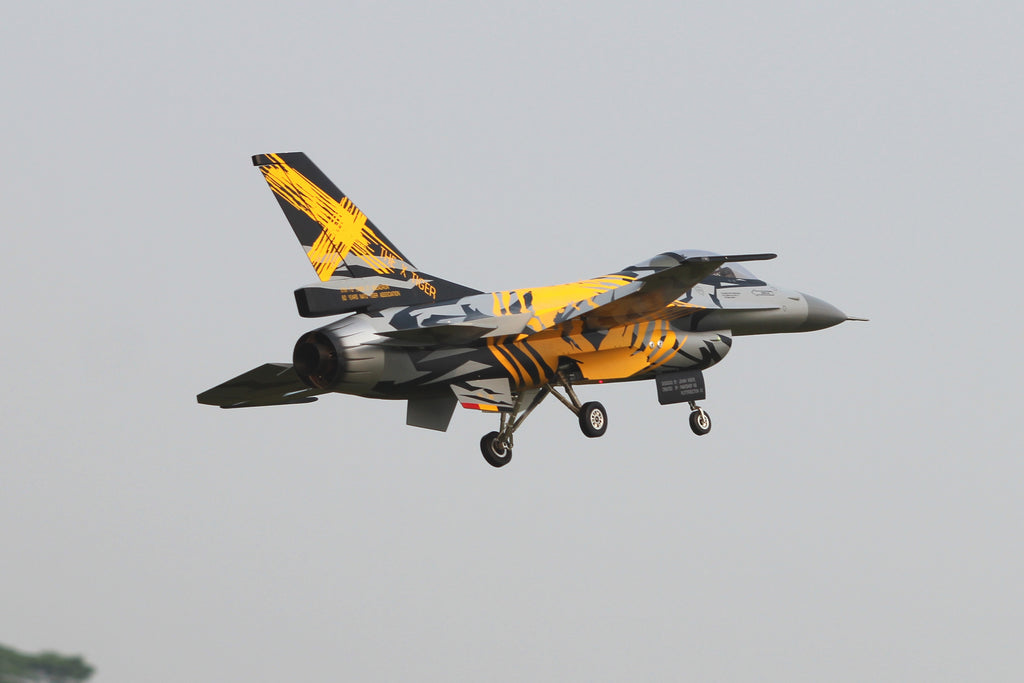

servo extension wire, hardware. Gear door preisntalled.  full electric scale retract gear set.
No Cockpit Set.


SPECIFICATIONS:

SPLIT FUSELAGE FOR EASY TRANSPORT

The entire fuselage can be split, strategically placed between turbine and thrust tube, allowing for the entire fuselage to come apart with just five screws and two connectors for easy transport to and from the field.

Front nose cone can also be removed by unscrewing the pitot tube

FEATURES:ull composite construction, lightweight and strong

• Two piece wing and two piece full flying stabiliser, both fully removeable
• Easily detachable rudder for easy transport
• Two piece fuselage, with the split strategically placed to allow daily removal of tail section for easy transport to and from the flying field
• Easily detachable ventral fins, held in place with just two screws
• Painted outside the mold so no seam lines

INCLUDED HARDWARE:

• Complete air frame (including fibreglass control horns)
• Carbon fibre wing-tubes, integrated into each wing
• Servo extension leads

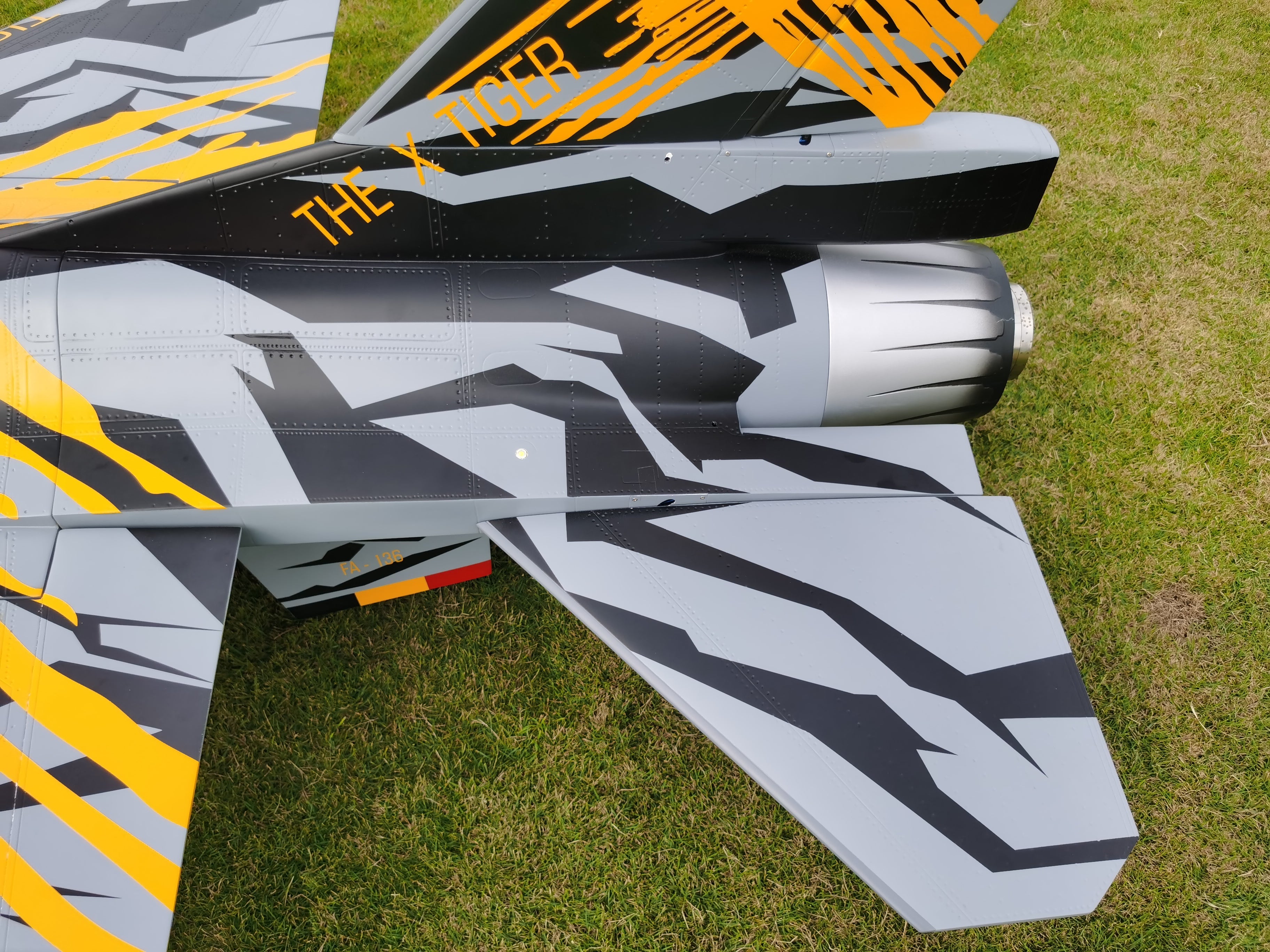

• Fixed Dual wall thrust pipe (for 200-320N turbines)
• Fuel tank (6600ml) and UAT (250ml)
• Pre-prepared pushrods with ball links
• Pre-glued control horns

OPTIONAL EXTRAS:

• (Pilot-RC electric landing gear and brake set)
• Vector thrust pipe (Elevator and Rudder axis)
• 1600ml smoke tank
• Smoke system (includes kevlar tank, smoke pump, injection pipe and fuel tubing)

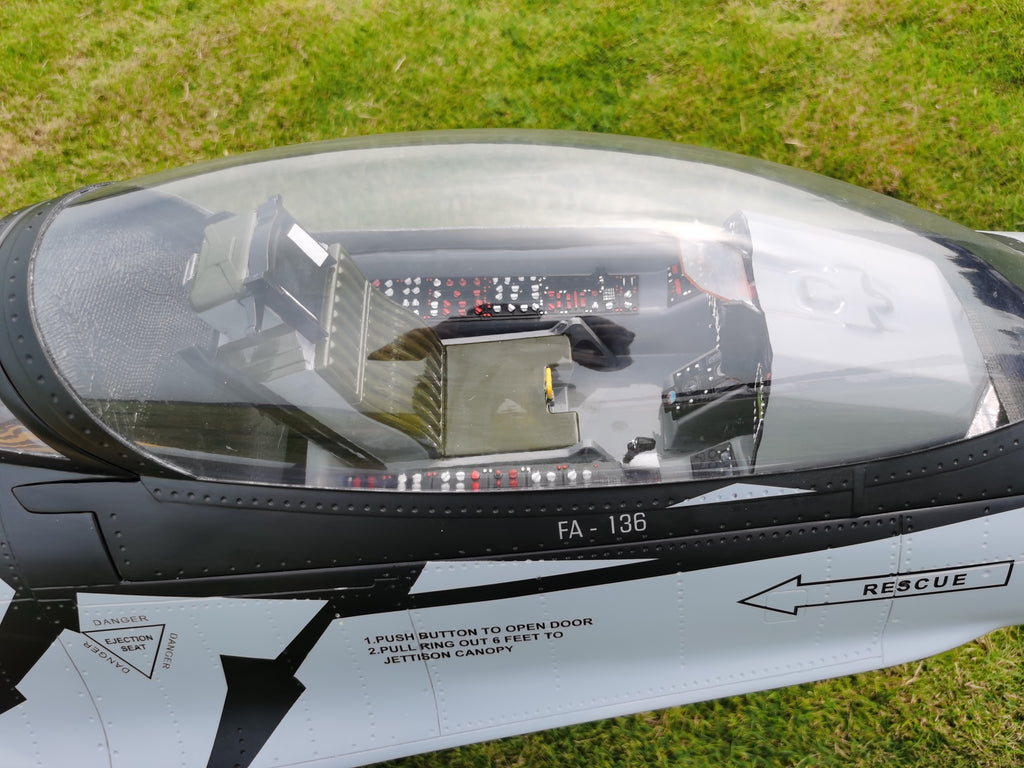

• Scale cockpit (minus pilot)

ALSO AVAILABLE:

Landing gear combo:

Pilot-RC 1/5 F16 kit with gear doors installed
Pilot-RC electric landing gear & brakes set

Requires servos and turbine of choice.
Does not include vector thrust pipe or cockpit set

Turbine Ready Combo:

Pilot-RC 1/5 F16 kit with gear doors installed
Pilot-RC electric landing gear & brakes set installed
Pilot-RC servos and extension wires, all installed
Standard dual wall thrust pipe, UAT, Kevlar fuel tank, fuel dot, fuel tank vent, all installed

Requires your own turbine of choice.
Does not include vector thrust pipe, smoke system, navigation lights or cockpit set

Turbine Ready – PRO COMBO:

Pilot-RC 1/5 F16 kit with gear doors installed
Pilot-RC electric landing gear & brakes set installed
Pilot-RC servos and extension wires, all installed
Vector thrust pipe, UAT, Kevlar fuel tank, fuel rod, fuel tank vent, all installed
Smoke system, navigation lights and cockpit set, all installed

Requires your own turbine of choice.

REQUIRED HARDWARE:

Turbine: 200-320N

Servos: (x9 + 2 optional)

x5 super high torque (minimum 35kg) // Uses x1 per aileron, x1 per elevator, x1 on rudder

x4 middle size servo, 35 x 15 x 30mm (minimum 16kg) // Uses x3 for gear doors and x1 for steering

+2 super high torque (minimum 35kg) if installing vector thrust pipe

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.


BASIC SETUP:

Control throws:

Aileron: 45mm up / 45mm down – 40% Expo
Rudder: 50mm left / 50mm right – 50% Expo

Elevator: 35mm up / 35mm down – 45% Expo
Measured from the front of the leading edge of the elevator.

Vector thrust if installed: Maximum deflection – 50% Expo

The CG is 240mm from the front leading edge on the root of the wing

Pilot rc 1/5 F16 instalation photos HERE
