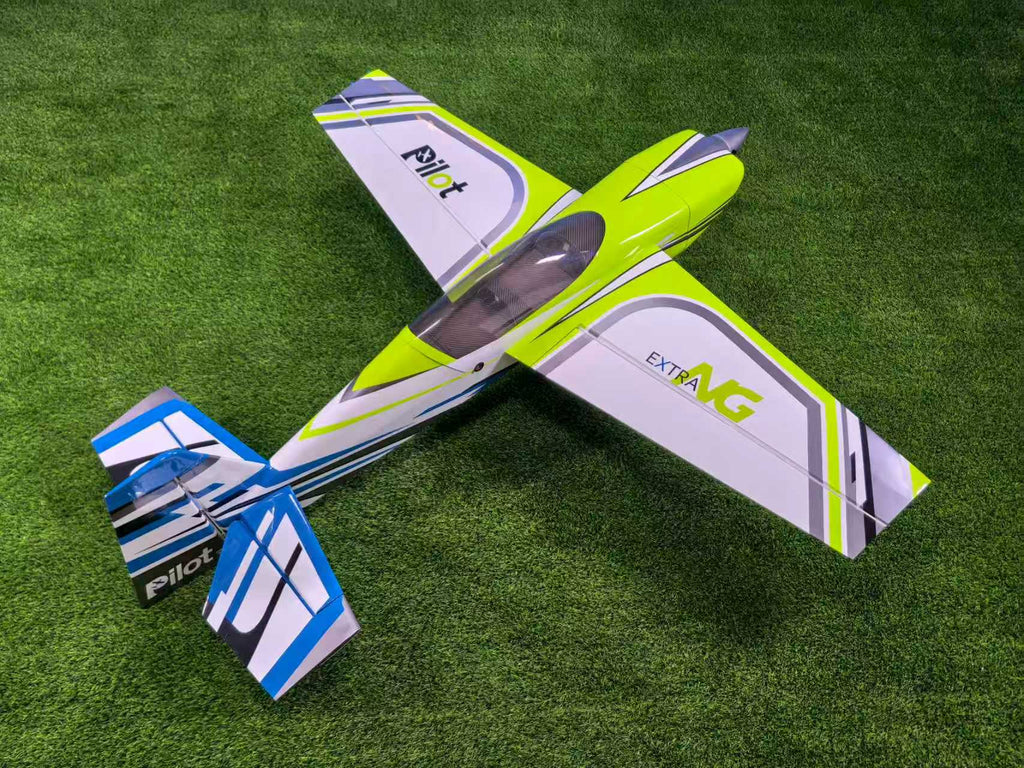

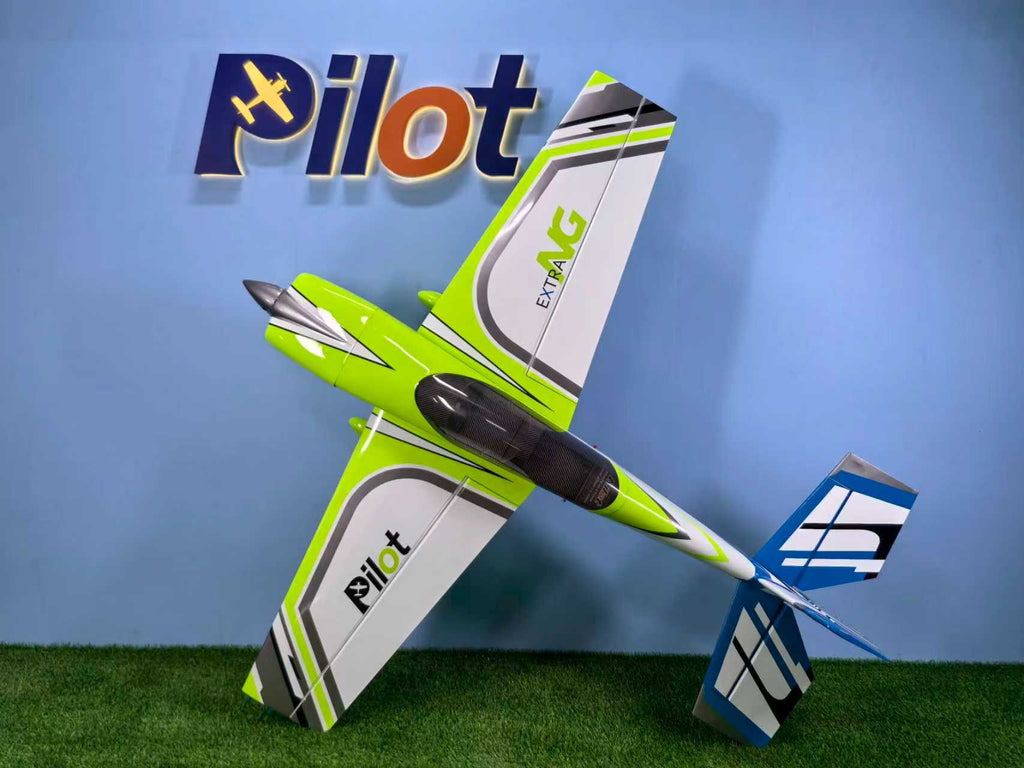

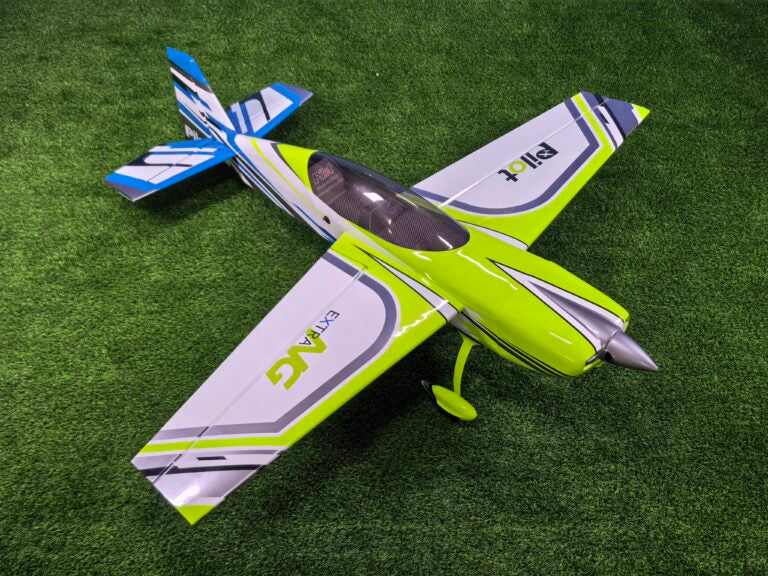

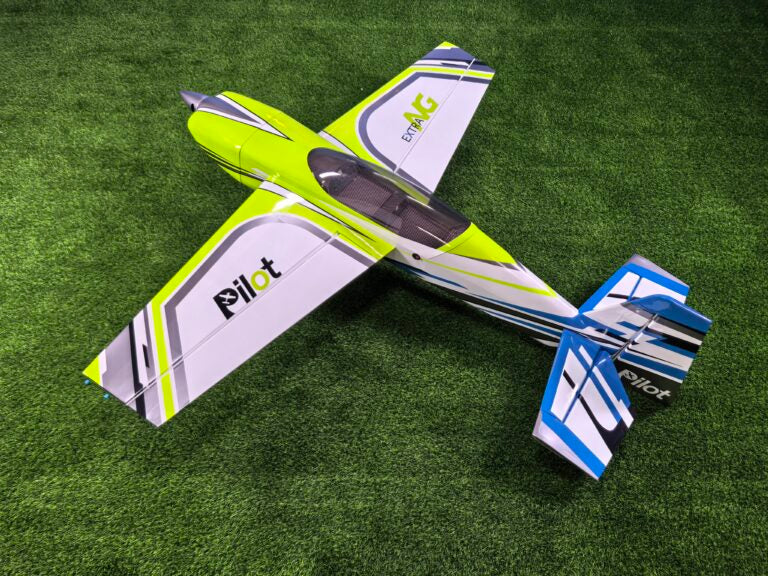

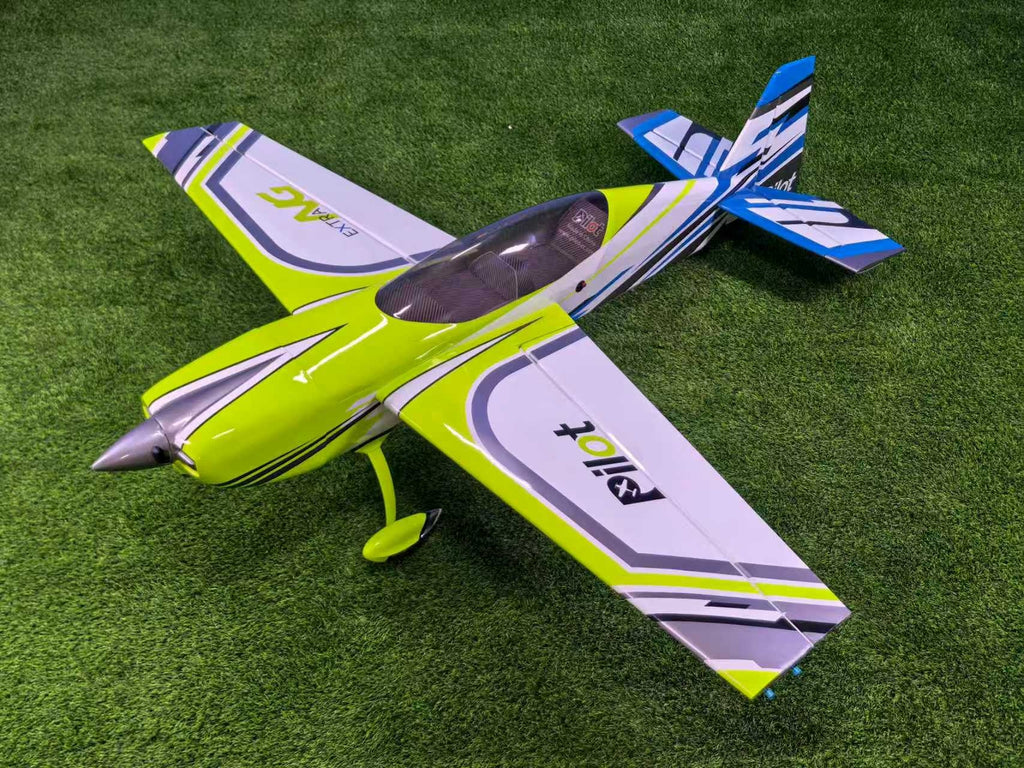

The Extra NG is the latest evolution of the legendary Extra family, pushing the boundaries of precision and agility further than ever before. At rc-planes.nl, we know you want to spend your time in the air, not in the workshop. That’s why we love Pilot-RC’s latest innovations: this high-quality kit is designed to go from your car to the clouds in just minutes. It’s a bird you can rely on for strength, extreme maneuvers, and—most importantly—pure flying fun!"

SPECIFICATIONS:

FEATURES:

Why the Pilot-RC Extra NG stands out:

• Next-Gen Construction: Featuring a brand-new hybrid wood and composite build, providing a specially reinforced fuselage and wings for maximum durability.

• Patented Quick-Assembly: Spend more time flying and less time wrenching. Our patented systems for the wings, stabilizer, SFGs, and canopy allow for lightning-fast setup at the field.

• Premium Finish: Wrapped in genuine German Oracover (Ultracote) for a professional, long-lasting look.

• Built for Speed: Highly prefabricated—experienced builders can have this bird flight-ready in less than a day.

• Clean Aesthetics: The internally mounted cowling means no ugly screws on the side, keeping the lines of your plane sleek and scale.

• Thoughtful Engineering: Featuring pre-installed pinned hinges, laser-engraved motor mounts, and an open-structure design for effortless canister installation.

What’s Included?

We’ve packed this kit with high-quality hardware to get you in the air faster:

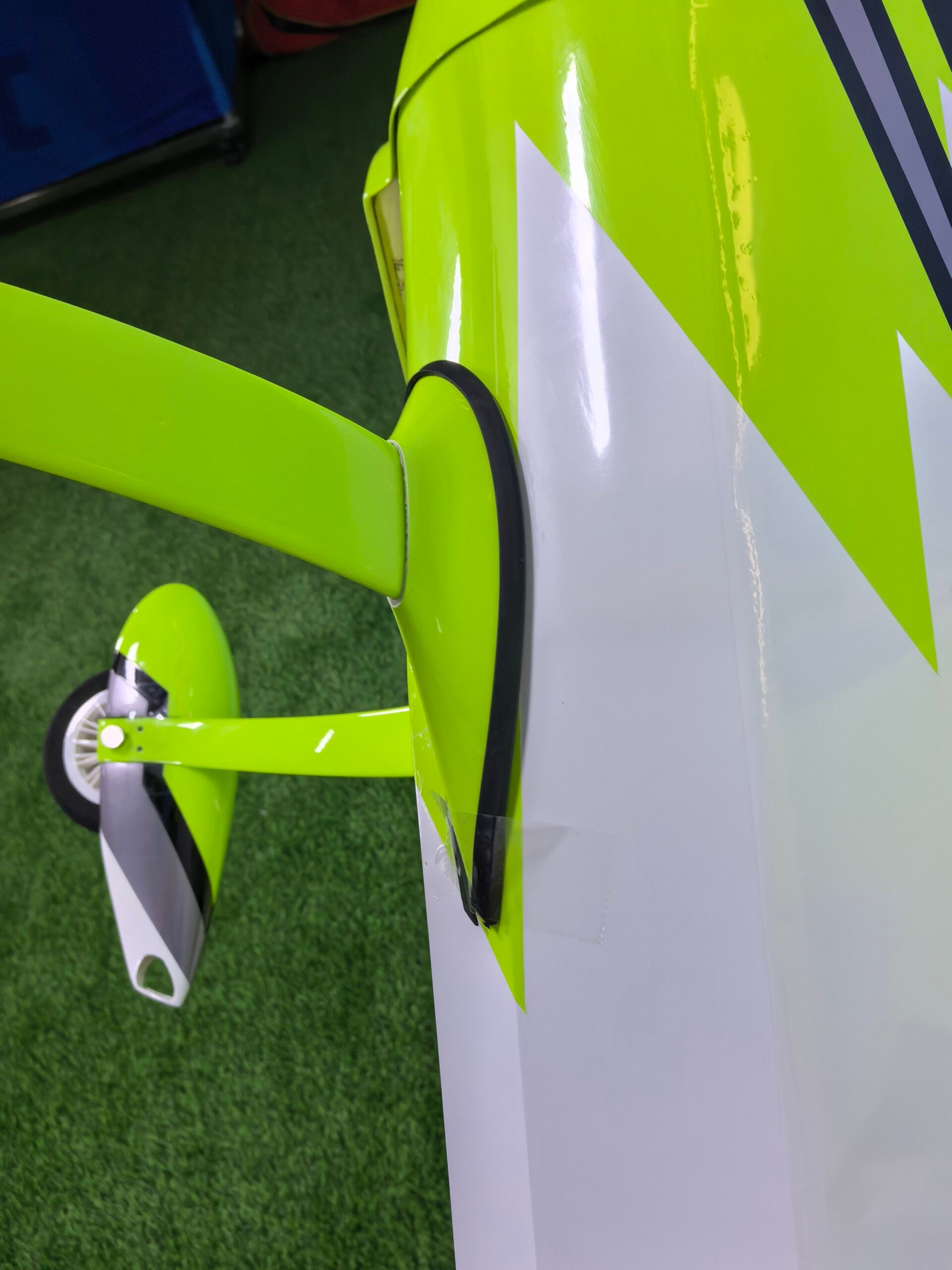

• Complete Airframe: Featuring premium carbon fiber main landing gear, tail-gear assembly, and wing tubes.

• Smart-Fit Cowl System: Includes a "Spare" transparent plastic lower cowl—the perfect template for marking out precise cooling and engine cuts.

• Factory Prefabricated: Pre-installed hinges and a pre-mounted canopy save you hours in the workshop.

• Fuel System Ready: Includes a pre-installed fuel tank with tubing, fuel dot, and breather valve.

• Carbon Spinner: A matching high-grade carbon fiber spinner is included as standard.

• Heavy Duty Hardware: Fiberglass control horns, wheels, axles, and pre-prepared pushrods with high-quality ball links.

Required to Complete:

Engine: 50cc – 76cc Gas Engine (or equivalent Electric Power System).

 DLE61

DLE60 twin

Ephil X-60cc R

Ephil X-76cc T

Electric

T-Motor AM910 190KV 70-80cc 3D combo

Servos: 5 high torque plus throttle // Uses x1 per aileron, x1 per elevator half and x1 on rudder Advice the

AGF A73 40KG HV Brushless servo

AGF A80BHMF 40KG HV 0.085sec

Servo arm 40mm Pilot RC

Our Advice at RC-Planes.nl: > "If you are investing in a 50cc+ airframe and high-end electronics, don't let only a battery or a simple wire failure be the end of your plane. A PowerBox system provides the peace of mind you need to push your Extra NG to the limit."

Recommended Powerbox

Powerbox Sensor V3

Powerbox EVO

• Radio needed: 6+ channel transmitter and receiver.

To complete your build, you will also need your standard flight electronics and accessories, including a transmitter/receiver setup, propeller, flight batteries, and a power management system (Powerbox). Don't forget your high-quality extension leads and general assembly hardware to finish the job right.

EXTENSION WIRE LENGTHS:

Each aileron:
25cm
(to reach receiver direct)

Each elevator:
125cm

Rudder:
125cm

CENTER OF GRAVITY:

197mm
Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
