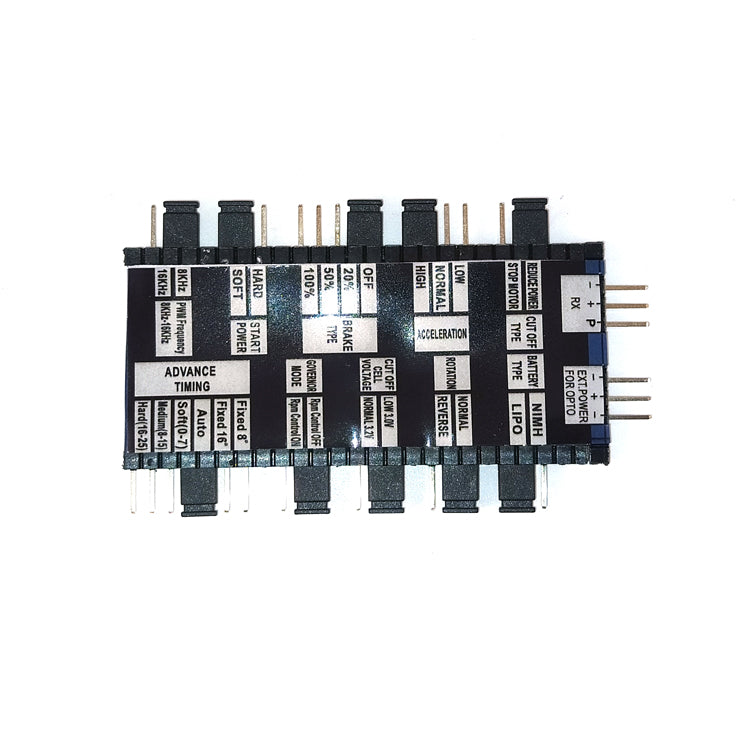

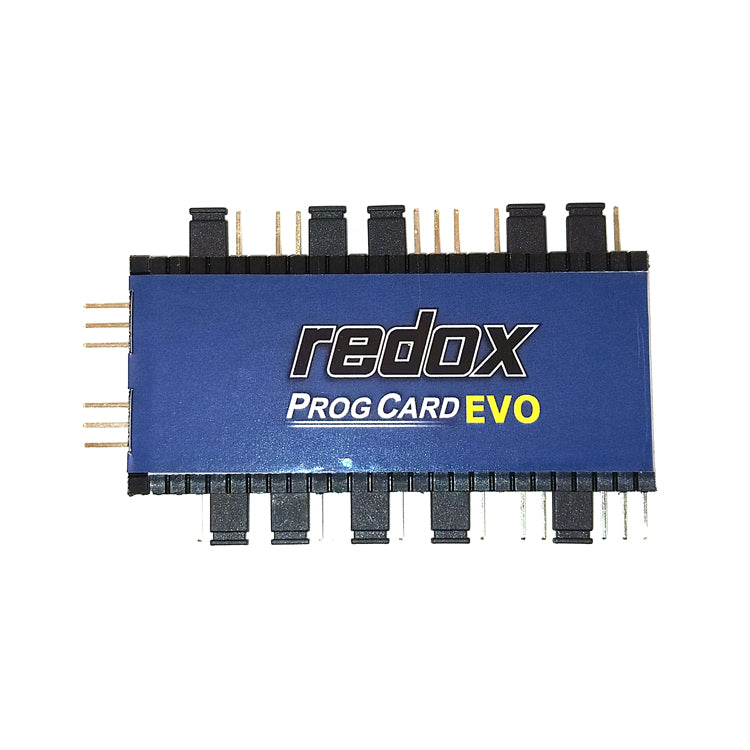

Redox EVO ProgCard
Redox programming card dedicated to Redox EVO series regulators. Thanks to the clear description of the programmable functions and easily reconnectable jumpers, it will allow you to quickly program a given function in the controller, without the need of entering the programming mode (where the options are set according to the sound key using the throttle stick). In addition, the card enables more precise settings of certain options, such as acceleration adjustment or the selection of the exact angle of timing.
Programmable options:
CUT OFF TYPE:REDUCE POWER* / STOP MOTOR
ACCELERATION: LOW / NORMAL* / HIGH
BRAKE TYPE:OFF* (wyłączony) / 20% / 50% / 100%
START POWER:HARD* / SOFT
PWM Frequency:8KHz* / 16KHz
BATTERY TYPE: LIPO* / NIMH
ROTATION:NORMAL* (CW) / REVERSE (CCW)
CUT OFF CELL VOLTAGE:LOW 3.0V / NORMAL 3.2V*
GOVERNOR MODE: RPM CONTROL OFF* / RPM CONTROL ON
ADVANCE TIMING: FIXED 8º / FIXED 16º / AUTO* / SOFT 0-7º / MEDIUM 8-15º / HARD 16-25º
Options marked with asterisk [*] are the default ones.
