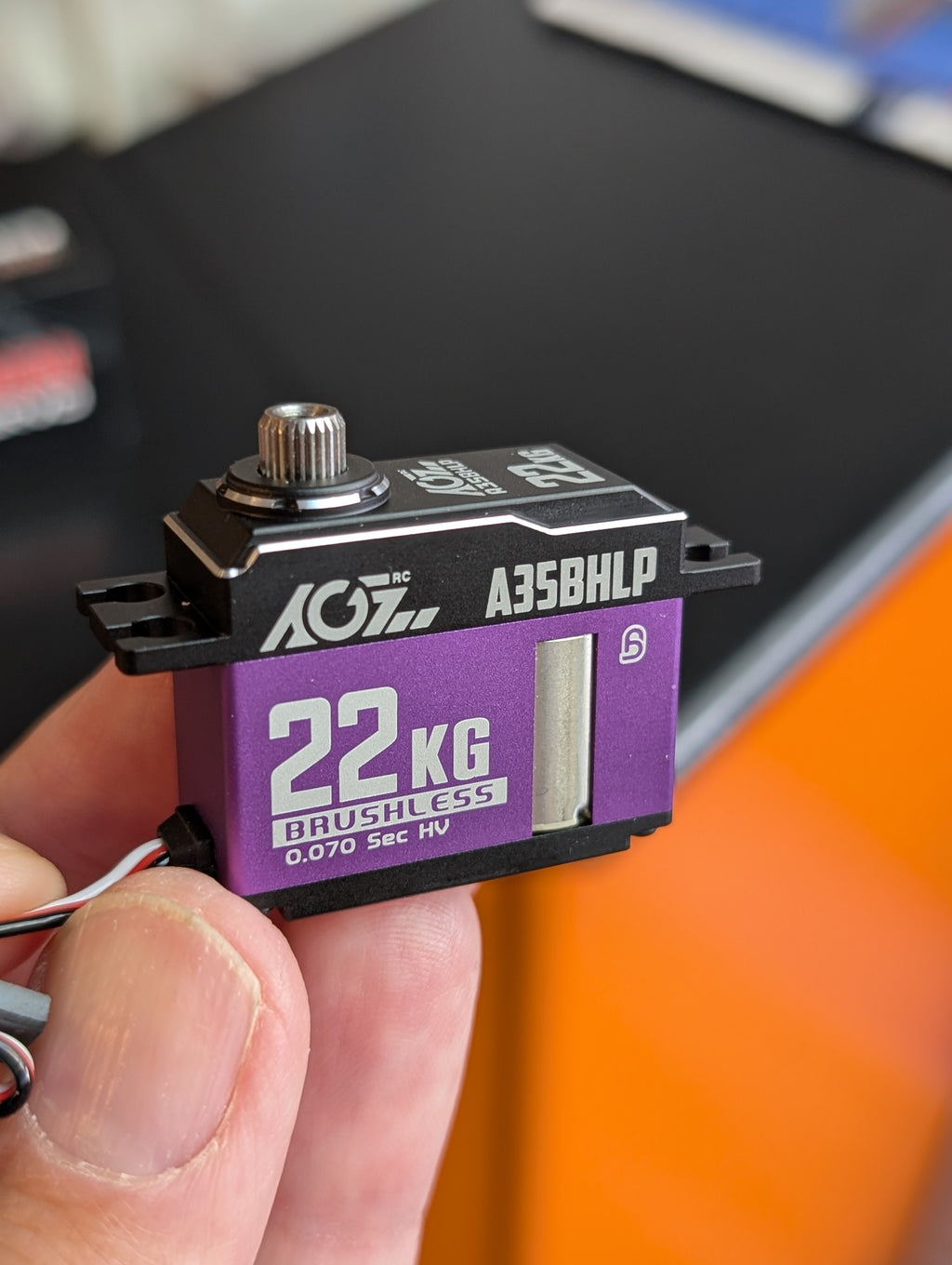

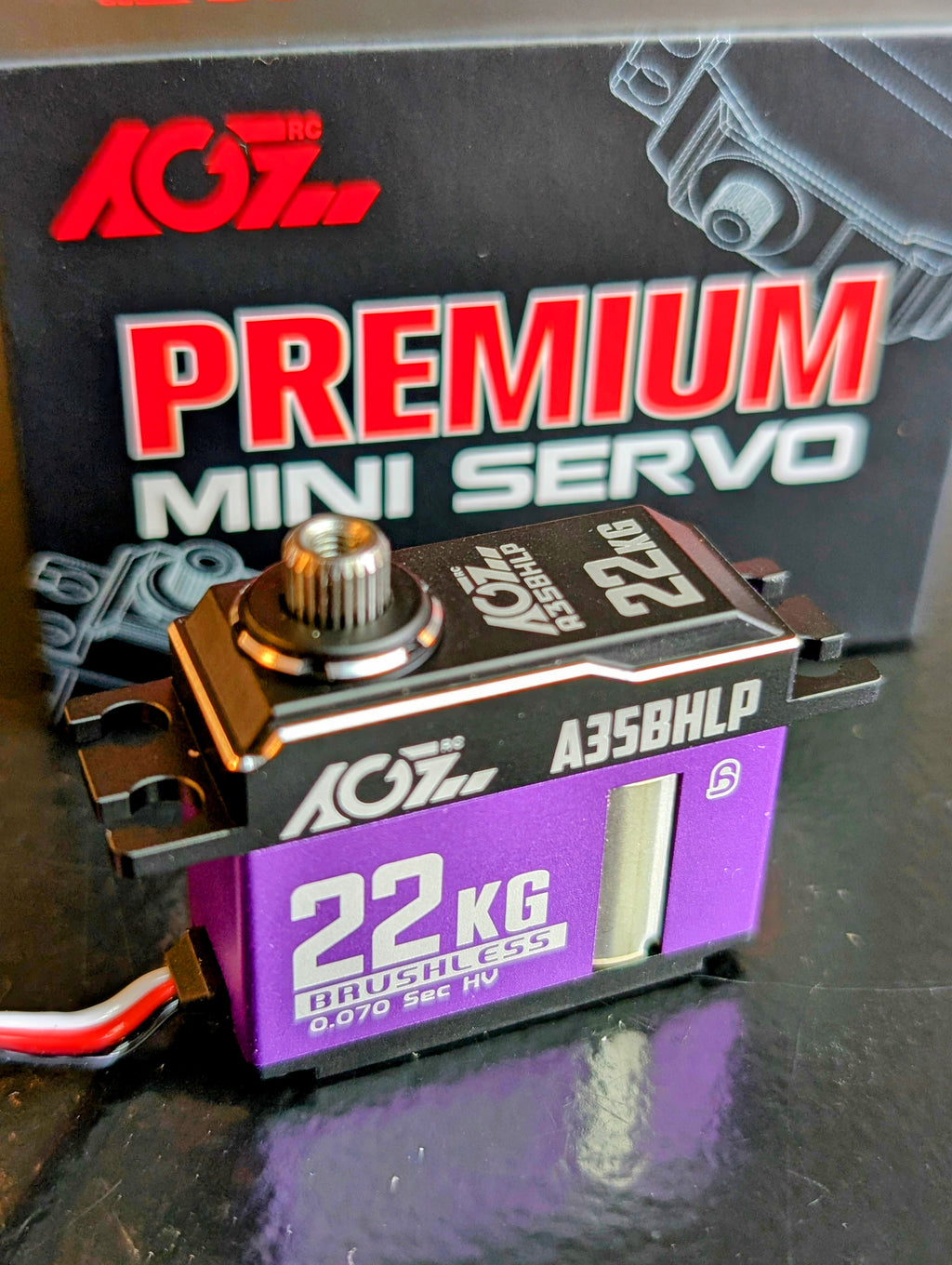

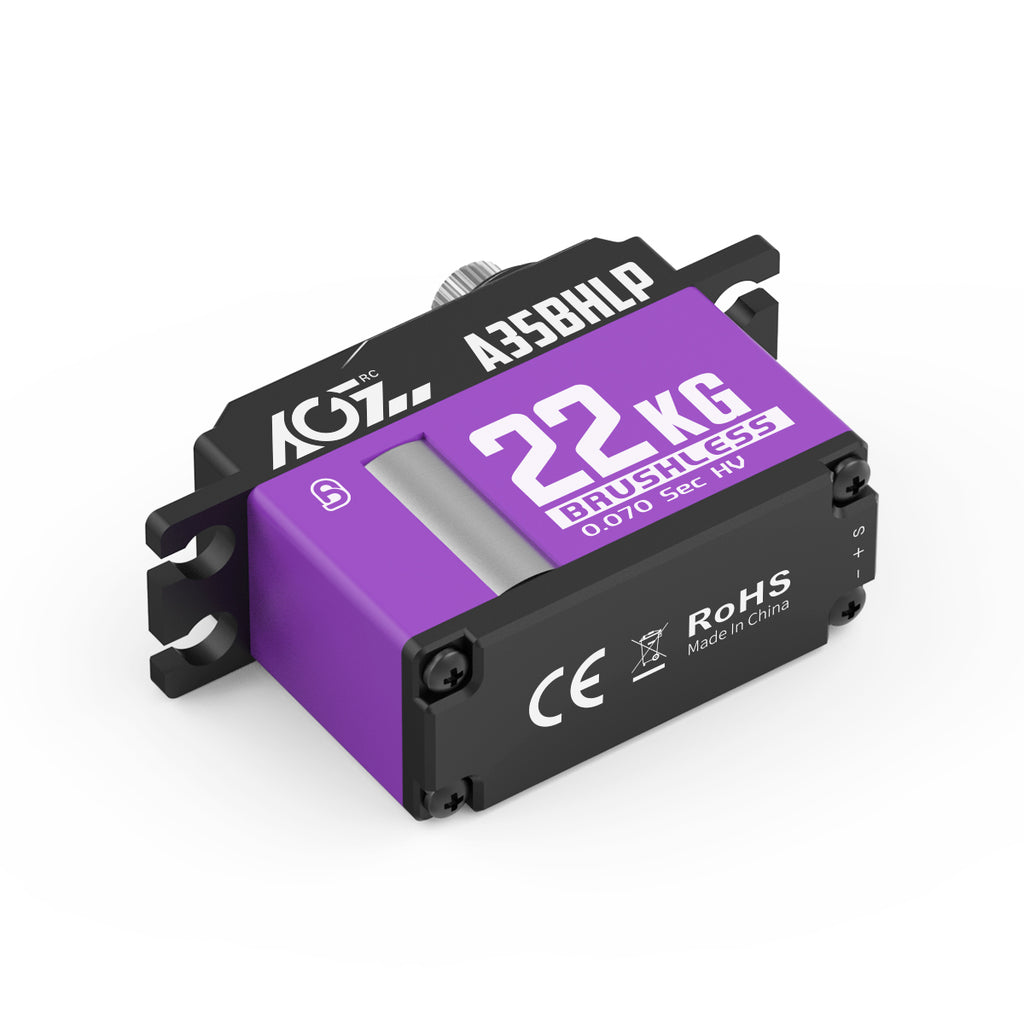

AGF midi servo A35BHLP 22KG steel gear

With the continuous optimization of the manufacturing technique, recently AGFRC servos bring more and more surprise.
The mini size servo A35BHLP with 15mm thickness can deliver 22KG super high torque now.
Completely upgrade from 16KG to 22KG for this middle class servo with PRO brushless motor.

Optimize from servo firmware to hardware, which with strong holding force in center position.
Mainly use for air applications, but also used in some competition cars, trucks and boats which with weight and dimension request.
It combines power, precision with speed. The impressive performance has been proved by some professional pilots.

Feature

Full Aluminum Case and Structure

15mm Mid Servo Class

Strong Holding Force

25T Standard Output Spline

2S LiPo Voltage Capable

Ideal for 1/12 Scale RC Cars, 3D Helicopters, Jet Airplanes, Glider, Car, Robot etc.

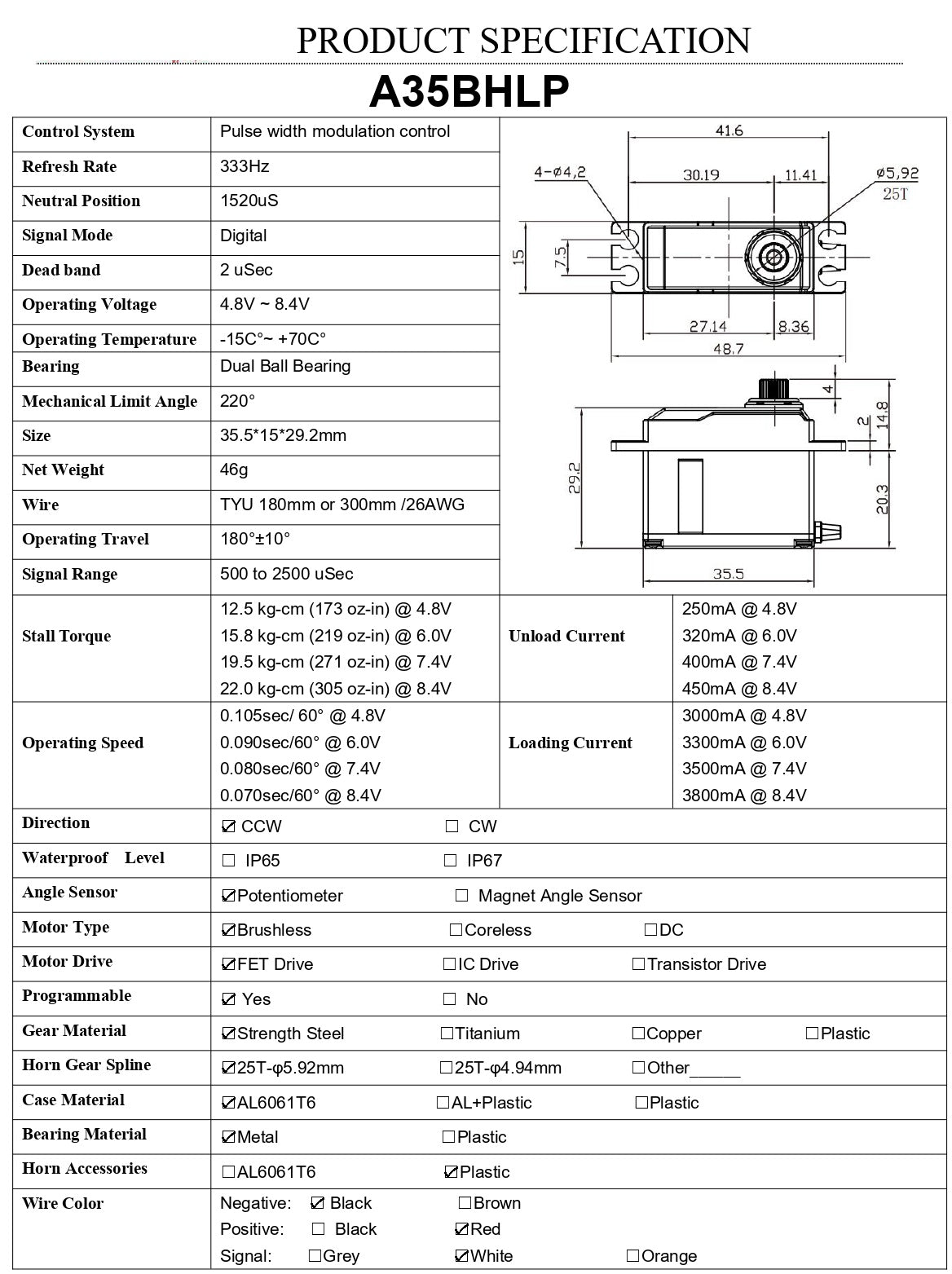

Specification

Model Name: A35BHLP

Operating Voltage: 4.8-8.4 V

Operating speed: 0.090sec/60° @ 6.0V

Operating speed: 0.080sec/60° @ 7.4V

Operating speed: 0.070sec/60° @ 8.4V

Stall Torque: 15.8 kg-cm (219 oz-in) @ 6.0V

Stall Torque: 19.5 kg-cm (271 oz-in) @ 7.4V

Stall Torque: 22.0 kg-cm (305 oz-in) @ 8.4V

Gear: Steel

Motor: Brushless

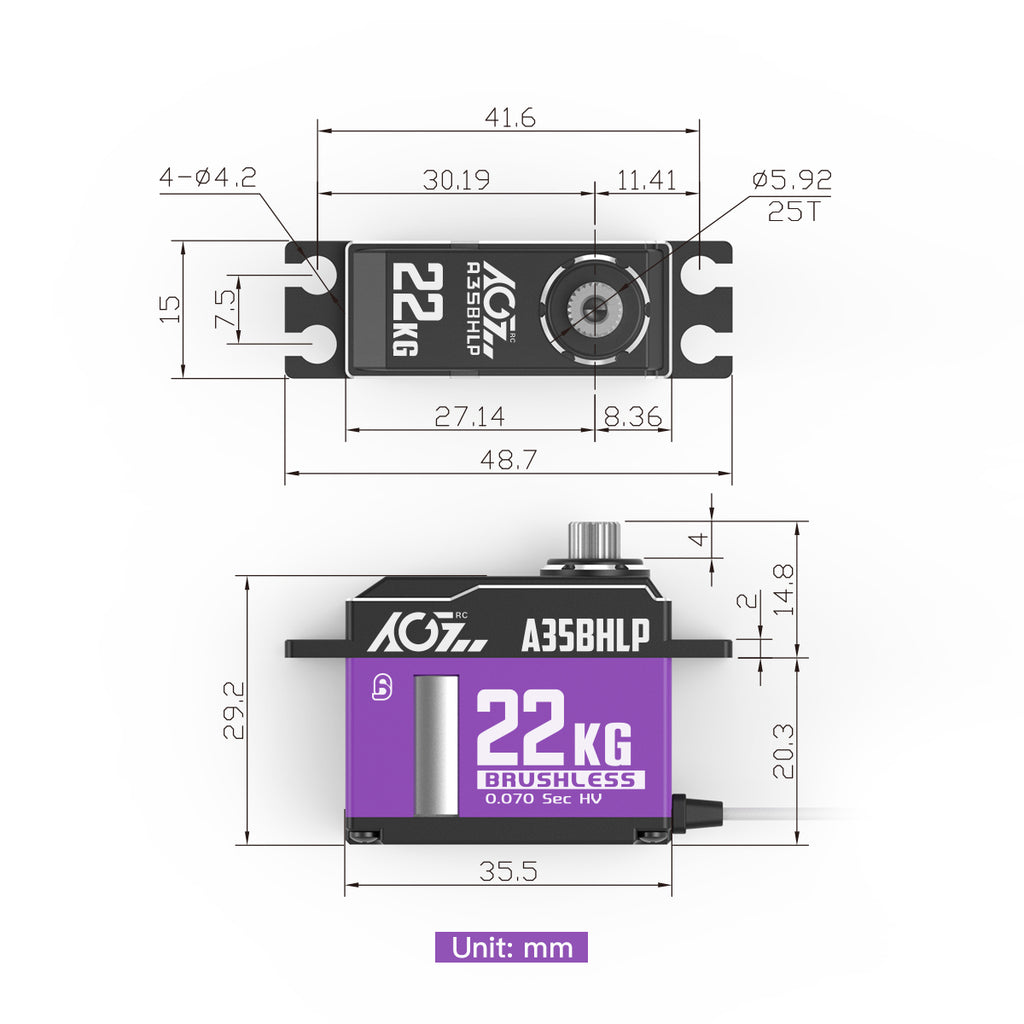

Size: 35.5*15*29.2mm (1.39 x 0.59 x 1.14 in)

Weight: 45g

Connector Wire: TYU 180mm or 360mm /22AWG
