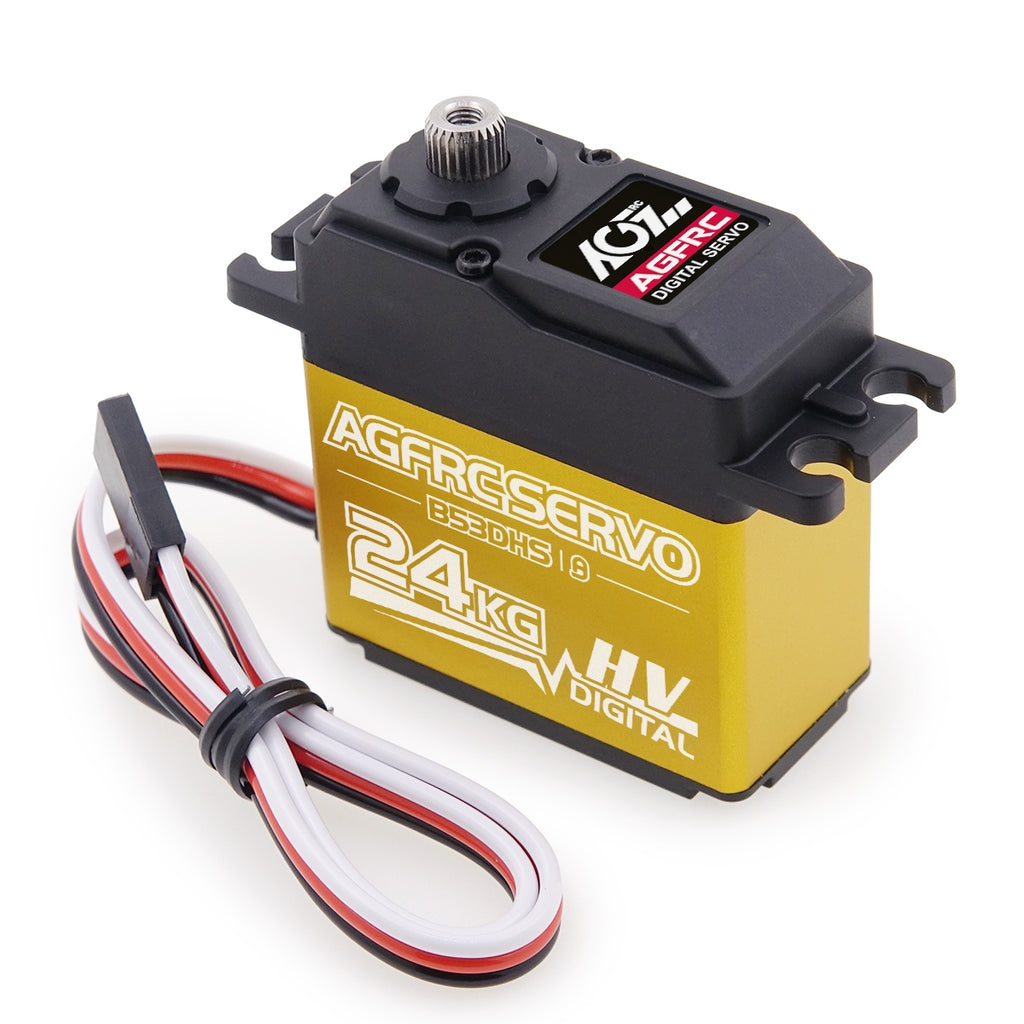

AGF B53DHS 24KG 8.4V HV digital Titatium gear, programmable servo
Feature
* Medium Aluminum Case
* 2S Lipo Wide Voltage Capable
* High Strength Titanium Gears
* Dust and Splash Resistant

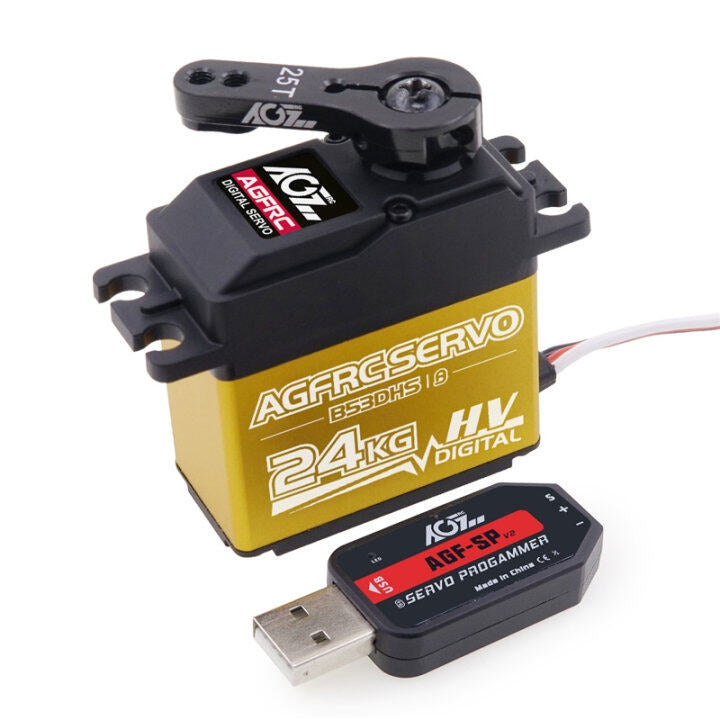

* Programmable Via USB Programmer. (USB tool not include) order HERE
Specification
Item name: B53DHS
Operating Voltage: 4.8-8.4V
Operating speed: 0.24sec/60° @ 4.8V
Operating speed: 0.22sec/60° @ 6.0V
Operating speed: 0.20sec/60° @ 7.4V
Operating speed: 0.19sec/60° @ 8.4V
Stall Torque: 17.0 kg-cm @ 4.8V
Stall Torque: 19.0 kg-cm @ 6.0V
Stall Torque: 21.5 kg-cm @ 7.4V
Stall Torque: 24.0 kg-cm @ 8.4V
Gear: Titanium
Motor: DC

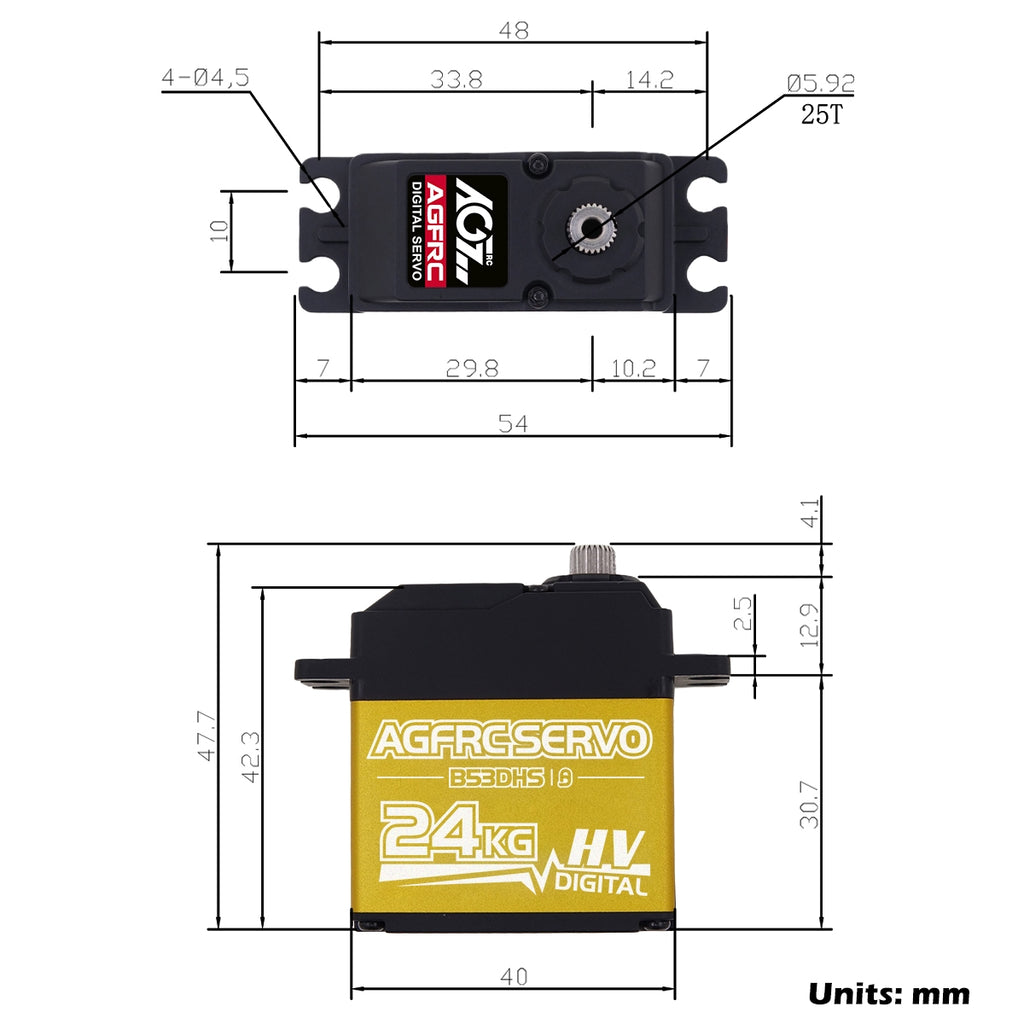

Size: 40*20*42.3mm
Weight: 63g
Connector Wire: JR 300 mm / 22AWG
B53DHS
Control System Pulse width modulation control
Refresh Rate 333Hz
Neutral Position 1520uS
Signal Mode Digital
Dead band 4 uSec
Operating Voltage 4.8V ~ 8.4V
Operating Temperature -15C°~ +70C°
Bearing Double Ball Bearing
Mechanical Angle 220°
Size 40*20*42.3mm
Net Weight 63g
Wire JR 300mm / 22AWG
Operating Travel 180°±10°
Signal Range 500 to 2500 uSec
Unload Current
500mA @ 4.8V
550mA @ 6.0V
600mA @ 7.4V
700mA @ 8.4V
Loading Current
2400mA @ 4.8V
2700mA @ 6.0V
2900mA @ 7.4V
3200mA @ 8.4V
Direction CCW
Angle Sensor: Potentiometer
Motor Type : DC
Motor Drive: FET Drive
Programmable: Yes
Gear Material : Titanium
Horn Gear Spline: 25T
Case Material: AL+Plastic
Bearing Material: Metal
Horn Accessories: Plastic
Wire Color Negative:Black
Positive: Red
Signal: White
