The next-generation Sbach 342 is here, This V2 design masterfully combines the legendary smoothness of the original 107″ Sbach with unmatched, modern Xtreme Aerobatics (XA) precision.

we have special modern scheme 10 design by Ryu Sintuphrom

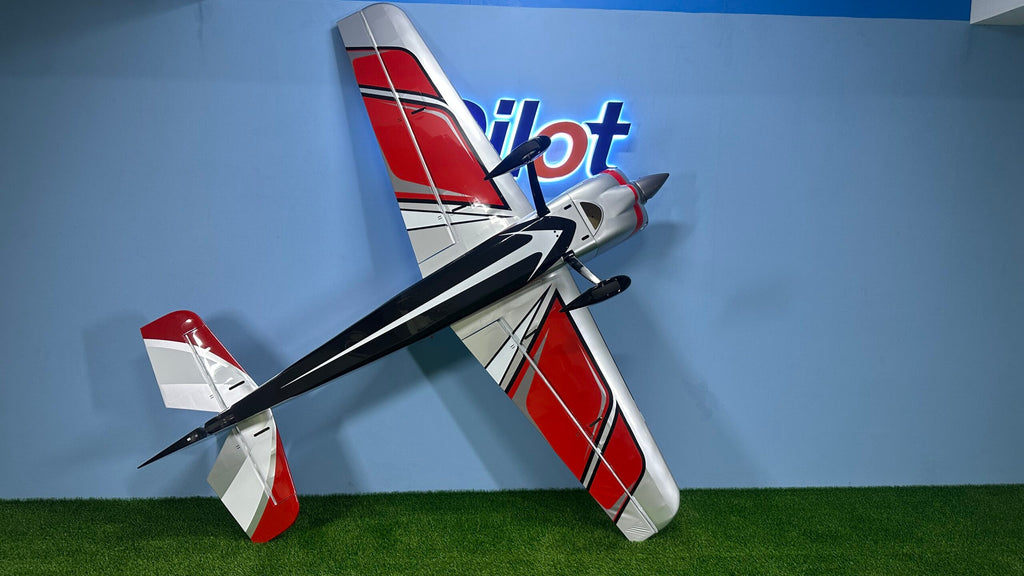

and 11 design by Joe Hampson

Constructed with a full airframe of new plywood, composite fiberglass, and carbon fiber—consistent with our current 3D aircraft—it is built for performance. After extensive testing and design refinements, we have perfected its flight characteristics.



FEATURES:

• Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
• Patented quick assembly system for wings,
• NEW! 2024 quick assembly system for Stabilizer no need tools anymore
•  Patented quick assembly system for canopy.
• NEW! Canopy pin more reliable fix it by Screw and New Material hole to stop vibration
• Film covering applied over a Genuine German Oracover (Ultracote) base
• Highly prefabricated, experienced builders can have air ready in under a day
• Pre-installed hinges (glued and pinned)
• Internally mounted cowling – so no visible external screws exposed
• Removable wings and stabs
• Laser engraved motor mounting position
• Easy canister installation due to open construction
• Pull push system for Rudder servo
• Removable landing gear sperate left and right side

Included hardware:

• Complete air frame with all basic accessories (such as carbon fiber main undercarriage, tail-gear assembly and wing-tubes as well as fiberglass control horns and wheel pants)
• “Spare” lower section cowl from transparent plastic – used to mark out correct location to cut the cowl for perfect fitting every time
• Pre-installed hinges and pre-mounted canopy
• Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• Wheels, axles and wheel pants
• Pre-prepared pushrods with ball links
• Matching color carbon spinner, 5″ and we also have special color scheme to purchase

Specifications:

Required hardware:

Motor: 100-130cc or equivalent electric

Servos: 5 high torque plus throttle // Uses x2 per aileron, x1 per elevator half and x1 on rudder

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

Extension wire lengths:

Throttle:
35cm

Each aileron:
25+75cm
(to reach receiver direct)

(nearest servo and furthest servo – to reach receiver direct)

Each elevator:
145cm

Rudder:
130cm

CENTER OF GRAVITY:

215mm
Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube,
which also shows the exact location for Center of Gravity.


A: 324mm, B: 325mm, C: 310mm, D: 325mm
